COLONY PRO
®
SINGLE CONTROL
KITCHEN PULL-OUT FAUCET
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Regular Screwdriver
1

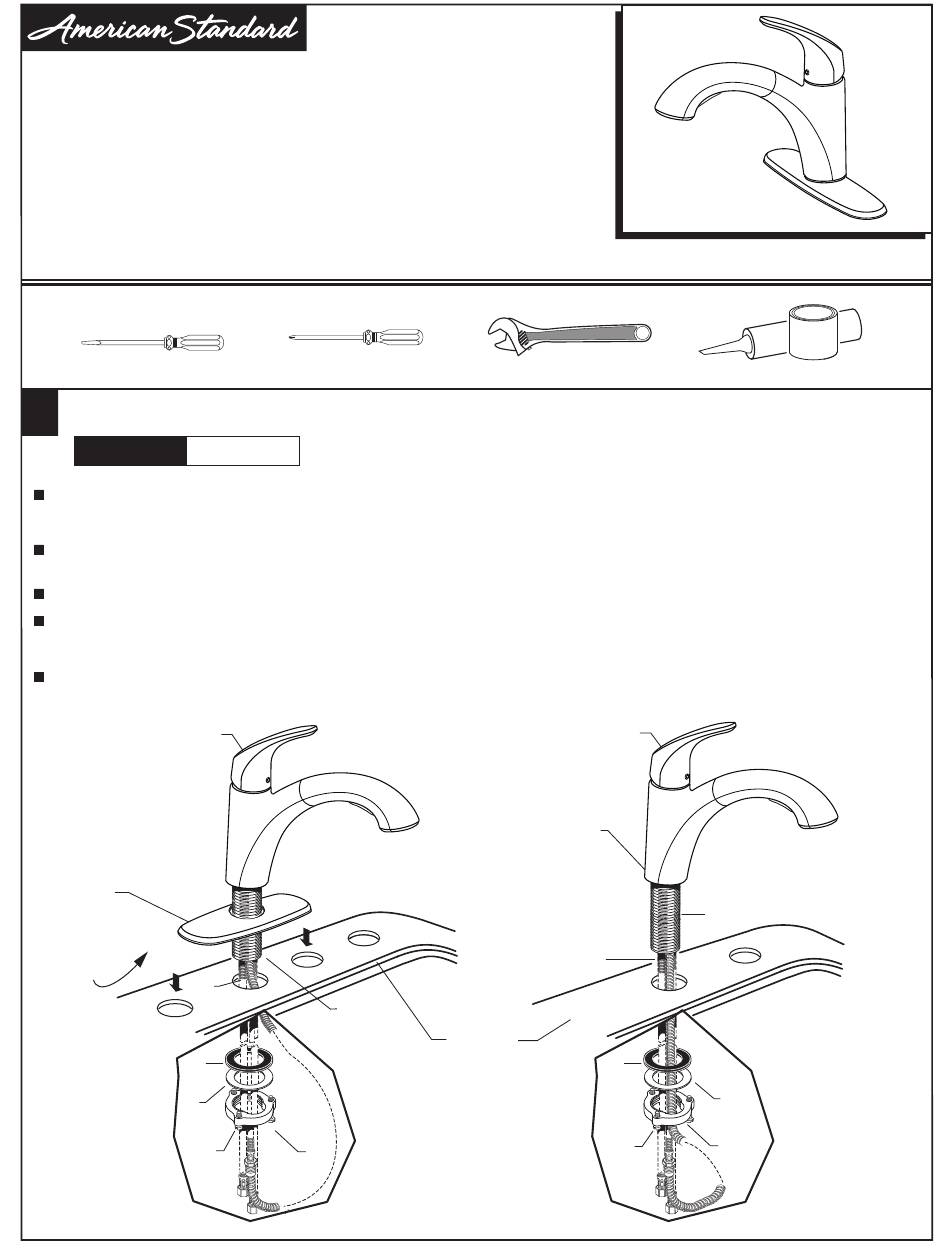

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
Turn off water at
CAUTION
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Insert supply HOSES (2) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting surface.
Follow mounting instructions below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1). Discard ESCUTCHEON with PUTTY PLATE (1).
SHANK (3) through mounting hole and
Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6) and check that rotation of HANDLE (7) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
1
P U T T Y
2
4
5
8
Phillips Screwdriver
main supply.
seat SPOUT BASE onto sink or mounting surface.
7
3
6
Installation
Instructions
7074.100
Adjustable Wrench
B
S P O U T B A S E
S I N K O R
M O U N T I N G
S U R FA C E
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
Insert supply HOSES (2) and
Do not use putty.
7
3
2
4
5
8 6
M965774 Rev. 1.2 (4/21)
