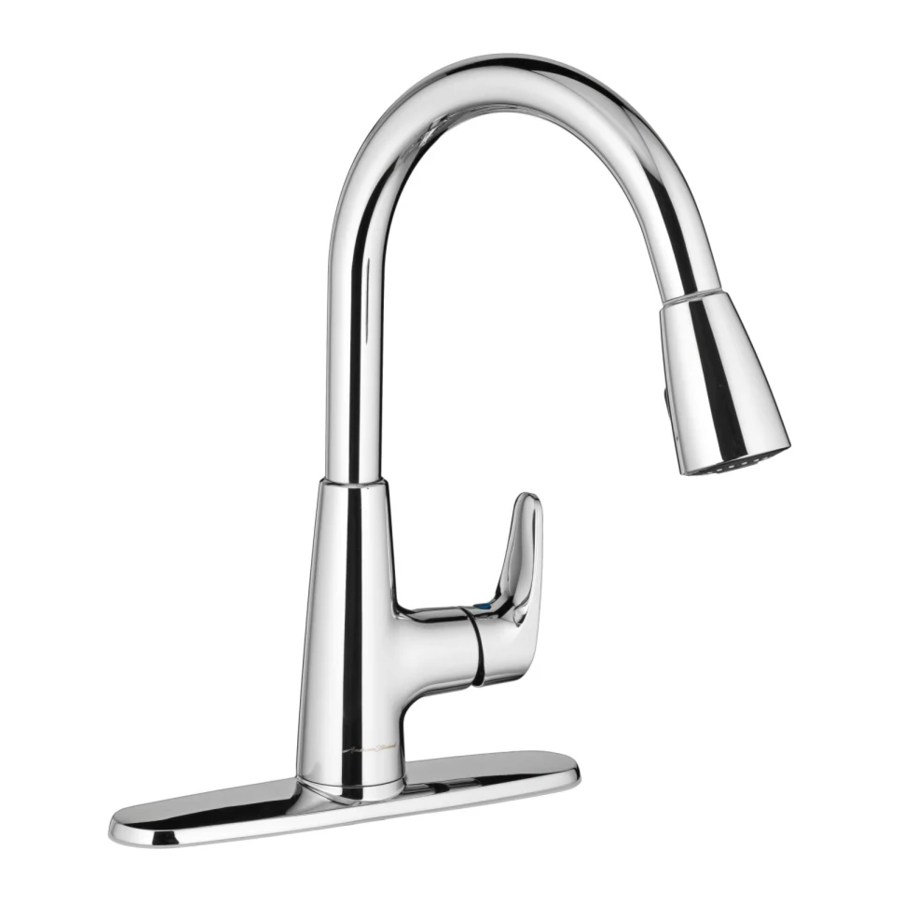

American Standard COLONY PRO 7074.300 Installation Instructions

COLONY PRO
®
Single Control Kitchen Faucet
With Pull Down Spray
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.

RECOMMENDED TOOLS

Flat Blade Screwdriver
1

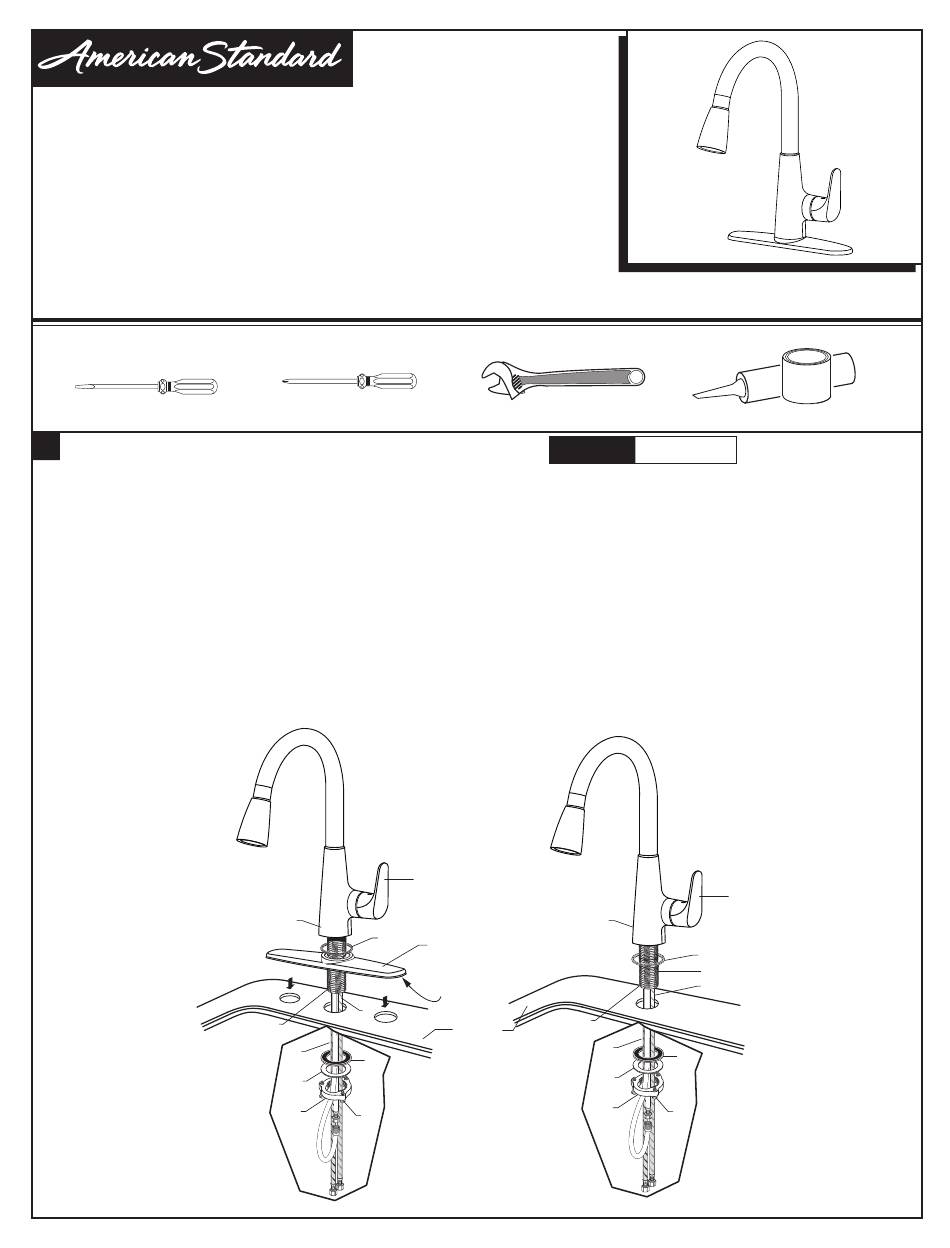

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON

• (A) Installation with ESCUTCHEON (1). (Escutcheon is not supplied with base product). Apply a bead of putty to bottom
edge of ESCUTCHEON with PUTTY PLATE (1). Make certain the SEAL (9) is properly seated in recess of faucet body. Insert
SUPPLY HOSES (2), SPRAY HOSE (7) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting
surface. Follow mounting instructions below to secure faucet to mounting surface.
• (B) Installation less ESCUTCHEON (1). Make certain the SEAL (9) is properly seated in recess of spout base. Insert supply
HOSES (2), SPRAY HOSE (7) and SHANK (3) through mounting hole and seat spout base onto sink or mounting surface.
Do not use putty.
• Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).
• Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside of sink
or mounting surface. Hand tighten LOCKNUT (6).
• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening the screws
slightly each time until all are snug to ensure even pressure.
A
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2020
Phillips Screwdriver
( O P T I O N A L )
S P O U T B A S E
9
2
3
7
4
5
6
8
INSTALLATION
INSTRUCTIONS
7074.300
Adjustable Wrench
CAUTION
B
7
S P O U T B A S E
1
P U T T Y
3
S I N K O R
M O U N T I N G
S U R FA C E
- 1 -
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
Turn off water at
main supply
7
9
3
2
7
4
5
6
8
M965767 Rev. 1.2 (1/20)
