Signal priority
The P-1 can be paired to an active C-1 Controller simultaneously as being connected to
cabled DMX. The fixture will prioritize cabled DMX over wireless DMX.

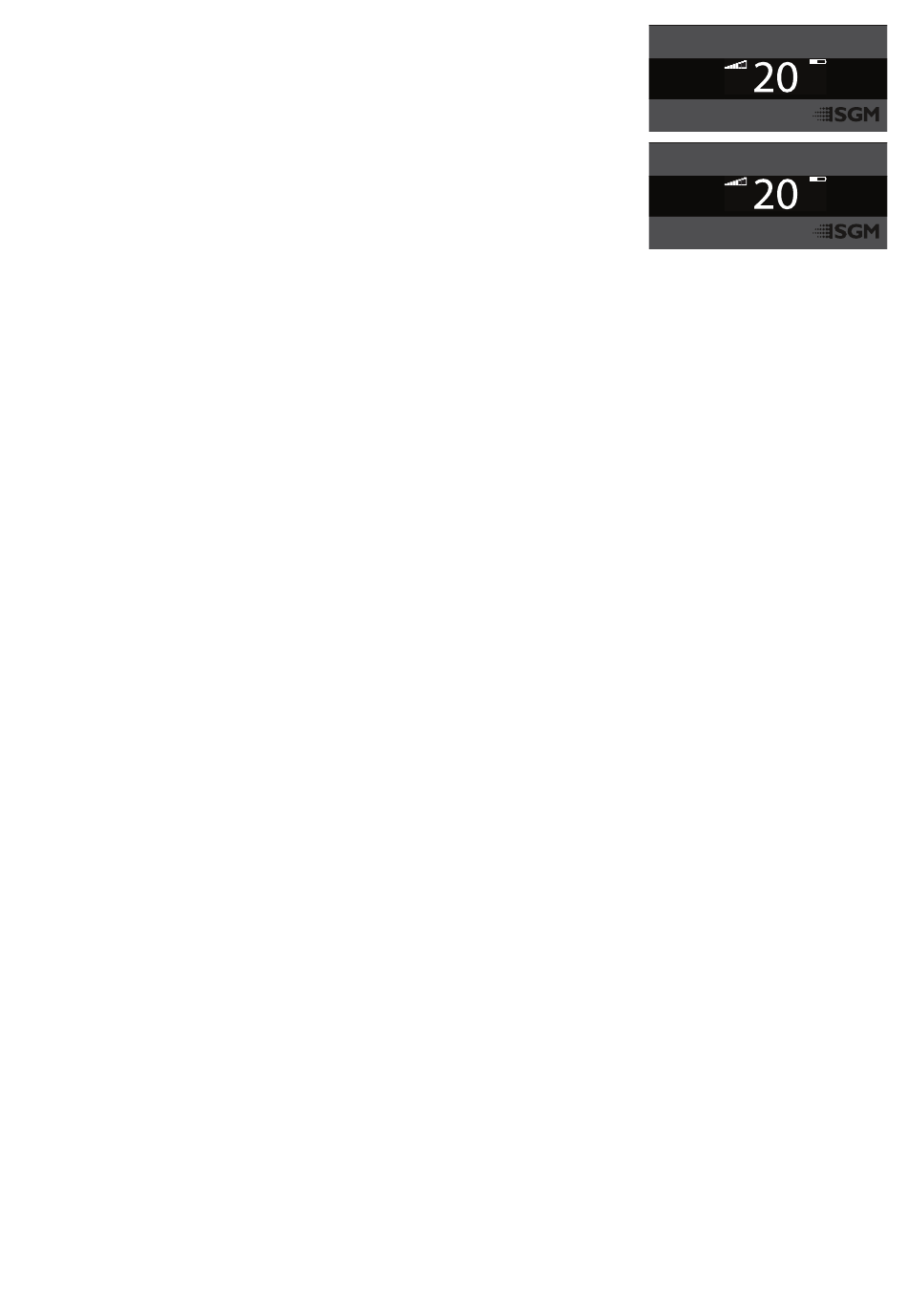

The operation mode is displayed under the wireless signal strength indicator.
Please note that this will not apply to manual operation mode. To receive CRMX, the fixture
has to be set to DMX mode. Any of the modes shown in the pictures on the right will override
the C-1 controller.
When in doubt about the current operation mode, restore the P-1 to factory defaults settings
by using the shortcut ESC+ENTER, and then confirm. By doing this the P-1 will set the cor-
rect DMX address and mode when connected to the C-1 controller.
Please note:
Any previous connected devices that are no longer connected are occupying a DMX slot for one fixture.
Any P-1 can still get the DMX address changed via the display and therefore be connected but not receiving DMX. To send
and re-transmit the RDM information stored in the C-1, simply powercycle the C-1.

Connecting the C-1 Controller to the SGM C-1 App

The C-1 Controller generates a local Wi-Fi hotspot to be connected to the SGM C-1 App through any smart-phone or tablet.
The SGM C-1 App is a user interface and all data, settings, scenes programmed, and connected devices are stored in the C-1
controller.
When using the SGM C-1 App, the Wi-Fi range is restricted to approx. 6m. (18 ft.) in line-of-sight. The CRMX range is depending on
the environment, capable of ranges up to 100m. The CRMX is wireless DMX based on the standard DMX 512-A, and is fully RDM
compatible, which means that the connected P-1 fixtures can return valuable sensor data to the SGM C-1 App.
Take the following steps to connect the SGM C-1 App to the C-1 Controller:
• Search for the SGM C-1 App in the Play Store (Android) or App Store (iOS) of your smartphone or tablet and an SGM A/S
App will appear.
• Download the SGM C-1 App on your smartphone or tablet. Make sure you have enough space on your device to install and
run the App.
• Before opening the SGM C-1 App, go to Wi-Fi settings on your smart device.
• Disconnect your smart device from any Wi-Fi connections. For a better operation, we recommend not only to disconnect but
also to forget any Wi-Fi networks. This way your device will be connected only to the C-1 controller, ensuring the control of
the luminaires.
• Select the network with the name "SGM C-1". You will also see 4 numbers/letters in the name of the network. These will vary
depending on the C-1 device you are using.
• Type the 8-digit password "sgm12345" to establish connection between the C-1 controller and the app (it is possible to
change the default password in the app - see page10). Now the smart device should be connected to the C-1 Controller's
Wi-Fi network.
• Open the SGM C-1 App on your smart device. You will be able to see the P-1 fixture(s) connected. A picture will appear and
also the names "Fixture XX" where "XX" indicates the DMX number.
The next pages will show in detail the menu and all SGM C-1 App features.
(26)
QUICK
PROGRAM
Figure 9: Signal priority
