LED Status indicator (C)
The C-1 controller has a status diode to show the current state or function.
Static green
Status OK and operating normally
Static yellow/orange
Startup, reset or low battery
Static red
Error
Connecting the P-1 to the C-1 controller
The P-1 is controllable due to the C-1 inbuilt RDM (Remote Device Management) auto setting, which ensures the DMX address is set
when connected to the C-1. The P-1 connects to the C-1 via the LumenRadio CRMX wireless receiver system. When using the C-1
wireless DMX system, ensure that the DMX chassis connectors are properly covered.
Connecting the SGM C-1 controller
The P-1 is designed to look for wireless transmitters in "connect" state, when not already paired to one. If a P-1 has previously been
connected to the C-1 controller, it will appear in the SGM C-1 App due to its unique RDM ID, which it is stored in the C-1 controller.
This means that a single P-1 can be left out in one event, and put back in another without loosing its DMX address and all stored
scenes.
Note that any previously connected device stored in the C-1 is occupying the DMX slots. To remove the fixture(s) and release the
DMX slots, please use the SGM C-1 App (see how on page 11). There is no button function to remove a stored fixture directly from
the C-1 controller.
Connecting the P-1 to the C-1 controller
•
Ensure the P-1 device(s) is/are logged off any wireless transmitter and not in any
manual mode.
•
Push and hold the function button of the C-1 controller for 3 seconds to connect the
unlinked fixtures to the C-1 controller. If any fixture is paired with another transmitter,
the fixture must first be unlinked from wireless DMX.
•
Confirm that the fixture is paired with the wireless transmitter, going to MENU →
SETTINGS → WIRELESS DMX → STATUS (see figure 9).
•
After approx. 90 seconds the fixtures should be addressed and ready for operation.
Auto addressing and mode setting
When the P-1 is connected, the device will automatically get information via RDM to set the correct address and DMX mode to be
controlled via the SGM C-1 App. The C-1 Controller will send commands until all connected fixtures are addressed correctly and are
in the right mode. All available fixtures can be seen in the SGM C-1 App (see on page 11).
Please note that if the fixture is in any other mode than DMX it is not possible for the C-1 controller to make use of the auto addressing
and mode function.
Disconnecting a P-1 from any wireless transmitter
To disconnect the fixture from any currently paired wireless transmitter:
•
Go to MENU → SETTINGS → WIRELESS DMX → LOG OFF.
8

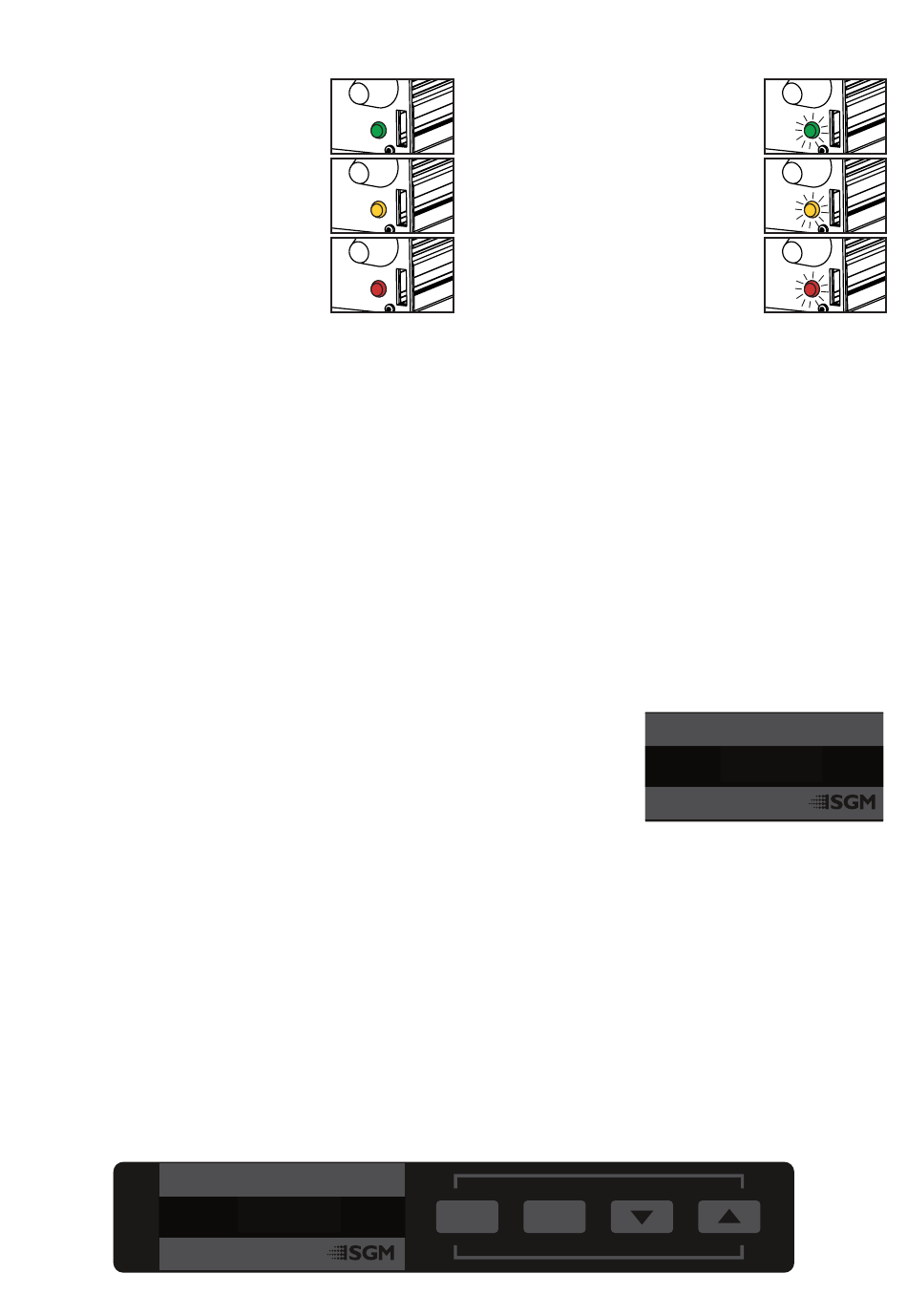

Figure 6: LED Status indicator
Shortcut to unlink a P-1 from any transmitter
ESC + DOWN: "Press 'ENTER' to unpair CRMX"
Press Enter to
Unpair CRMX
Figure 8: Disconnect the fixture from wireless transmitter
Blinking green
Connecting CRMX
Blinking yellow/orange
Resetting Wi-Fi
Blinking red
Resetting box
ESC
ENTER
SIGNAL STRENGTH: 96%
CRMX PAIRD: YES
DMX Active : YES
Figure 7: Wireless DMX status
