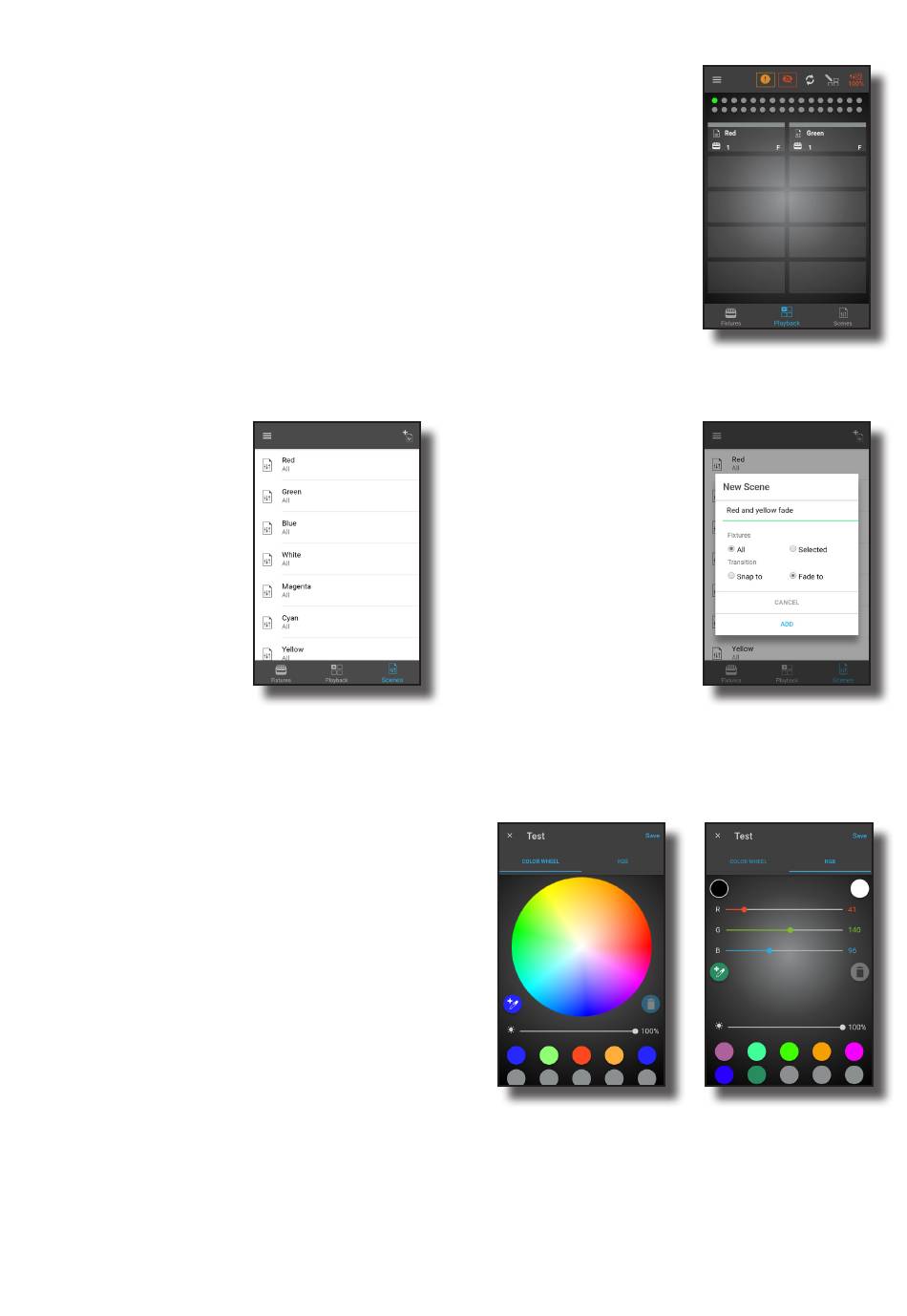

SGM C-1 Controller App overview - IV

By pressing the "!" button for 5 seconds, the fixtures will enter in emergency mode. In this mode, the
fixtures will switch on all LEDs to their maximum output. This mode was created as a quick and easy
way to override all the scenes for safety reasons.
By pressing the eye symbol, the fixtures will enter in blind mode. Both the eye symbol and the
percentage in the top right corner will turn red to indicate that blind mode is active. This feature allows
the user to create a quick blackout or to edit and move scenes without controlling the luminaires. While
in the blind mode, it is still possible to see which color will appear in the fixtures after the mode has been
switched off (green in the picture).
To update the Playback, simply press the refresh symbol so it matches your most recent changes.
Scenes
To create your customized color presets, go to Scenes section in the app.
Scenes
All scenes are stored here.
To add a new scene press the icon
on the top right hand corner.
To EDIT or DELETE a scene,
press and slide the scene to the
left, and the options appear.
A scene can be stored to be
applied to all fixtures or only to
selected fixtures.
Scene Editor - Color Wheel and RGB
After having a scene created, you can start editing the content. To do
so, simply select either the color wheel or RGB editor according to your
preference. Both editors have the ability to store multiple colors in the
color swatch palette at the bottom. The colors will either snap or fade
depending on the setting of the scene.
If the scene is set to all fixtures, you may start editing scenes through
the scene editor. If the scene is set for selected fixtures, a new dialogue
box will appear with the message "Scene is empty. Start by adding a
fixture or a group". Just press the "+" symbol and select the fixtures.
Right next to the color wheel (or below the RGB editor), there is a color
picker (purple and green respectively in the pictures). If you press the
color picker, the chosen color will be added to the palette at the bottom.
This is useful when creating other scenes, so the same color is always
available. To delete a color stored in the pallet, just select the color sample and delete it using the trash bin symbol.
Both scene editors have a selectable dimming bar to save the scene with a specific light output level. Note that only one color can
be selected per scene.
After editing, press "Save" in the top right corner.
Please note: All information upon the SGM C-1 Controller App is subject to change without notice.
Emergency and Blind Modes
Creating Scenes
To add a scene, press the top right
icon.
Type the Scene Name as desired,
and choose to which fixtures the
scene should be applied.
It's also possible to choose if the
scene will "Snap to" (no fading
time between scenes) or "Fade to"
(include a fading between scenes;
fading time possible to be configured
in the "Playback" section.
After pressing ADD, the scene will
be available in the "Scenes" main
display, and indicates if this scene
will be applied to all fixtures or se-
lected fixtures.
13
