- Page 1 TLD-612A Artnet Pixel Driver...
- Page 2 TLD-612A dimensions...
- Page 3 The SGM logo, the SGM name and all other trademar s in this document pertaining to ser ices or products by SGM or its af liates and subsidiaries are trademar s o ned or licensed by SGM or its af liates or subsidiaries.
-
Page 5: Table Of Contents
Contents Safety information....................6 Overview........................8 Cabling and connections ..................9 Rigging the TLD-612A ....................11 Connecting AC power .................... 13 Connecting LED pixels ..................15 Con guring the device using an Android telephone via R D ....... 16 Service........................17... -
Page 6: Safety Information
WARNING! Read the safety precautions in this section before installing, powering or operating this product. The TLD-612A is intended for professional use only. It is not suitable for household use. Review the following safety precautions carefully before installing or operating the device. - Page 7 WARNING! Take measures to prevent personal injury. • Install only in a well-ventilated space. • Do not paint, cover, or modify the device. • Take precautions to prevent injury due to falls when working at height. • Ensure that the device is always securely fastened with suitable hardware. •...
-
Page 8: Overview

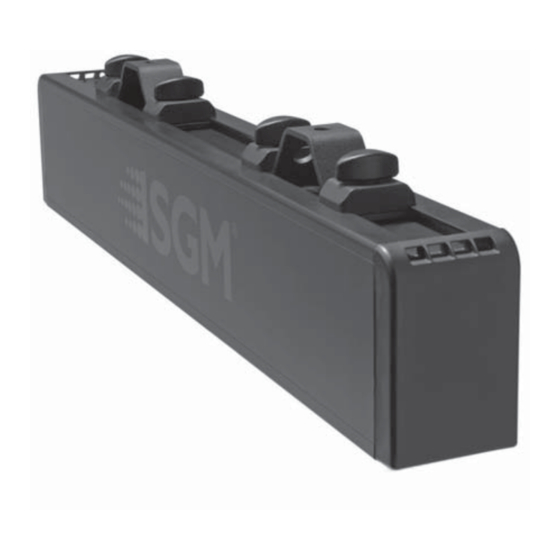

Overview The TLD-612A is an Artnet pixel driver that can be used to drive six SGM LT-100s, six SGM LT-200 or six strings of SGM LED Ball pixel luminaries (each string can contain up to 56 led balls), or any combination of the three product types. Up... -
Page 9: Cabling And Connections
Cabling and connections... - Page 10 The following connectors are used on the TLD-612A • I 67-rated R 45 Ethernet connectors, for artnet input and output. • 3 lead power cable for power input and output with CEE cord caps. • 6 x R 765 output connectors supply 12V DC power and data to the LED products.
-
Page 11: Rigging The Tld-612A
Work area below is blocked from public access and make sure the work is performed from a stable platform. When using more than one TLD-612A to create an LED curtain, ensure that the TLD-612As are installed so that the correct pixel pitch can be achieved. - Page 12 12 cm pixel pitch. Connect and arrange the power and data cables. asten the TLD-612A securely to a xed surface or structure, ensuring that the supporting structure and or hardware used can hold at least 10 times the weight of all the devices they support, as well as all installed accessories.
-
Page 13: Connecting Ac Power
TLD-612A to the AC mains supply The device must be grounded earthed and be able to be isolated from AC power. The AC power supply must... - Page 14 Daisy-chain power to other TLD-612As When daisy-chaining TLD-612As using the cables that are pre-installed in the TLD-612A • @ 230VAC, 13A, up to 8 TLD-612As can be daisy-chained. • @ 115VAC, 13A, up to 4 TLD-612As can be daisy-chained. ower in...
-
Page 15: Connecting Led Pixels
Connecting LED pixels The TLD-612A can drive six SGM LT-100s, six SGM LT-200 or six strings of SGM LED Ball pixel luminaries (each string can contain up to 56 led balls), or any combination of the three product types. These can be attached in any arrangement to the six output connectors on the TLD-612A. -
Page 16: Con Guring The Device Using An Android Telephone Via R D
As an alternative to connecting the device to power and using the G Artnet on gurator, one or more TLD- 612A devices can also be con gured wirelessly, via R ID, using the SGM Tool app (available from the Google lay Store) installed on an Android smart phone that has C support (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 M... -
Page 17: Service
Service There are no user-serviceable components inside the device. Do not open the TLD-612A, as doing so is likely to damage its ingress protection. Consult your SGM dealer if the device operates abnormally, is defective or otherwise in need of service or repair. -
Page 18: Speci Cations
Speci cations PHYSICAL Length x width x height ................. 715 x 80 x 182 mm (28.2 x 3.2 x 7.2 in.) Weight ...............................4 kg (8.8 lbs) CONSTRUCTION ousing ................................ Aluminum inish ........................Black electrostatic powder coating INSTALLATION Orientation ................................Any Minimum distance to combustible materials ..................... - Page 19 Artnet data input output ..2 x I 67-rated Avnet Abacus R -45 female sockets ( BE R S-5E -SC7002) ixel luminaire connections ....6 x R 765 connectors, compatible with SGM LT-100, LT-200 and LED Balls ELECTRICAL AC power ............................ 100 240 V, 50 60 Maximum total power consumption (full load) ....................
- Page 20 TYPICAL POWER AND CURRENT 230 V, 50 ..........................310 W, 1.36 A, 0.99 240 V, 50 ..........................310 W, 1.30 A, 0.99 APPROVALS Safety ................................. EN 60950-1 EMC ............................EN 55103-1 , EN 55103-2 Speci cations subject to change without notice...
- Page 21 USER’S NOTES...
