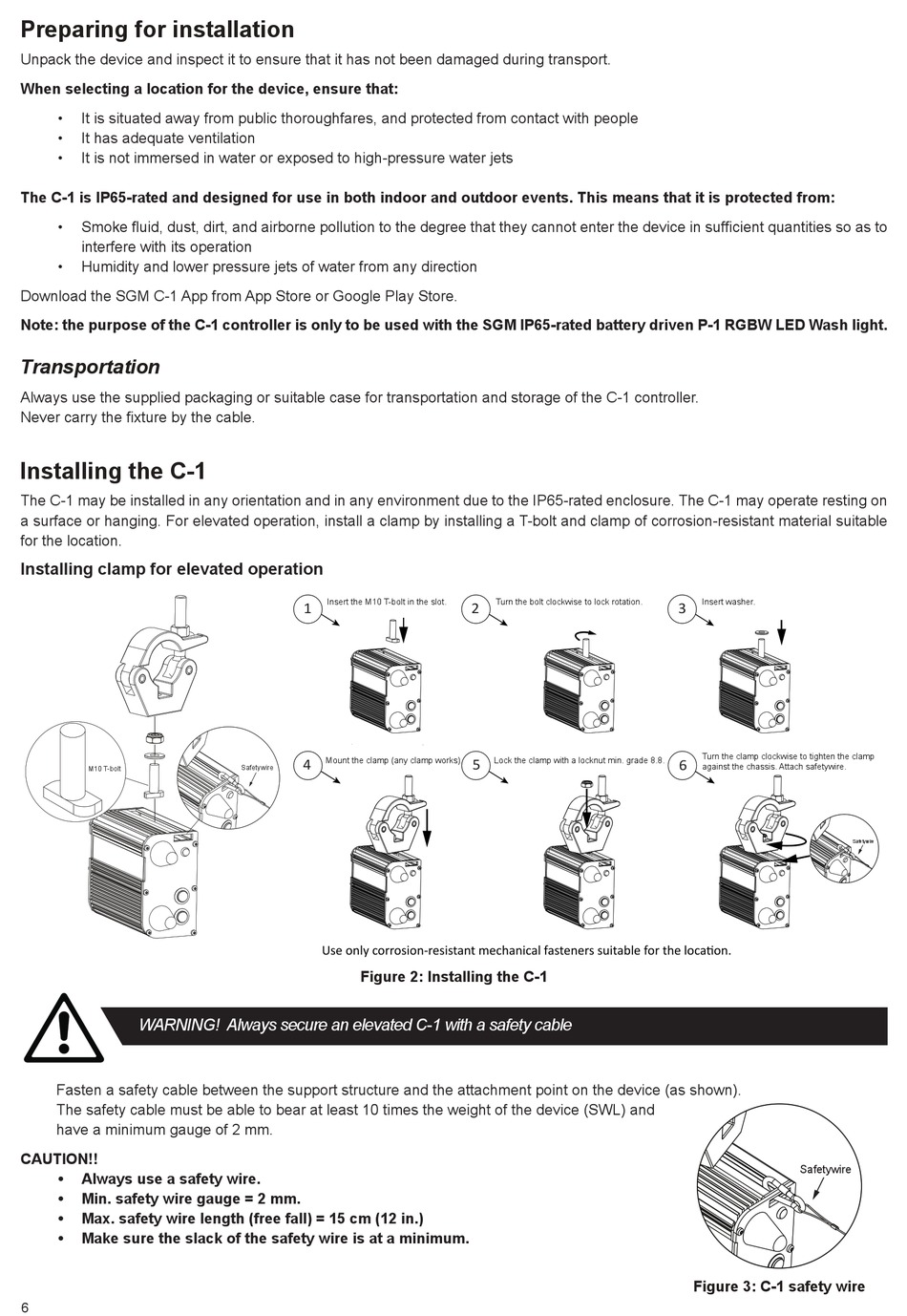

Preparing for installation

Unpack the device and inspect it to ensure that it has not been damaged during transport.
When selecting a location for the device, ensure that:
• It is situated away from public thoroughfares, and protected from contact with people
• It has adequate ventilation
• It is not immersed in water or exposed to high-pressure water jets
The C-1 is IP65-rated and designed for use in both indoor and outdoor events. This means that it is protected from:
• Smoke fluid, dust, dirt, and airborne pollution to the degree that they cannot enter the device in sufficient quantities so as to
interfere with its operation
• Humidity and lower pressure jets of water from any direction
Download the SGM C-1 App from App Store or Google Play Store.
Note: the purpose of the C-1 controller is only to be used with the SGM IP65-rated battery driven P-1 RGBW LED Wash light.
Transportation
Always use the supplied packaging or suitable case for transportation and storage of the C-1 controller.
Never carry the fixture by the cable.

Installing the C-1

The C-1 may be installed in any orientation and in any environment due to the IP65-rated enclosure. The C-1 may operate resting on
a surface or hanging. For elevated operation, install a clamp by installing a T-bolt and clamp of corrosion-resistant material suitable
for the location.
Installing clamp for elevated operation
M10 T-bolt
WARNING! Always secure an elevated C-1 with a safety cable
Fasten a safety cable between the support structure and the attachment point on the device (as shown).
The safety cable must be able to bear at least 10 times the weight of the device (SWL) and
have a minimum gauge of 2 mm.
CAUTION!!
• Always use a safety wire.
• Min. safety wire gauge = 2 mm.
• Max. safety wire length (free fall) = 15 cm (12 in.)
• Make sure the slack of the safety wire is at a minimum.
6
Insert the M10 T-bolt in the slot.
1
4 Mount the clamp (any clamp works)
Safetywire
Use only corrosion-resistant mechanical fasteners suitable for the location.
Insert the M10 T-bolt, turn it clockwise to lock rotation. Insert washer and mount the clamp.
Figure 2: Installing the C-1
Insert locknut and turn the clamp cloxkwise to tighten the clamp securely down against the chassis.
Attach a safetywire.
Turn the bolt clockwise to lock rotation.
2
D 5 Lock the clamp with a locknut min. grade 8.8.
Insert washer.
3
Turn the clamp clockwise to tighten the clamp
6
against the chassis. Attach safetywire.
Safetywire
Figure 3: C-1 safety wire
Safetywire
