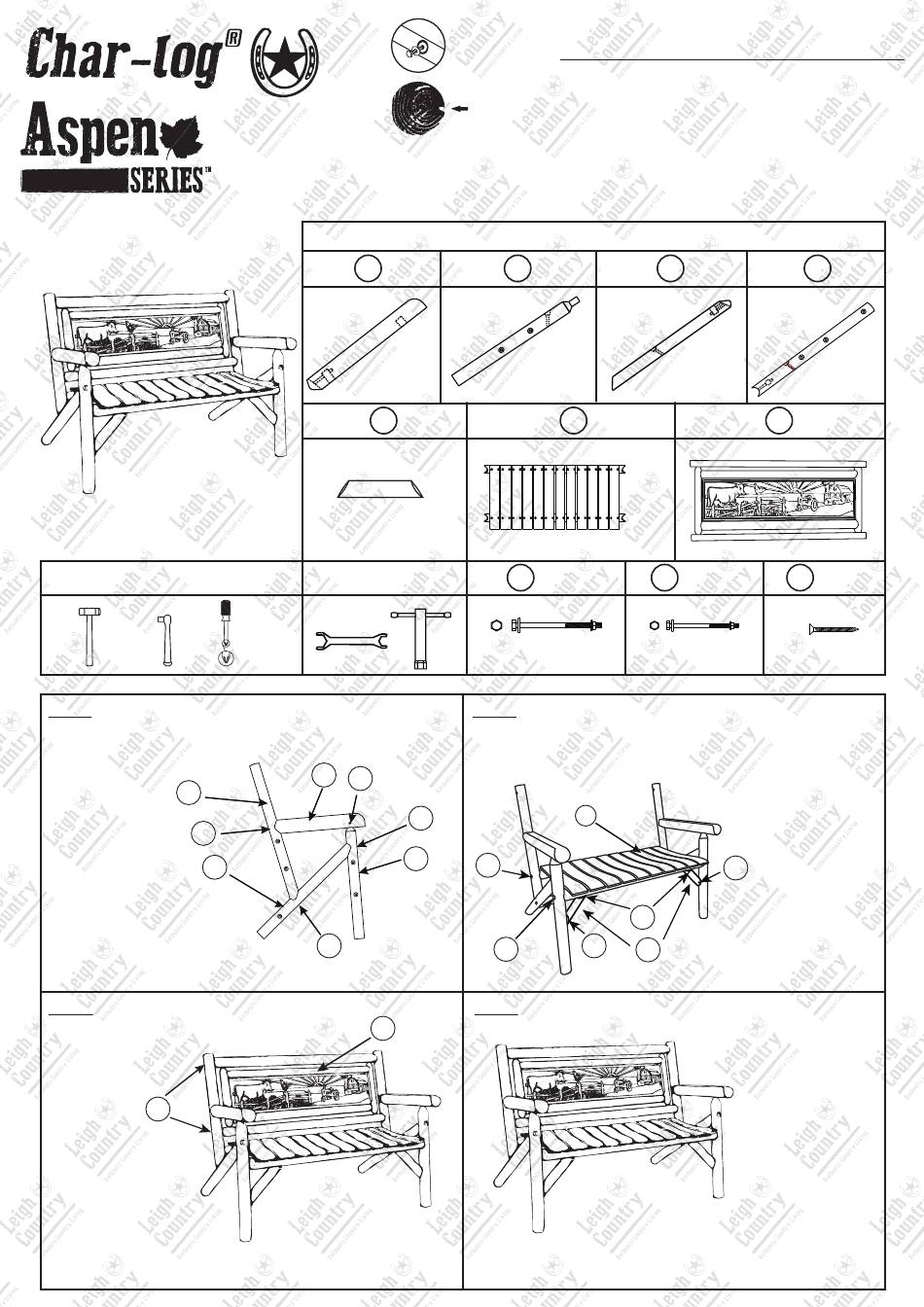

Leigh Country Aspen Series Manual

Double bench with aluminium insert

Advertisement

Quick Links

Tools required for assembly

Socket & Wrench
13mm
Mallet
STEP 1:
Assembling the Rocker Arm Frame
Take one piece of the following parts with a letter "R" behind
each number: 1 , 2 , 3 , 4 , 8 ("R" = Right)
1: Part 1 to part 4
4
2: Part 3 to part 2
3: Part 2 to part 1
4: Part 4 to part 3
A
3
Use indicated hardware, directed
by diagram.
REPEAT steps 1 through 4 above using parts
labeled with a letter "L" ("L" = Left) after the part number.
STEP 3:
Assembling the Upper Half
Once the bottom half is finished,
take the BACK PANEL (7) and
place it gently on part 4 of the
arm frame.
A
Secure with indicated hardware
in the diagram.
DOUBLE BENCH with ALUMINUM INSERT
ITEM # TX 51029
1
ARM REST
X 2PCS
5
DIAGONAL BEAM

Tools included

Phillips
Screwdriver
1
C
B
7

IMPORTANT: READ CAREFULLY BEFORE BEGINNING

Recessed Hole
1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
Pre-Checked
4. Pre-checked side must always face downward or inward.

PARTS AND HARDWARE LIST

2
FRONT LEG
X 2PCS
6
SEAT
X 2PCS
A
N08-14
NUT & BOLT
X 12PCS
STEP 2:
Assembling the Bottom Half
Take assembled SEAT PANEL (6) and one of the arm frames, keep the arm frame
standing and attached the SEAT PANEL (6) to the inside of the arm frame, secure
with the indicated nuts and bolts.
Right
6
A
2
A
A
STEP 4:
Finish
3
DIAGONAL SUPPORT
VERTICAL SUPPORT
X 2PCS
BACK
X 1PC
B N08-11
NUT & BOLT
X 2PCS
Left
Insert the other arm frame
C
on the other side and
secure loosely with
nuts and bolts.
C
Take the Diagonal Beam (5)
and secure under the seat
C
5
between the arm frame
with nuts and bolts.
Tighten all nuts, bolts,
and screws once
every part and
assembled pieces
are in place.
Congratulations
on your assembly!
4
X 2PCS
7
X 1PC
C
S04-4
SCREW
X 8PCS
