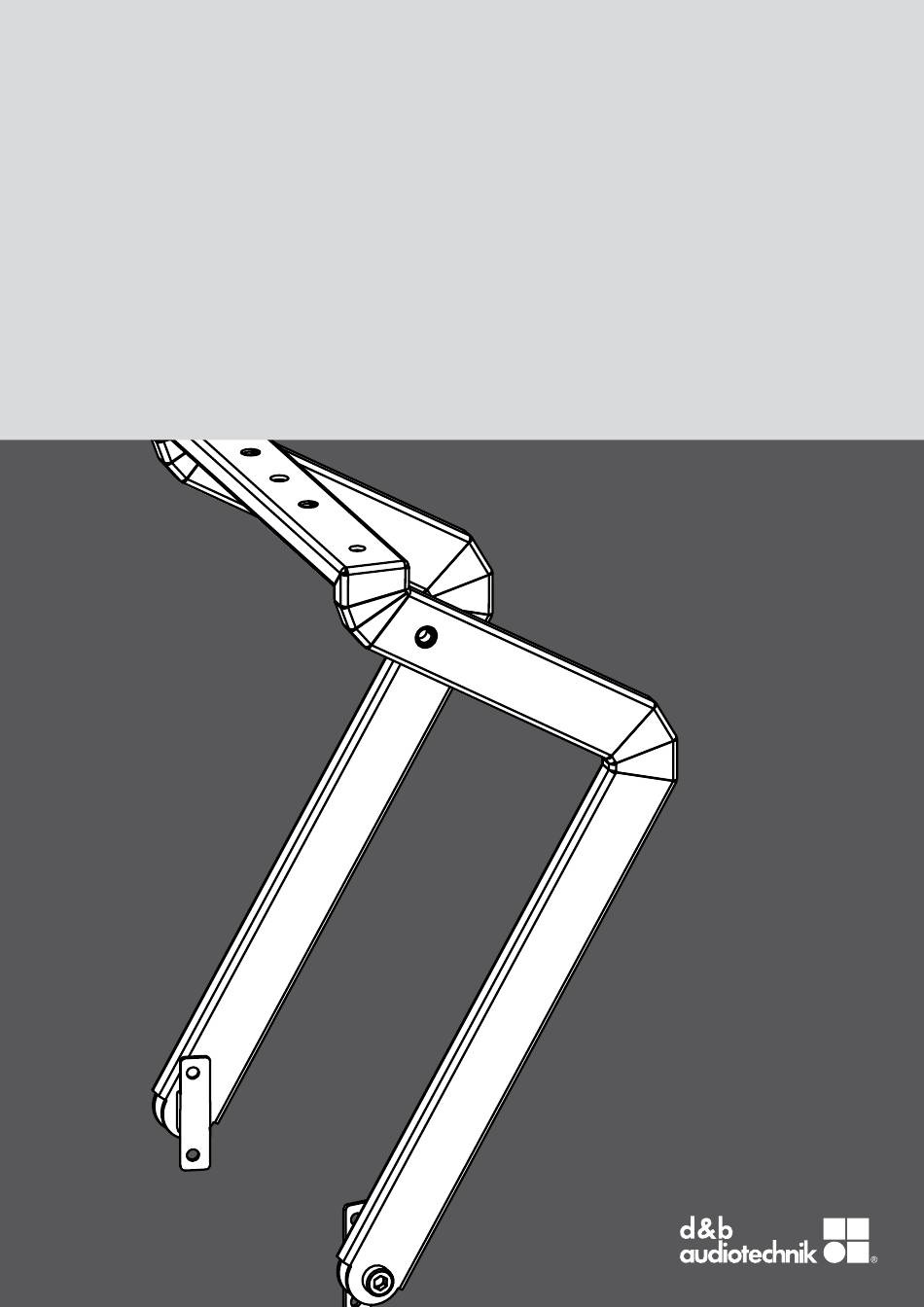

- Page 1 Z5553 Mounting instructions 1.2 en...
- Page 2 General information Z5553 Mounting instructions Version: 1.2 en, 03/2017, D2626.EN .01 Copyright © 2017 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this document to the new owner.
-
Page 3: Table Of Contents
Contents Z5553 Flying bracket 24S..........4 1.1 Scope of supply and weight............4 1.2 Safety precautions..............4 1.3 Intended use................5 1.4 Mounting options and angle settings........5 1.5 Assembly..................5 1.6 Adjustments................. 6 Z5553 Fixing template............7 Built-in dimensions............... 8 Declarations................ -
Page 4: Z5553 Flying Bracket 24S
Z5553 Flying bracket 24S 1.1 Scope of supply and weight Please verify the shipment for completeness and proper condition of the items. Qty. d&b Code Description Z5553 Flying bracket 24S [1] Including: Hex head bolt M10 x 25 [2] Q3051.003.00 Spring washer M10 [3] Q5301.000.00 U washer 10.5 [4]... -
Page 5: Intended Use
1.3 Intended use The d&b Z5553 Flying bracket 24S must only be used in conjunction with d&b 24S or 24S-D cabinets. The tie bar of the bracket is supplied with two M8 threaded inserts at the standard d&b spacing (115 mm/4.5") to accept the following accessories: The bracket can be: ▪... -
Page 6: Adjustments
Preparing the cabinet The threaded inserts of the cabinet are covered by dummy caps in cabinet color. To remove the caps, proceed as follows: 1. Cut out the caps along the recessed spline using an appropriate cutting knife. 2. Carefully take off the caps and ensure the cabinet coating is not peeled off. -
Page 7: Z5553 Fixing Template
Z5553 Fixing template Z5553 Fixing template - Scale 1:2 d&b Z5553 Mounting instructions 1.2 en... -
Page 8: Built-In Dimensions
Built-in dimensions Z5553 Flying bracket 24S, built-in dimensions in mm [inch] Built-in dimensions Z5010/Z5012 assembly d&b Z5553 Mounting instructions 1.2 en... -
Page 9: Declarations
Declarations 4.1 Manufacturer's declaration This declaration covers: ▪ d&b Z5553, Flying bracket 24S. National standards and technical specifications applied: DIN 18 800, DIN 1055, DGUV Vorschrift 17. Backnang, 2016-09-07 Frank Bothe, Chief Technology Officer (CTO) d&b audiotechnik GmbH & Co. KG 4.2 Disposal When out of use the rigging components must be disposed of in accordance with the national environmental regulations. - Page 10 www.dbaudio.com...
