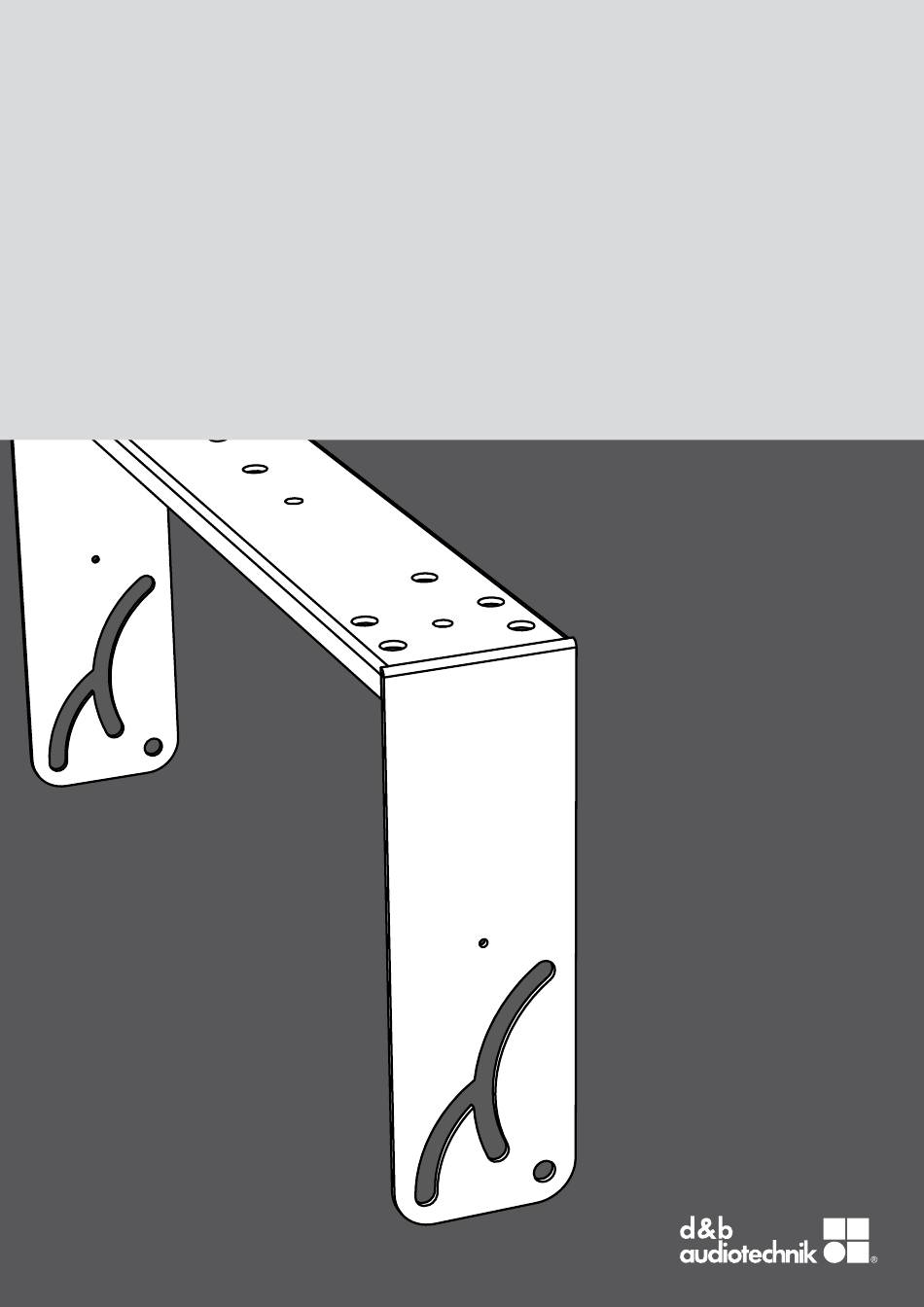

- Page 1 Z5388 Mounting instructions 1.2 en...
- Page 2 General information Z5388 Mounting instructions Version: 1.2 en, 04/2020, D2823.EN .01 Copyright © 2020 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this document to the new owner.
-
Page 3: Table Of Contents
Contents Z5388 VP Horizontal bracket......... 4 1.1 Scope of supply and weight............4 1.2 Safety precautions..............4 1.3 Intended use................5 1.4 Mounting options and angle settings........5 1.5 Assembly..................6 Fixing template..............8 Built-in dimensions............... 9 Manufacturer's declaration........... 11 4.1 EU conformity (CE symbol)............ -
Page 4: Z5388 Vp Horizontal Bracket
Z5388 VP Horizontal bracket 1.1 Scope of supply and weight Please verify the shipment for completeness and proper condition of the items. Qty. d&b Code Description Z5388 VP Horizontal bracket [1] Including: Hex head bolt M10 x 25 [2] Spring washer M10 [3] U washer 10.5 [4] Rubber pad [5] D2823.EN .01... -
Page 5: Intended Use
1.3 Intended use The d&b Z5388 VP Horizontal bracket must only be used in conjunction with d&b V-Point or Vi-Point cabinets (V7P/V10P or Vi7P/Vi10P) as described in these mounting instructions. The bracket can be: ▪ directly mounted to walls. ▪ directly mounted to ceilings or other suitable surfaces. ▪... -
Page 6: Assembly
Option 2 The bracket is attached to the cabinet with hole [a] facing to the back of the cabinet. One bolt is fitted into hole [a] and the second one is fitted into the axis of slot [b] and slot [c] to allow the bolt to move in slot [c]. - Page 7 Attaching the cabinet to the bracket NOTICE! Only use the supplied and specified screws [2], otherwise there a risk of damaging the threaded inserts. Always use the spring washers [3] and U washers [4] to prevent the bolts from slackening. Always place the rubber pads [5] between the bracket and the cabinet to prevent the cabinet coating from scratching during assembly and adjustment.
-
Page 8: Fixing Template
Fixing template Z5388 Fixing template d&b Z5388 Mounting instructions 1.2 en... -
Page 9: Built-In Dimensions
Built-in dimensions Z5388 Mounting options 1,2 and 3 with built-in dimensions in mm [inch] Built-in dimensions Z5010/Z5012 Assembly d&b Z5388 Mounting instructions 1.2 en... - Page 10 Z5388 Dimensions in mm [inch] d&b Z5388 Mounting instructions 1.2 en...
-
Page 11: Manufacturer's Declaration
Manufacturer's declaration 4.1 EU conformity (CE symbol) This declaration applies to: d&b Z5388 VP Horizontal bracket manufactured by d&b audiotechnik GmbH & Co. KG. All product variants are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications. - Page 12 www.dbaudio.com...
