Interlogix Learn Mode Water Resistant Pendant Panic Button Installation Instructions

Learn Mode Water Resistant Pendant Panic
Button Installation Instructions

Introduction

This panic button can be used throughout the premises for
police, medical, or auxiliary alarm activation. When the sensor
button is pressed, the built-in transmitter sends a signal to the
panel (Figure 1 below).

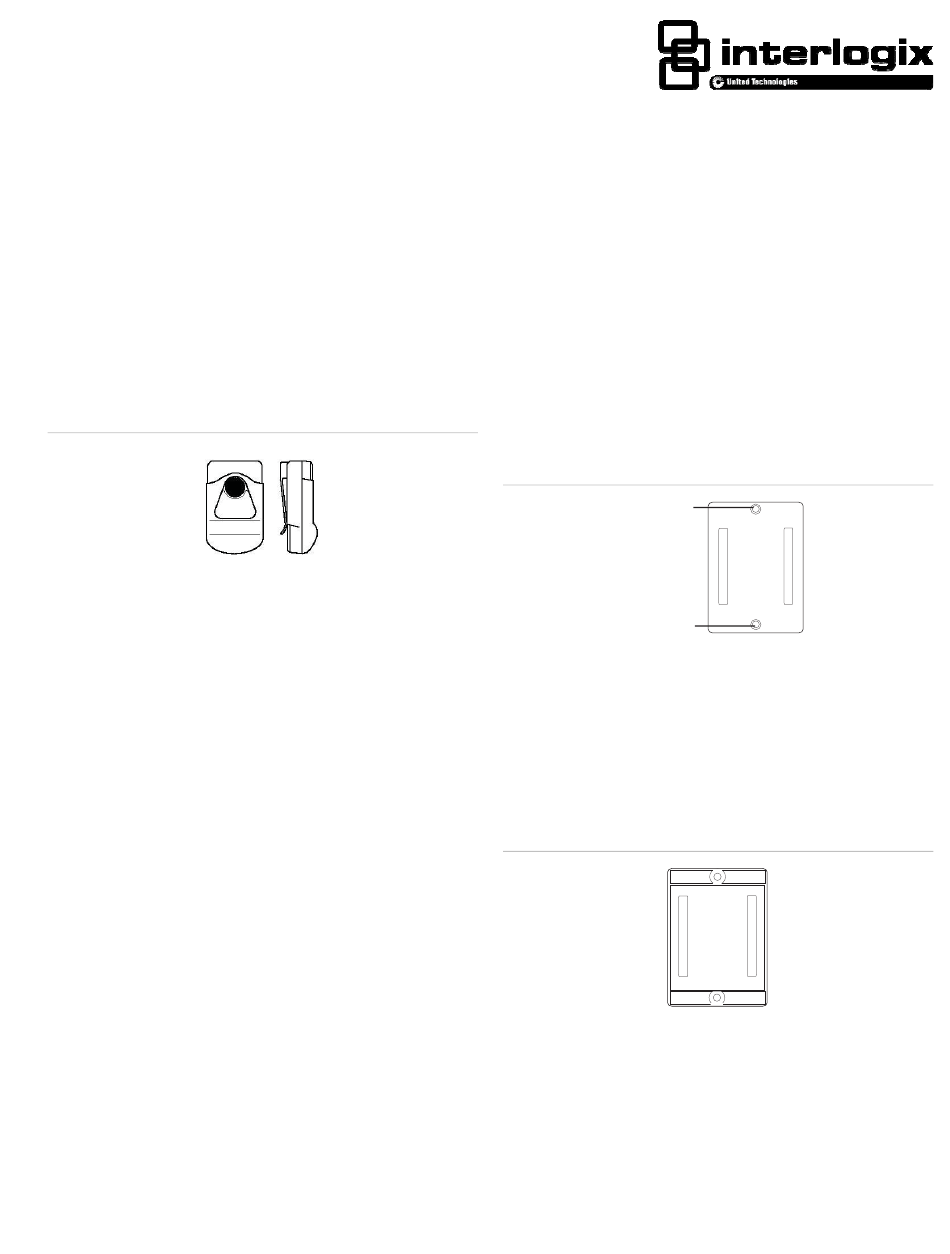

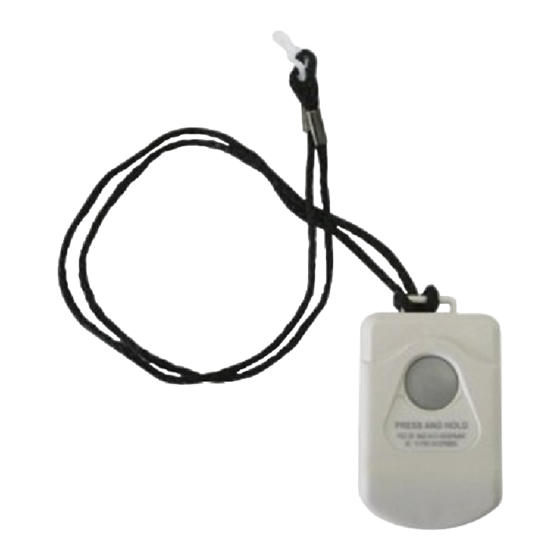

Figure 1: 60-578 Pendant Panic Button
The water-resistant design helps prevent damage in case the
sensor accidently gets wet.
The sensor can be worn using the built-in belt clip or it can be
mounted on a wall in a location convenient for the customer,
using the optional wall-mount holder (kit number 80-116). Each
kit includes the following:
• 5 wall-mount holders;
• 5 pieces of double-sided tape;
• 10 plastic anchors; and
• 10 Phillips-head screws.
You will also need a small Phillips screwdriver (if installing the
optional wall-mount holder).

Installation guidelines

Use the following guidelines when installing this button:
• The transmitter in the button has an open-air range of up
to 1,000 ft. (305 m), but the installation environment may
influence this range.
• When mounting on a wall, determine the best location for
each panic button so it is easily accessible.
• The 3.5 VDC lithium battery will last at least 12 months.
P/N 46-667 • REV J •23APR14

Installation

You can mount the optional wall-mount holder, using anchors
and screws or double-sided tape.
To mount the holder with anchors and screws:
1. Place the holder on the wall at the desired location and
mark the mounting holes with a pencil (Figure 2 below).
Figure 2: Mounting with screws
Mounting hole
Mounting hole
2. Secure the holder to the wall with the screws supplied.
Use the anchors supplied where studs are not present.
To mount the holder with double-sided tape:
1. Peel off the colored backing from the double-sided tape
and place it on back of the holder (Figure 3 below).
Figure 3: Mounting with double-sided tape
2. Peel off the other backing and firmly press the holder
against the mounting surface.
Affix
tape
here
