- Page 1 FieldServer ENOTE ProtoNode, ProtoCarrier or ProtoCessor Recovery Instructions Document Revision: 1.A Date: 7/18 T18060...

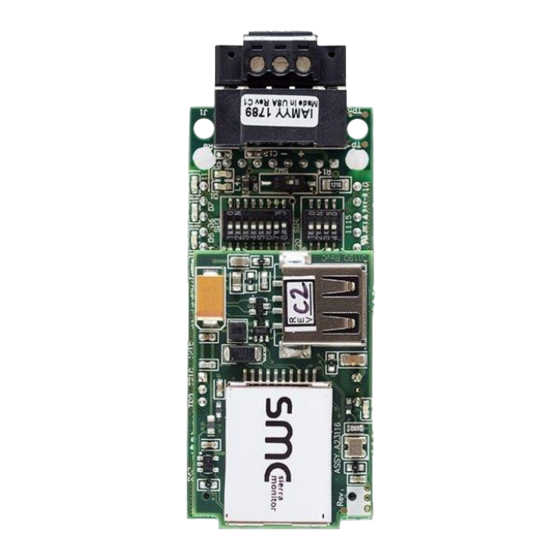

- Page 2 FS ENOTE WHEN TO PERFORM A RECOVERY Perform the following recovery if unable to connect to a FieldServer. The following recovery instructions only apply to FieldServer ProtoNodes, ProtoCarriers or ProtoCessors of model type 2. If the FieldServer was received before June 2018, the FieldServer is model type 1. However, model type 1 FieldServers are still being shipped so a visual check of the ProtoCessor board is needed to confirm the model type of a FieldServer.
- Page 3 FS ENOTE RECOVERY INSTRUCTIONS • Put a jumper on the first and second pins shown on the left side of the Ethernet port as shown below: ProtoNode with Jumper Set for Recovery • Wait for 1 to 2 minutes for the Run LED to start flashing. NOTE: See Run LED location below: LED Locations for Standard (Left) and LonWorks (Right) ProtoCessors •...
-
Page 4: Technical Support
FS ENOTE Technical Support Thank you for purchasing the FieldServer from Sierra Monitor Corporation. Please call us for any technical support needs related to the FieldServer product. Sierra Monitor Corporation 1991 Tarob Court Milpitas, CA 95035 Website: www.sierramonitor.com U.S. Support Information: +1 408 964-4443 +1 800 727-4377 Email:...
