USER'S MANUAL
VKM 100
VKM 100 Q
VKM 125
VKM 150
VKMS 150
VKM 160
VKMS 160
VKM 200 Q
VKM 200
VKMS 200
Centrifugal inline fan
VKM 250 Q
VKM 250
VKM 315
VKMS 315

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VKM 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Vents VKM 100

Summary of Contents for Vents VKM 100

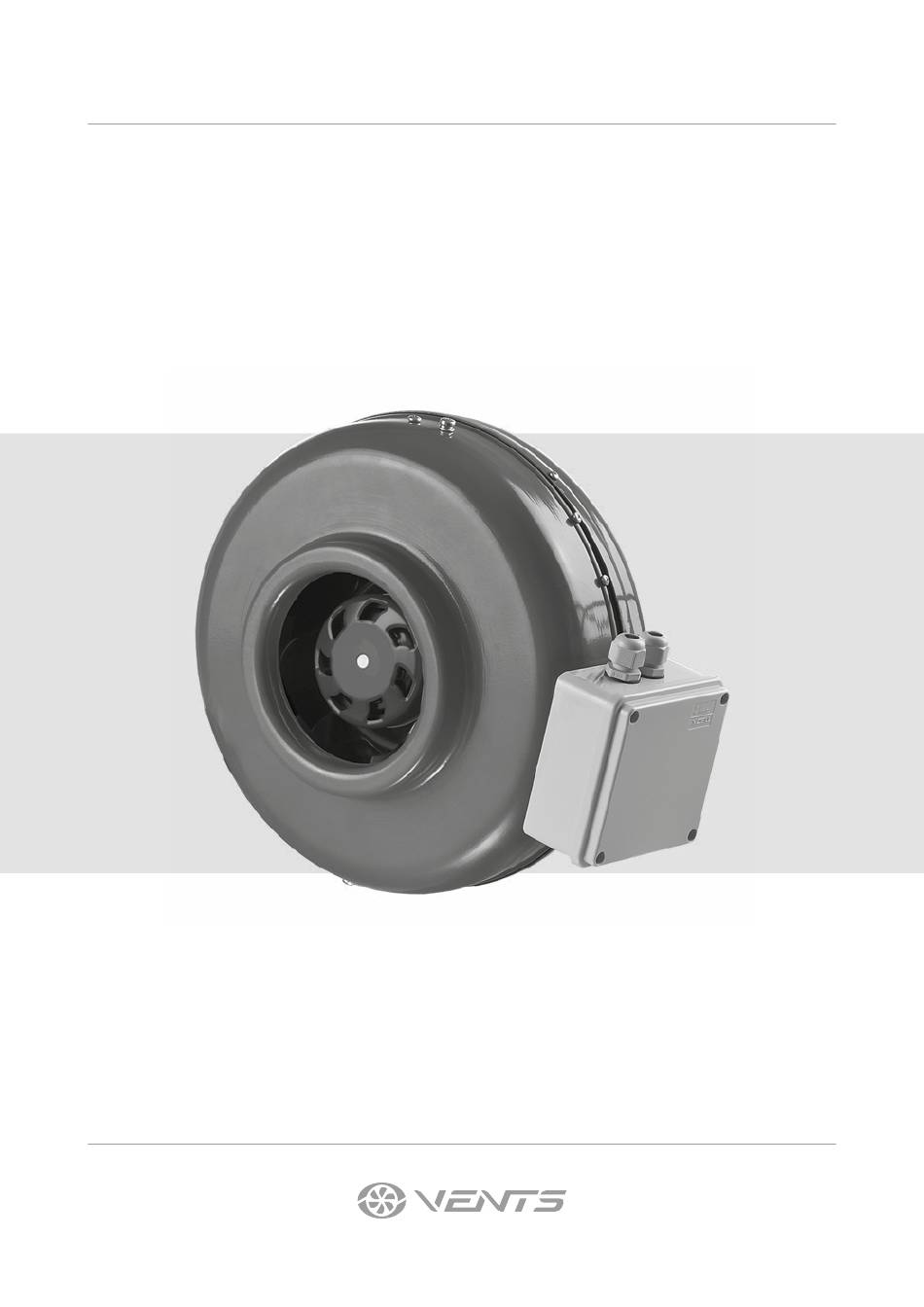

  • Page 1 USER’S MANUAL VKM 100 VKM 160 VKM 250 Q VKM 100 Q VKMS 160 VKM 250 VKM 125 VKM 200 Q VKM 315 VKM 150 VKM 200 VKMS 315 VKMS 150 VKMS 200 Centrifugal inline fan...

  • Page 2: Table Of Contents

    Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
  • Page 3 The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands.

  • Page 4: Purpose

    PURPOSE The VKM centrifugal fans are designed for ventilation of domestic, public and manufacturing premises heated during winter. The transported air temperature must be within the limits stated in the «Technical data» section. The fan is designed for horizontal or vertical mounting in an air duct and is used both for supply and exhaust ventilation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).

  • Page 5: Technical Data

    The unit design is constantly being improved, thus some models, their wiring diagrams and terminal symbols may be slightly different from those described in this manual. Overall and connecting dimensions Dimensions [mm] Model В В1 VKM 100 VKM 100 Q VKM 125 VKM 150 VKMS 150 VKM 160 VKMS 160 VKM 200 Q VKM 200...

  • Page 6: Design And Operating Principle

    DESIGN AND OPERATING PRINCIPLE The fan consists of the casing 1, the electric motor attached to the inner fixing bracket 4, the cover 2 that is fixed to the casing with screws 3 (the casing spigot diameter and the cover diameter are equal to the connected air duct diameter), the terminal box 5 that incorporates a terminal block and a capacitor and enables connection of the fan to single-phase power mains.

  • Page 7: Connection To Power Mains

    CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.

  • Page 8: Technical Maintenance

    TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION. The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. Use a soft dry brush or a vacuum cleaner to remove dust. The impeller blades require thorough cleaning once in 6 months.

  • Page 9: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 10 www.ventilation-system.com...

  • Page 11: Certificate Of Acceptance

    CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal inline fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 12 V05-3EN_A4_stkr-02...

This manual is also suitable for:

Vkm 100 qVkm 125Vkm 150Vkms 150Vkm 160Vkms 160 ... Show all
