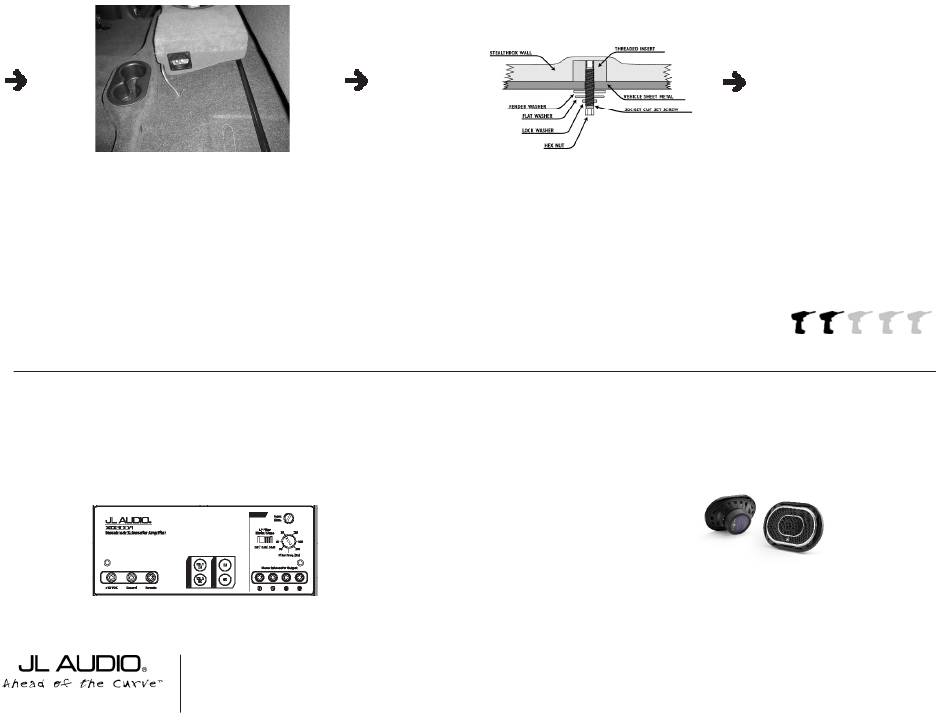

STEP 7:
At this time, run speaker cable to the
Stealthbox location and check for proper operation
of the woofer.
STEP 8:
Remove the wax square from the floor
and expose 1-1/2" of the socket set screw out of
the Stealthbox.
STEP 9:
Place the Stealthbox back into the pas-
senger' s side cavity. Carefully inserting the socket
set screw through the drilled floor.

Specifications:

Enclosure Type: Acoustical Suspension (Sealed)
Driver Type: 10W3v3-3-2
Nominal Impedance: 2Ω
Cont. Power Handling: 500Watts
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows the
recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner's manual for detailed informa-
tion about installing and tuning this amplifier.
w w w . j l a u d i o . c o m
10369 N. Commerce Pkwy, Miramar, Florida 33025-392
SB -D - QDR AM / 10W 3v 3, J L AUD IO, I n c 20 18
STEP 10: Place the supplied fender washer, flat
washer, lock washer and then hex nut, onto the
exposed socket set screw.
Note: 2009-Up models may require slightly
bending the heat shield above the exhaust to
access the set screw.
Note: Some models may require cutting and
removal of the underseat carpet and/or carpet
padding to access the set screw.
Mid/High Frequency Driver Information:
Front Location Driver Size:
6"x 9"
Applicable JL Audio Products:
C1-690x, C1-690tx, C1-690, & C2-690x
Rear Location Driver Size:
6.0"
Applicable JL Audio Products:
C1-650x, C1-650, C2-600x, C3-600
Phone: 954.443.1100
Pa ge 2
CONGRATULATIONS!
INSTALL COMPLETE.
Included Hardware:
(1) 3"x3" Wax Square
(1) 3/8"-16 X 3" Socket Set Screw
(1) 3/8" Flat Washer
(1) 3/8" Fender Washer
(1) 3/8" Split Lock Washer
(1) 3/8" Hex Nut
Difficulty Of Installation:
