Criterion BRUNSWICK1500 Assembly & Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instruction Manual
MODEL NO.: BRUNSWICK1500
- Please follow these assembly instructions as it will save you time, make
assembly easier and prevent possible damage to your new unit.
- Correct assembly is your responsibility.
- We strongly recommend that the unit is assembled on a soft surface such
as carpet or blanket.
- We suggest the use of hand tools only to tighten all screws and fittings,
as power tools can strip threads if over tightened.
- When moving this furniture item, always carry the unit. Dragging or
sliding the unit could damage the unit and the floor surface.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRUNSWICK1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Criterion BRUNSWICK1500

Summary of Contents for Criterion BRUNSWICK1500

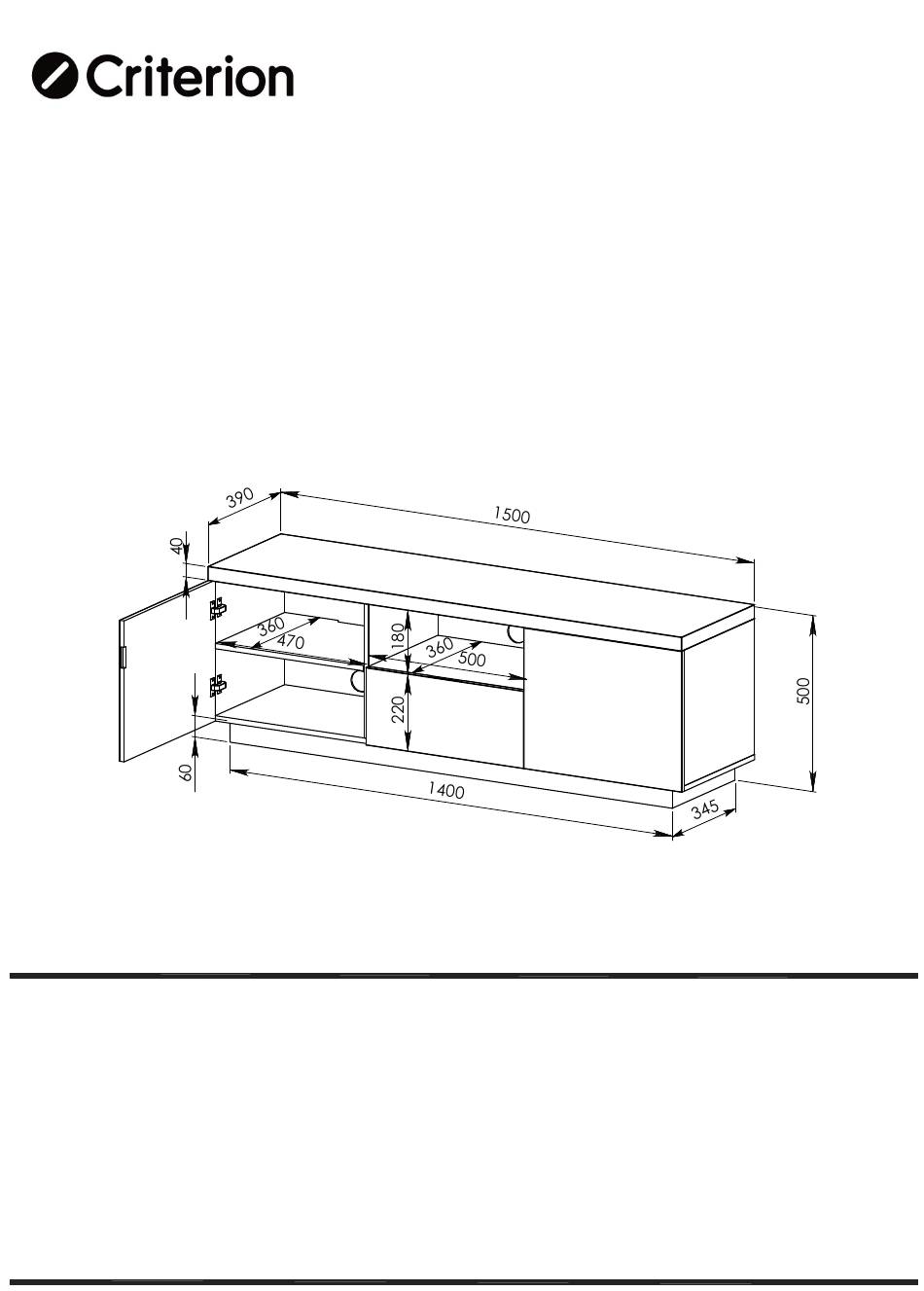

  • Page 1 Assembly Instruction Manual MODEL NO.: BRUNSWICK1500 - Please follow these assembly instructions as it will save you time, make assembly easier and prevent possible damage to your new unit. - Correct assembly is your responsibility. - We strongly recommend that the unit is assembled on a soft surface such as carpet or blanket.
