SCS WSMONITOR2 Plus User Manual

USER GUIDE TB-9089
WSMONITOR2 Plus Verification Tester
Operation Instructions

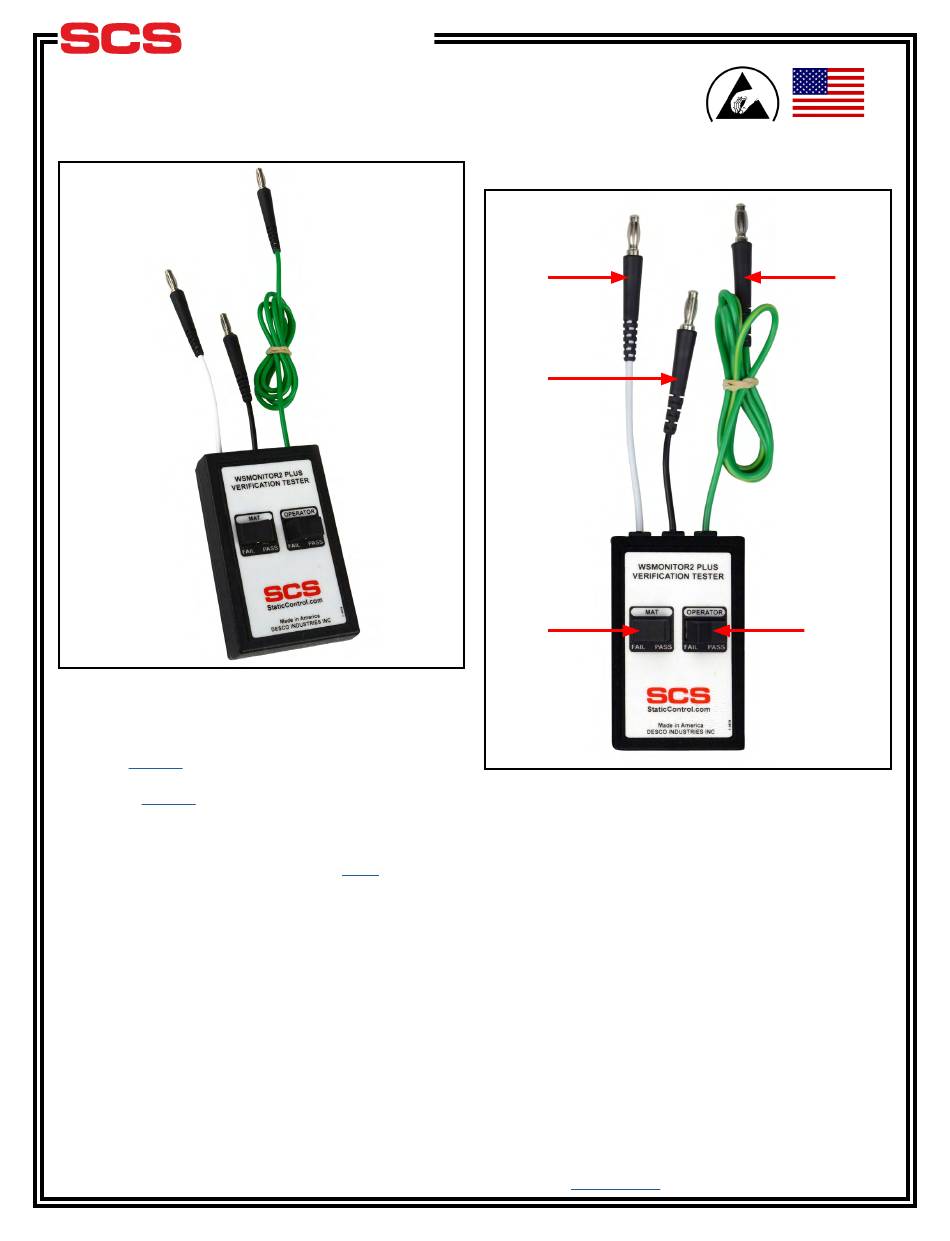

Figure 1. SCS 770076 WSMONITOR2 Plus Verification
Tester
Description
The SCS 770076 WSMONITOR2 Plus Verification
Tester is used to perform periodic test limit verification
of the SCS 770075 WSMONITOR2 Plus Workstation
Monitor. Verification may be accomplished without
removing the monitor from its workstation. The
WSMONITOR2 Plus Verification Tester is National
Institute of Standards and Technology (NIST) traceable.
Frequency of verification is based on the critical
nature of the ESD susceptible items handled. SCS
recommends annual calibration of workstation monitors
and the WSMONITOR2 Plus Verification Tester.
Packaging
1 WSMONITOR2 Plus Verification Tester
1 Alligator Clip
1 10mm Stacking Snap
1 Ground Plug Adapter
1 Ground Extension Cord, 5'
1 Certificate of Calibration
TB-9089 Page 1 of 3 October 2018
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:

Features and Components

A
C
D
Figure 2. WSMONITOR2 Plus Verification Tester
features and components
A. Mat Test Lead: Connect to the monitor's mat
terminal to verify its mat test circuit.
B. Ground Lead: Connect to equipment ground to
provide a ground reference for the WSMONITOR2 Plus
Verification Tester.
C. Operator Test Lead: Insert into the monitor's
operator jack to verify its operator test circuit.
D. Mat Test Switch: Toggle the rocker switch to the
left to force the monitor's mat circuit to fail. Toggle the
rocker switch to the right to force the monitor's mat
circuit to pass.
E. Operator Test Switch: Toggle the rocker switch
to the left to force the monitor's operator circuit to
fail. Toggle the rocker switch to the right to force the
monitor's operator circuit to pass.
StaticControl.com
Made in the
United States of America
B
E
