SCS 770734 Operation Instructions

USER GUIDE TB-9105
724 Plus Monitor Verification Tester
Operation Instructions

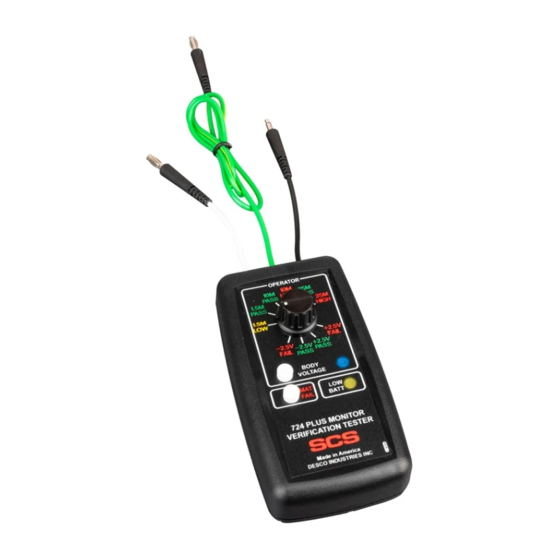

Figure 1. SCS 770734 724 Plus Monitor Verification
Tester
Description
The SCS 770734 724 Plus Monitor Verification Tester
is used to perform periodic test limit verification of the
SCS 770724 724 Plus Workstation Monitor. Verification
may be accomplished without removing the monitor
from its workstation. The Verification Tester is National
Institute of Standards and Technology (NIST) traceable.
Frequency of verification is based on the critical
nature of the ESD susceptible items handled. SCS
recommends annual calibration of workstation monitors
and the 724 Plus Monitor Verification Tester. The SCS
724 Plus Monitor Verification Tester meets ANSI/ESD
S20.20 and Compliance Verification ESD TR53.
Packaging
1 724 Plus Monitor Verification Tester
1 Alligator Clip
1 10mm Stacking Snap
1 Ground Plug Adapter
1 Ground Extension Cord, 5'
1 9V Alkaline Battery
1 Certificate of Calibration
TB-9105 Page 1 of 4 November 2020
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
Features and Components
B
D
E
G

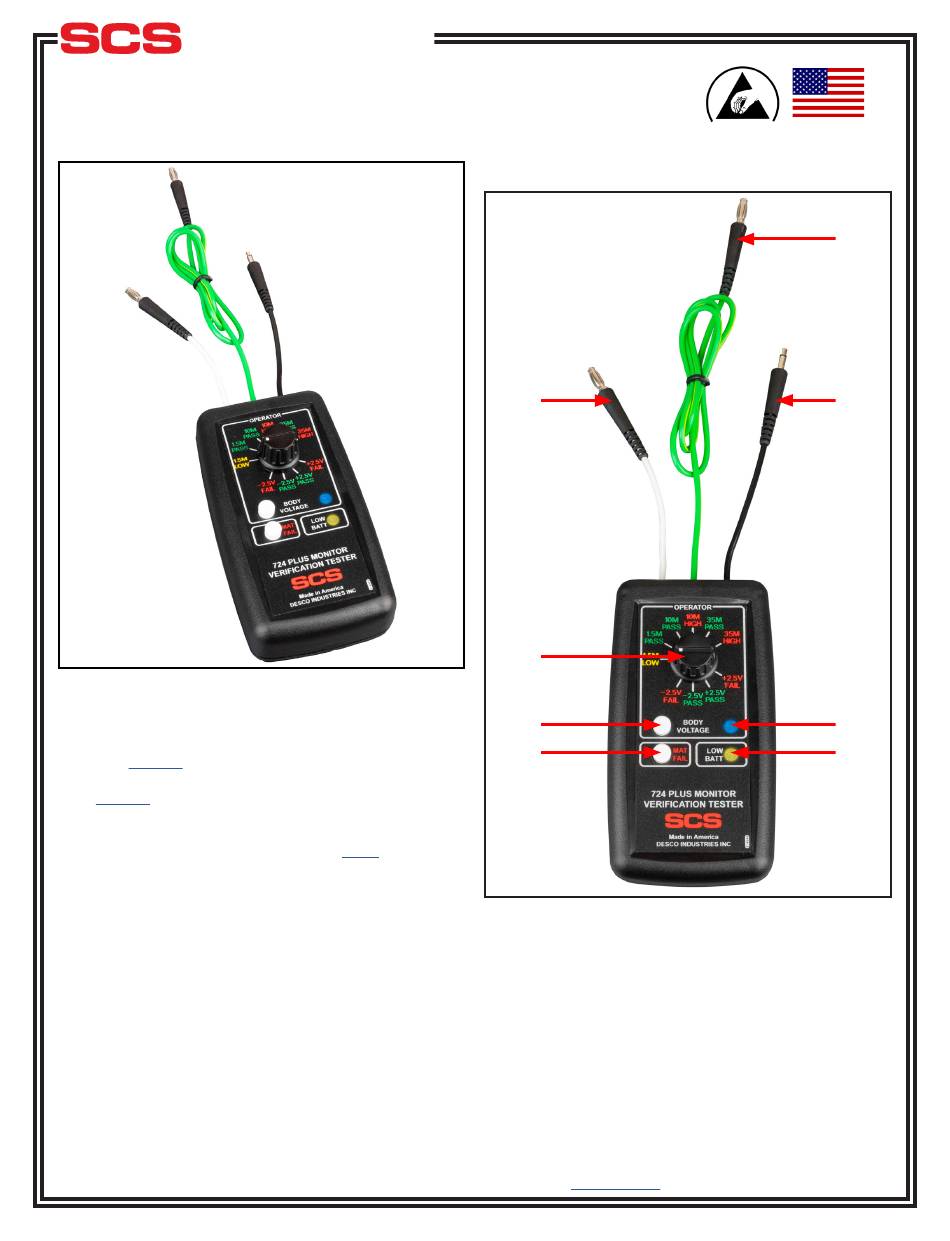

Figure 2. 724 Plus Monitor Verification Tester features
and components
A. Ground Lead: Connect to equipment ground to
provide a ground reference for the 724 Plus Monitor
Verification Tester.
A. Mat Test Lead: Connect to the monitor's mat
terminal to verify its mat test circuit.
C. Operator Test Lead: Insert into the monitor's
operator jack to verify its operator test circuit.
StaticControl.com
Made in the
United States of America
A
C
F
H
