SCS WSMONITOR2 Plus User Manual

WSMONITOR2 Plus Workstation Monitor
Installation, Operation and Maintenance

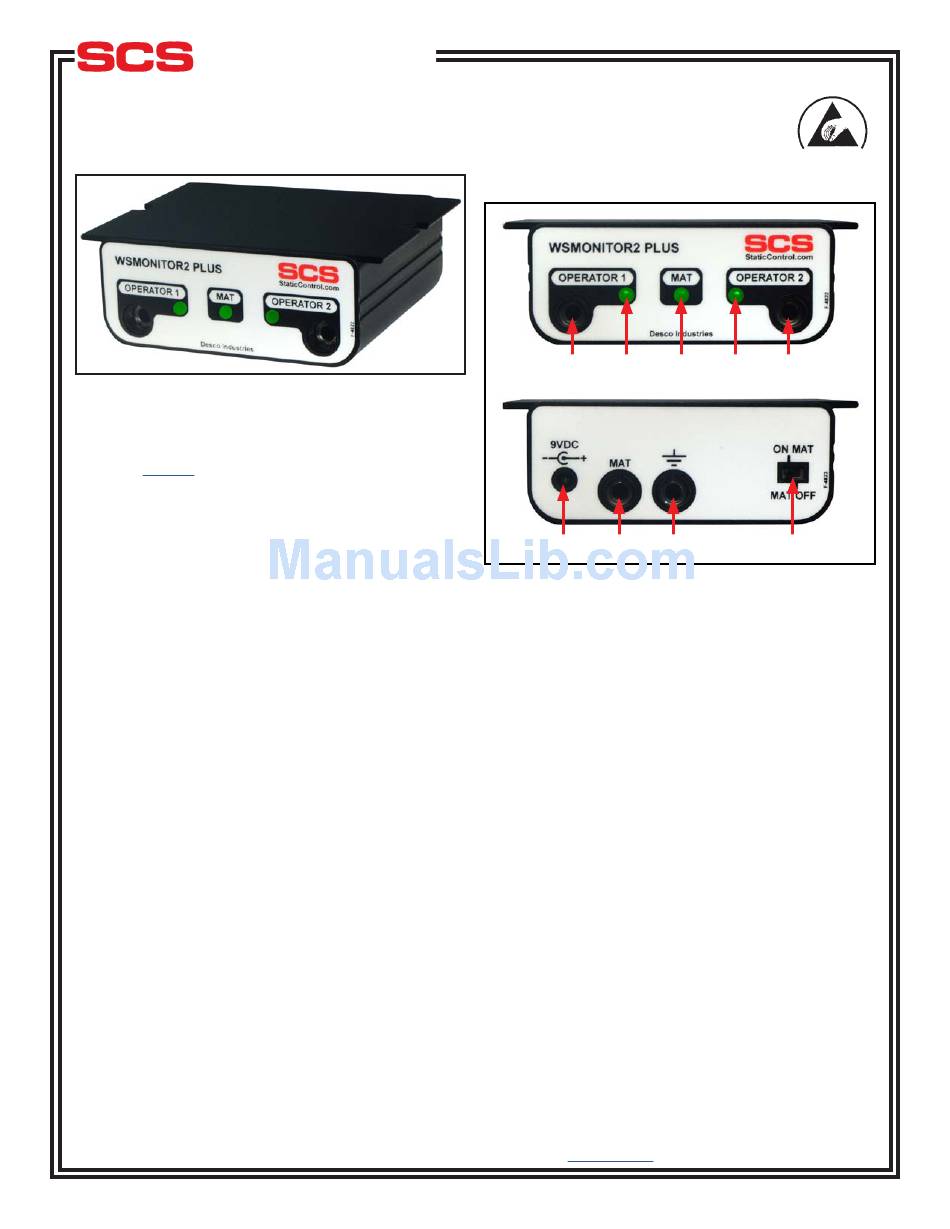

Figure 1. SCS 770075 WSMONITOR2 Plus Workstation
Monitor
Description
The SCS 770075
Monitor eliminates the need for periodic testing and
uses a solid state capacitance design to continuously
test the ground integrity of two operators and one
worksurface. The monitor will issue both audible and
visual alarms should the wrist straps or worksurface
fail. It is cost effective and designed to monitor
any conventional single-wire wrist strap system.
Its mounting tabs make it highly suitable to install
underneath table tops and save work space.
The WSMONITOR2 Plus Workstation Monitor meets
the Continuous Monitor requirements of ANSI/ESD
S20.20 in accordance with ESD TR1.0-01 and ANSI/
ESD STM3.1. It meets the recommendations of
ESD Handbook ESD TR20.20 which includes "if the
products that are being produced are of such value that
knowledge of a continuous, reliable ground is needed,
and then continuous monitoring should be considered or
even required".
Packaging
1 WSMONITOR2 Plus Workstation Monitor
1 Mat Monitor Cord (Black)
1 Monitor Ground Cord (Green and Yellow)
1 Push and Clinch Snap
1 Power Adapter, 9VDC, with interchangeable plugs
(North America, UK/Asia, Europe)
1 Certificate of Calibration
TB-9077 Page 1 of 3 January 2017
Find Quality Products Online at:
USER GUIDE TB-9077
WSMONITOR2 Plus Workstation
GlobalTestSupply
www.
Features and Components
A B
F G
Figure 2. WSMONITOR2 Plus Workstation Monitor
features and components
A. Monitored Operator 1 Jack: Connect the
single-wire wrist cord of operator 1 here to monitor his/
her connection to ground.
B. Operator 1 LED: Blinks red without an audible
alarm when in standby mode. Illuminates green when
operator 1 is properly grounded. Blinks red and audible
alarm sounds when operator 1 is not properly grounded.
C. Mat LED: Illuminates green when the worksurface
mat is properly grounded or the mat monitor switch is
set to OFF. Blinks red and audible alarm sounds when
the worksurface mat is not properly grounded.
D. Operator 2 LED: Illuminates red without an audible
alarm when in standby mode. Illuminates green when
operator 2 is properly grounded. Illuminates red and
audible alarm sounds when operator 2 is not properly
grounded.
E. Monitored Operator 2 Jack: Connect the
single-wire wrist cord of operator 2 here to monitor his/
her connection to ground.
F. 9VDC Power Jack: Connect the included power
adapter here to power the WSMONITOR2 Plus
Workstation Monitor.
G. Monitored Mat Jack: Monitors a worksurface mat
for proper dissipative resistance. Connect the black mat
monitor cord here.
.com
C D E
H I
