SCS TMTOOL Installation, Operation And Maintenance

USER GUIDE TB-9048
Verification Tester for WSMONITOR
Installation, Operation and Maintenance

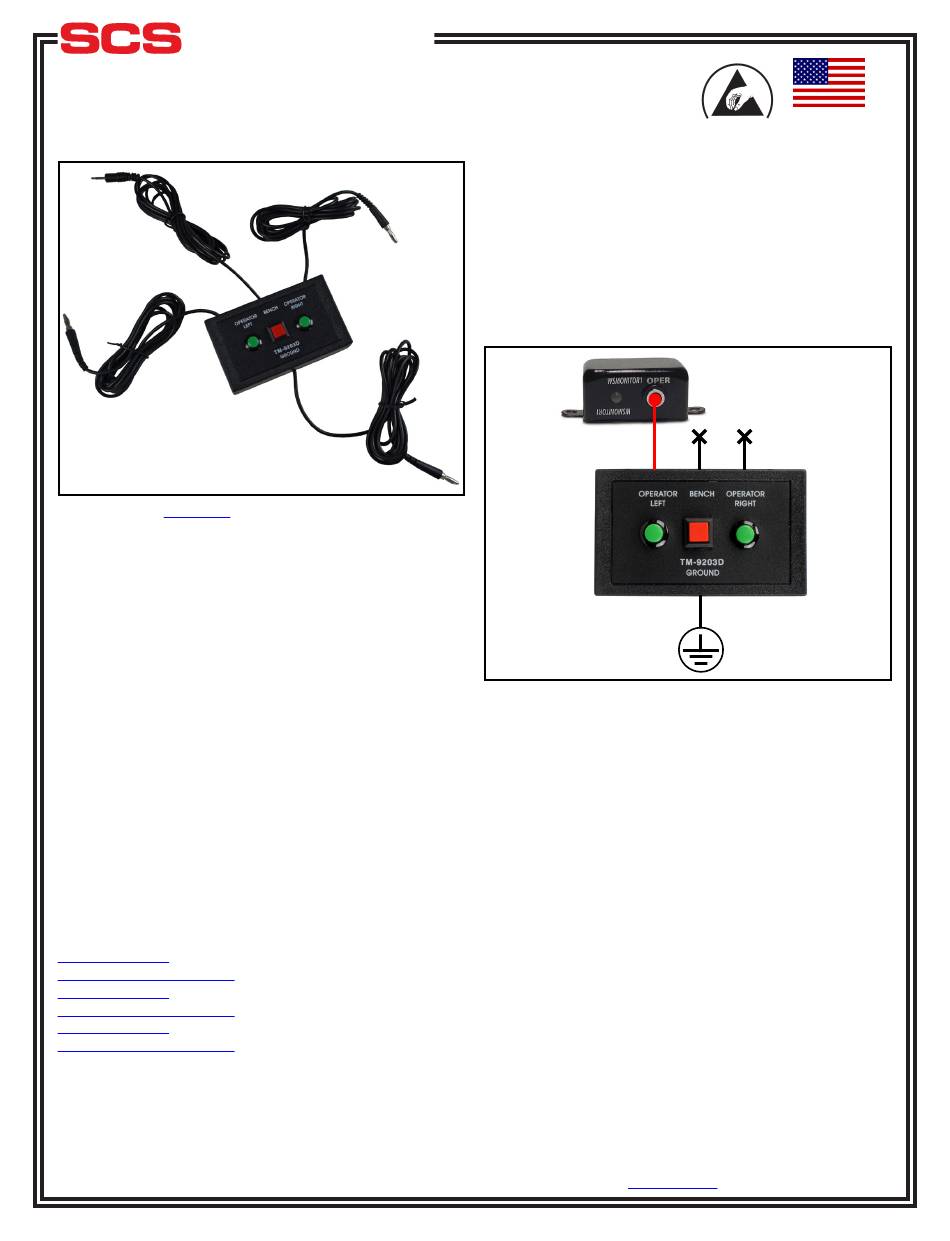

Figure 1. SCS TMTOOL

Description

The SCS TMTOOL Verification Tester is designed to
simplify the process of calibrating SCS WSMONITOR
series Workstation Constant Monitors. The SCS
TMTOOL Verification Tester provides an efficient and
accurate means to perform ANSI/ESD S20.20 required
Compliance Verification per ESD TR53.
Frequency of recalibration should be based on the
critical nature of those ESD sensitive items handled and
the risk of failure for the ESD protective equipment and
materials. In general, SCS recommends that calibration
be performed annually.
Use the SCS TMTOOL Verification Tester to perform
compliance verification testing of the SCS WSMONITOR
series. It can be used at the workstation where the
monitors are installed, virtually eliminating downtime.
Testing takes a few minutes, verifying that the monitor is
operating within tolerances (adjustment is not possible).
The TMTOOL Verification Tester is to be used with the
following items:

WSMONITOR1

WSMONITOR1-230VAC

WSMONITOR2

WSMONITOR2-230VAC
WSMONITOR3
WSMONITOR3-230VAC
Packaging
1 Verification Tester
1 Certificate of Calibration
TB-9048 Page 1 of 3 January 2016
Verification Tester
SCS - 926 JR Industrial Drive, Sanford, NC 27332 • (919) 718-0000 • Website:

Operation

WSMONITOR1
1. Ground the TMTOOL Verification Tester by
connecting its GROUND lead to electrical ground.
2. Power the WSMONITOR1 monitor.
3. Insert the OPERATOR LEFT lead from the
Verification Tester into the OPER jack located on
the front of the WSMONITOR1 monitor.
Figure 2. Connecting the Verification Tester to the
WSMONITOR1 monitor
4. Press and hold the OPERATOR LEFT button on the
Verification Tester. The LED on the WSMONITOR1
should illuminate green. Release the button. The
LED should flash red, and the audible alarm should
sound briefly.
5. The monitor is within specifications if it responds as
described above.
WSMONITOR2
1. Ground the TMTOOL Verification Tester by
connecting its GROUND lead to eletrical ground.
2. Power the WSMONITOR2 monitor.
3. Insert the OPERATOR LEFT lead from the
Verification Tester into the operator jack located on
the front of the WSMONITOR2 monitor.
4. Insert the BENCH lead from the Verification Tester
into the BENCH SYSTEM GROUND jack located on
the back of the WSMONITOR2 monitor.
