SCS 770065 User Manual

USER GUIDE TB-9083
Verification Tester
Operation Instructions

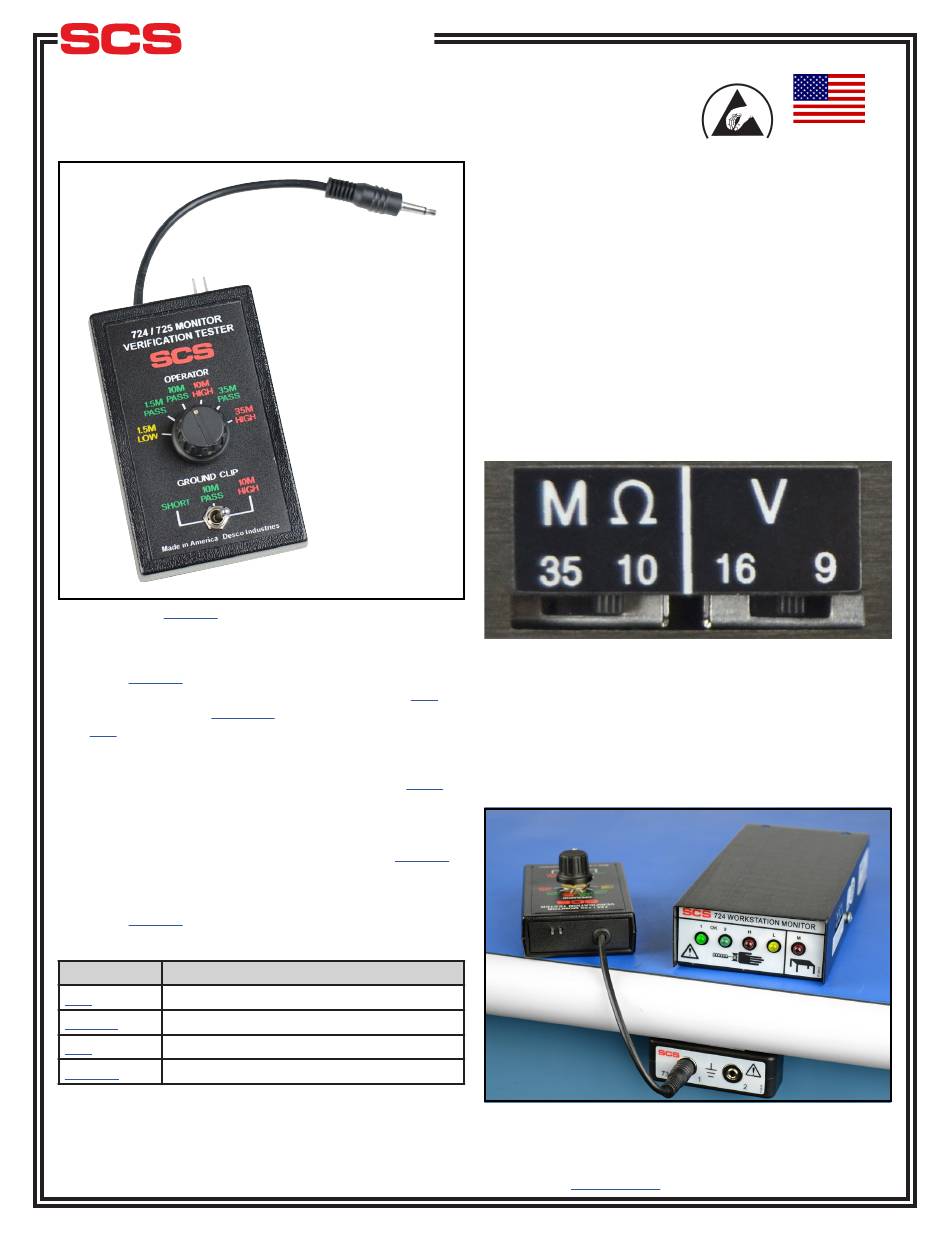

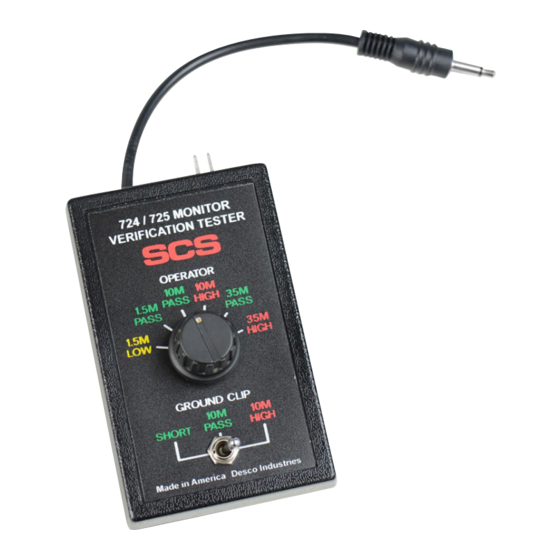

Figure 1. SCS 770065

Description

The SCS 770065 Verification Tester is used to
perform periodic test limit verification of the SCS
Workstation Monitor,
and 725 Portable Wrist Strap Monitor. Verification
may be accomplished without removing the monitor
from its workstation. The Verification Tester is
National Institute of Standards and Technology (NIST)
traceable. Frequency of verification is based on the
critical nature of the ESD susceptible items handled.
SCS recommends annual calibration of workstation
monitors and the Verification Tester. The SCS
Verification Tester meets ANSI/ESD S20.20 and
Compliance Verification ESD TR53.
The SCS 770065 Verification Tester can be used with
the following items:
Item Description
724 Workstation Monitor
724MO Workstation Monitor, No Power Adapter
725 Portable Wrist Strap Monitor
770724 724 Plus Workstation Monitor
TB-9083 Page 1 of 3 June 2020
Verification Tester
724 Plus Workstation Monitor,
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:

Packaging

1 Verification Tester
1 Certificate of Calibration

Operation

724 Workstation Monitor
Testing The Operator Circuits
The operator high test limit and test voltage may be
configured using the switches located on the right-side
of the 724 Workstation Monitor. The test limit may be
set to either 10 megohms or 35 megohms, and the test
voltage may be set to either 9V or 16V. Take note of the
test limit setting before following the instructions listed
below. The test voltage may be set to any position.
Figure 2. Operator test limit and test voltage switches
located on the right-side of the 724 Workstation Monitor
724
The Verification Tester's ground clip toggle switch is not
used in the verification of the 724 Workstation Monitor. It
may be set to any position.
1. Insert the Verification Tester's stereo plug into the
monitor's operator remote jack #1.
770065
Figure 3. Using the Verification Tester with the 724
Workstation Monitor
