DVB-S/S2 & DVB-T/T2/C to DVB-T transmodulators
1. Product description
DVB-S/S2 (tdx410C), DVB-T/T2/C (ttx410C) to DVB-T transmodulators (in the text - modules) designed for digital
transmodulation with Transport Stream Processing (of TV or Radio programmes) issued from FTA (Free to air) or encrypted
digital reception; in case of encrypted signal, a CAM (Conditional access module) containing the operator's smart card must
fitted in the slot. The streams can be viewed via Web interface using video player plug-in (VLC).
Modules are intended for indoor use only.
2. Characteristics
Input: One DVB transport stream (MPTS - Multiprogram Transport Stream).
Output: MPTS stream with up to 5 PCR restamped services (TV or Radio programs) or Transparent mode of MPTS
stream.
• Web interface for configuration and setting.
• SNMP (simple network management protocol) agent for monitoring and alarms.
• PID filtering (up to 31 PID's).
• PSI/SI (Program-specific information) parsing.
• PAT(Program association table), NIT (Network information table) and SDT (Service description table) table
regeneration.
3. Safety instructions
Installation of the module must be done according IEC60728-11 and national safety standards.
Any repairs must be made by qualified personnel.
Do not expose this module to moisture or splashing water and make sure no objects filled with liquids, such as vases,
are placed near or on the unit.
Avoid placing the module next to heat sources such as central heating components or in areas of high humidity.
Keep the module away from naked flames.
If the module has been kept in cold conditions for a long time, bringing it into a warm environment may cause
condensation, so allow it to warm up for no less than 2 hours before plugging into the mains.
Ventilation should not be impeded by covering the module, such as newspapers, table-cloths, curtains etc.
Mount the module in a vertical position only. If installing in a 19" rack system additional forced air cooling fans may be
required (see table "Technical specifications" - operating temperature range).
Always allow 10 cm of free space from the top, front and bottom of the unit to enable any heat to be dissipated.
Vers. 1.06
tdx410C, ttx410C
1
EN
Advertisement
Table of Contents
Related Manuals for Terra tdx410C
Summary of Contents for Terra tdx410C
-
Page 1: Product Description
1. Product description DVB-S/S2 (tdx410C), DVB-T/T2/C (ttx410C) to DVB-T transmodulators (in the text - modules) designed for digital transmodulation with Transport Stream Processing (of TV or Radio programmes) issued from FTA (Free to air) or encrypted digital reception; in case of encrypted signal, a CAM (Conditional access module) containing the operator's smart card must fitted in the slot. -

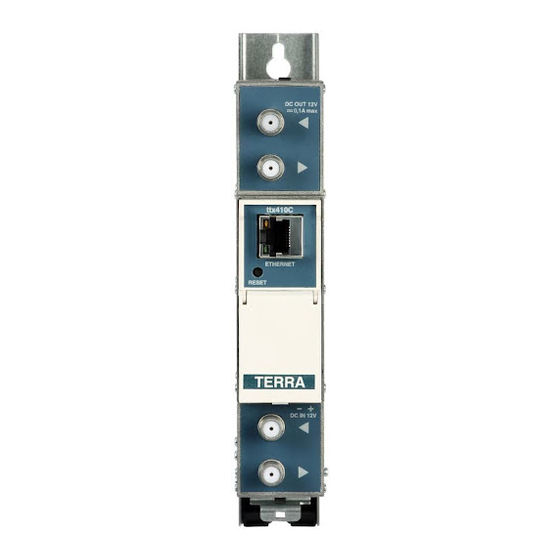

Page 2: External View
2 - ◄ - RF input of SAT IF signal, DC output for LNB DC OUT 14/18V 0.3A max 0.3A max (tdx410C); RF input of terrestrial, cable signal DC output for preamplifier (ttx410C). F socket. 3 - ►- RF output (input signal loop-through). F socket. tdx410C tdx410C 4 - ETHERNET - control Ethernet interface. -
Page 3: Mounting On Din Rail
Mounting on DIN rail Figure 3. Mounting to DIN rail Figure 4. Mounting from DIN rail Figure 5. Mounting or removing to/from DIN rail of plastic spacers (supplied). - Page 4 7. Operating 7.1 Initial configuration All modules leave the factory with this control: Ethernet interface IP address: 192.168.1.10. In order to avoid conflicts with other IP addresses, it is necessary to perform an initial configuration in local mode. Subsequently, it will be possible to access the modules via the local area network (LAN), either to re-programme it or to check its operating status.
- Page 5 The "RF input" table is used to configure parameters corresponding to the input satellite transponder (tdx410C module), terrestrial or cable transponder (ttx410C module). In the "List of services" table the list of services, available in the input transponder is displayed. In the "Input status" table you can see real time status of the input section.
- Page 6 “Input level” - RF signal level at the module input. Level indication - approximate. The values of the following parameters are displayed only if the module has synchronized with the input signal. “Modulation standard” - detected standard of the input signal. Possible values of the standard: DVB-S, DVB-S2 (tdx410C); DVB-T, DVB-T2, DVB-C (ttx410C).
-
Page 7: Output Status
Output Status “Output bandwidth” - maximum bitrate with currently selected RF output settings. “Output usage” - current usage of output bandwidth in percents. 7.3.3. List of services table The table (Figure 13) shows all of the input transport stream services, including different details (type, name, identifier). Also UDP unicast streaming via the control interface can be started, services for descrambling by CA module can be selected and descrambling status observed. -
Page 8: Output Settings
The checkboxes in the "Descramble" column are used to select services for descrambling by CA module. Several services can be selected, if the module supports simultaneous descrambling of several services. The "Descrambling status" icon meanings: - service is descrambled successfully, - service is not descrambled. - Page 9 So, if there are more modulators in the network, all channels must be included in this table. If there are more devices manufactured by Terra, which are controlled via Ethernet, all broadcast information can be captured automatically by adding its IP address and pressing „Load“ button. In case if the frequency was added manually already, that record will be updated.
-
Page 10: Snmp Settings
Figure 20. CAM settings screen In the CA module information table general information about inserted CA module is displayed. When there no CA module inserted, in the "Status" line is a message: "No module inserted" and remaining lines are empty. Otherwise, the "Status" contains message "Initialized"... -
Page 11: Event Logs
7.7.1 Event logs Move the mouse on the System menu tab then click on the "Event logs" line. The event logs screen will appear. Figure 22. Event logs table This enables you to see a list of the log messages of the module. Log contents remains after the power loss of module. Events in the log e are sorted by time –... -
Page 12: Firmware Upgrade
Click on "Click to select file" and select the file containing the configuration data that you wish to restore on the module. Once you have selected the file, click on the "Upload" button at the bottom of the screen. The upload confirmation window will be displayed. -
Page 13: Technical Specifications
36x198x112 mm/0.78 kg * without external DC feeding and CAM; with CAM 0.6 A, absolut max with CAM and external load 1 A for tdx410C and 0.75 A for ttx410C ≈ ** number of PID that can be blocked or passed, for example: 10 services, each have 6 PID's so there are 60 individual PID's plus tables (like PAT, SDT, NIT, EIT etc.) so all in all ~70 PID's... - Page 14 Equipment intended for indoor usage only. TERRA confirms, that this product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN60065, RoHS norm EN50581. TERRA confirms, that this product is in accordance with Custom Union Technical Regulations: “Electromagnetic compatibility of technical equipment“...
