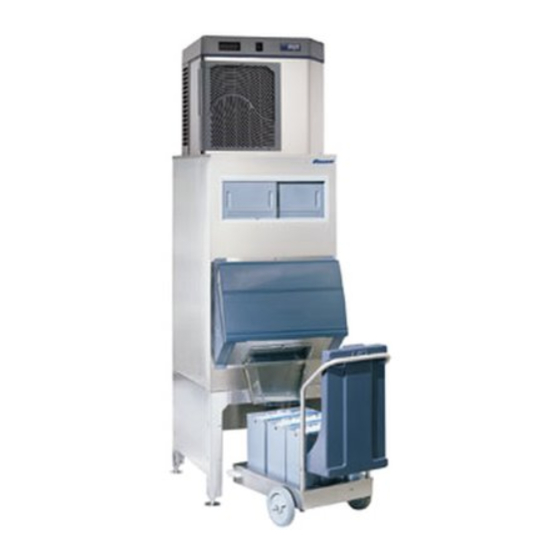

Horizon
Icemaker Installation Instructions
for Ice Storage Bin Top-mount Applications
Stock Module Identification Plate
Module No.
Product
Service No.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
208264
self-contained
00182212R04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon HCC1000ABT and is the answer not in the manual?

Questions and answers

Summary of Contents for Follett Horizon HCC1000ABT

  • Page 1 ™ Horizon Icemaker Installation Instructions for Ice Storage Bin Top-mount Applications HCC/HMC/HCE/HME1000ABT, HCC/HMC/HCE/HME1400ABT, HCC/HMC/HCE/HME1000WBT, HCC/HMC/HCE/HME1400WBT (See model number confi gurator on page 2 for details.) Order parts online www.follettice.com self-contained Stock Module Identification Plate 208264 Module No. Product Service No. 801 Church Lane •...
