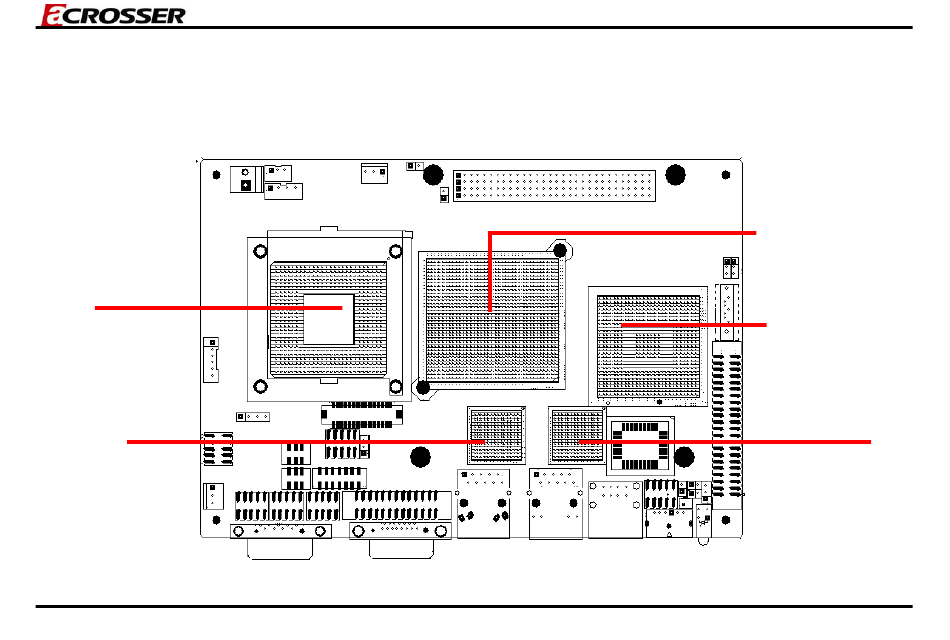

Quick Manual AR-B5231ETCM1GZC AR-B5231ETCM1GZC Quick Manual V1.3 A. Main Chip North Bridge Intel 910GMLE South Bridge Celeron M Intel ICH6M LAN1 LAN2 82562EZ 82541PI P/N:220010381-G... - Page 2 Quick Manual AR-B5231ETCM1GZC B. Connector PCI 104 2 USB PCI 104 connector USB Connector LAN2 SATA GIGALAN LAN Connector SATA Connector LAN1 IDE 44 Pin Connector 10/100 LAN Connect Keyboard and Mouse Display Port COM1 D-Sub 9 pin connector P/N:220010381-G...
- Page 3 Quick Manual AR-B5231ETCM1GZC SODIMM DDR2 SO-DIMM CF SLOT CF CARD P/N:220010381-G...
- Page 4 Quick Manual AR-B5231ETCM1GZC C. Jumpers and Header 1.J5 13.FAN1 SATA POWER CPU Fan connector 14.JP7 2.CN5 Switch for Dothan or Banines 5V_SUS/PS_ON/GND FOR ATX 15.JP6 3.CN4 Switch for PCI 104 INT_SERIRQ 12V Power in connector 16.GPIO 4.LVDS GPIO Connector for LVDS signals 17.
- Page 5 Quick Manual AR-B5231ETCM1GZC 4.LVDS 1.J5 SIGNAL SIGNAL SIGNAL TXCLK U- TXCLK U+ TXOUT U2- TXOUT U2+ TXOUT U1- TXOUT U1+ 2.CN5 SIGNAL TXOUT U0+ TXOUT U0- TXCLK L+ PS-ON TXCLK L- CLOCK- 5V-SUS TXOUT L2+ TXOUT L2- SMBCLK TXOUT L1+ 3.CN4...
- Page 6 Quick Manual AR-B5231ETCM1GZC 8.AUDIO1 5.JP2 SIGNAL SIGNAL SIGNAL RS-232 R-OUT L-OUT RS-422 RS-485 R-IN L-IN MIC-IN 6.CN3 SIGNAL SIGNAL 9.JP5 Back Light On STATUS SETTING Back Light Control 3.3V 7.J2 SIGNAL 10.FAN2 SIGNAL DATA P/N:220010381-G...
- Page 7 Quick Manual AR-B5231ETCM1GZC 11.J1 14.JP7 SIGNAL STATUS SETTING SPEAKER OPEN 1.8V(BANINES) RESET CLOSE 1.5V(DOTHAN) POWER BUTTON 12.COM2 15.JP6 &COM3 STATUS SETTING &COM4 OPEN DISABLE SERIRQ SIGNAL SIGNAL CLOSE ENABLE SERIRQ 16.GPIO SIGNAL SIGNAL GPIO0 GPIO1 GPIO7 13.FAN1 GPIO2 GPIO6 SIGNAL...
- Page 8 Quick Manual AR-B5231ETCM1GZC 18.JP8 & SIGNAL SIGNAL 17.DVI1 TD0- SETTING TD1+ TD2- TCK+ 100MHz GREEN JP9 JP8 BLUE VSYNC 133MHz HSYNC TD0+ TD1- TD2+ GND- TCK- SCL1 SDA1 19.JP3 SCL2 SDA2 STATUS SETTING OPEN 33MHz CLOSE 66mHZ P/N:220010381-G...
- Page 9 Quick Manual AR-B5231ETCM1GZC 24.USB2 SIGNAL SIGNAL 20.JP4 STATUS SETTING OPEN SLAVE CLOSE MASTER 22.J3 TV-OUT (AR-B5230SD STATUS SETTING ONLY) SIGNAL SIGNAL OPEN LOCK CLOSE UNLOCK CVBS/Pb-S C/Pr-G 23.LED1 SIGNAL GREEN Power YELLOW Hard Disk P/N:220010381-G...
- Page 10 Quick Manual AR-B5231ETCM1GZC ATX or AT POWER BUTTON Setting MODE POWER BUTTON SWITCH CLOSE ATX or AT BIOS Setting ATX MODE Item Option Choice Advanced APIC MODE Enable Power ACPI Function Enable Power ACPI Supply Type S1 & S3 Power...
