Acrosser Technology AR-B5205 Quick Manual

Hide thumbs Also See for AR-B5205:

Download this manual See also: User Manual

Enlarged version

AR-B5205

Quick Manual V1.2

Content:

Locations of

Main

Component, Connectors,

2. The List of All

Connectors

and

Description of

Jumper Settings

AR-B5205

AR-B5205 Quick Manual

Jumpers

and

Indicators.

Jumper Settings

Assorted by Function.

and

Connector Pin Definitions.

P/N：220010368-G

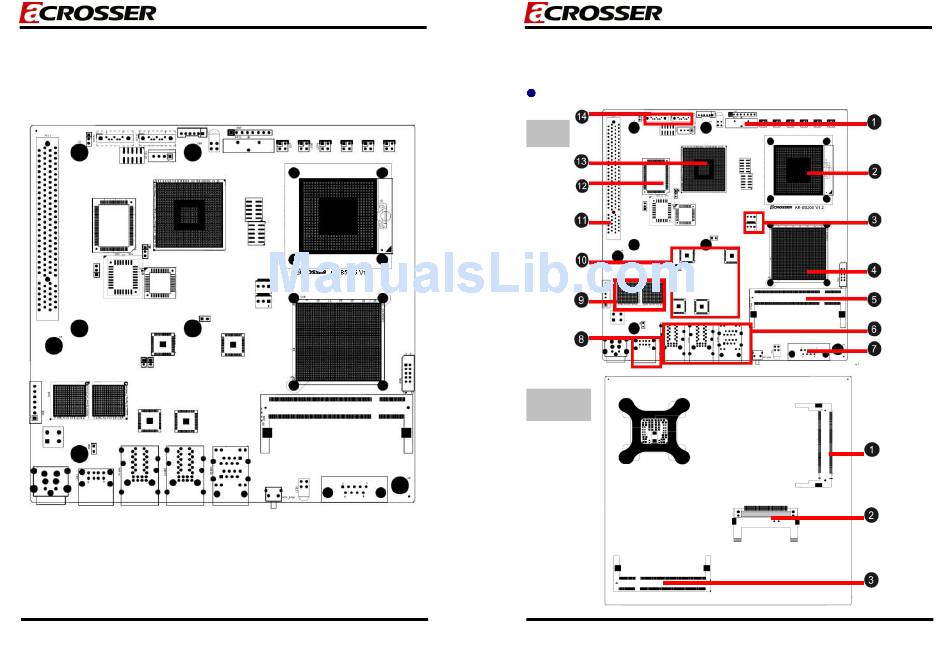

1. Locations

Main Chips and Standard Connectors

TOP

Bottom

AR-B5205

AR-B5205 Quick Manual

P/N：220010368-G

Page 1 AR-B5205 Quick Manual AR-B5205 Quick Manual 1. Locations AR-B5205 Quick Manual V1.2 Main Chips and Standard Connectors Bottom Content: Locations of Main Component, Connectors, Jumpers Indicators. 2. The List of All Connectors Jumper Settings Assorted by Function. Description of Jumper Settings Connector Pin Definitions.
Page 2 AR-B5205 Quick Manual AR-B5205 Quick Manual Connector, Jumper and Indicators BAT1 USB1 Battery Connector USB connector PCI Ethernet Controller IC x 2 Intel Celeron M /Pentium M CPU Intel Ethernet controller 82541PI FAN1 & FAN2 PCI EXPRESS Ethernet Controller IC x 4...
Page 3 AR-B5205 Quick Manual AR-B5205 Quick Manual 2. List of Connectors and Jumper Settings KBMS1 PS/2 Keyboard and Mouse Connector Function Part Reference Description and Note Power Supply for SATA Hard Disk Serial Port COM1 COM1 is for RS232 GPIO1 VGA & LCM Connector For General Purpose I/O 1.
Page 4: Jumper Settings And Pin Definitions
AR-B5205 Quick Manual AR-B5205 Quick Manual 1. Jumper settings and Pin Definitions. VGA1 SIGNAL SIGNAL VGA1 is for CRT output) LED2~LED7 (Right to Left) GREEN Light SIGNAL LED indicator for LAN1~LAN6. (Right to BLUE GREEN LINK/ACT Left) V-SYNC I2C Clock...
Page 5 AR-B5205 Quick Manual SIGNAL LCM module interface Reset DATA Out DATA In RTC power and reset Status Function 1-2 close Normal (Default)) 2-3 Close RTC Reset KBMS1 SIGNAL SIGNAL PS/2 Keyboard and Mouse Connector MS data KB data MS clock...
