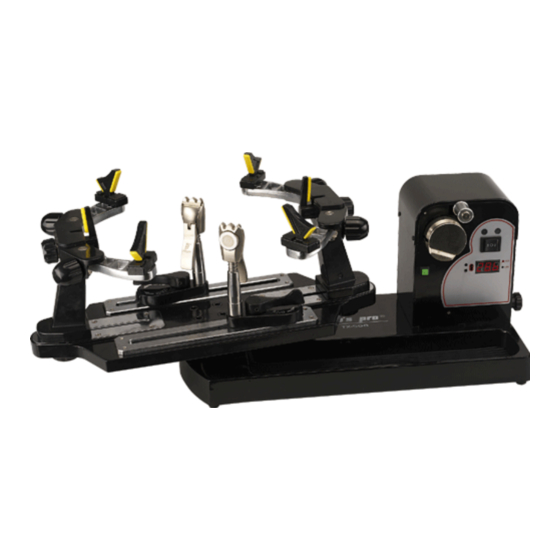

- Page 1 TX 500 N & S ELECTRONIC STRINGING MACHINE INSTRUCTIONS & USER MANUAL...
-
Page 2: Unpacking And Inspection
Unpacking and inspection The machine is delivered ready assembled. In the parcel are 4 pieces V-shaped Side Supports, two Ultimate clamps, one AC power cord and Allen wrenches. Lift carefully the machine out of the carton. Inspect the Electronic TX-500N stringing machine for obvious damage. - Page 3 Operating Instructions 1. Place the machine on a table or a stand foot. 2. On the electronic part is on the back side a switch which should be in the ON position for normal operation. 3. Turn the power on and a red light flashes and the tension number appears on the LED display.
- Page 4 Fixing of the Racket Loosen both mounting stocks, place the four K-shaped side supports into the hole of the side-support arms, in the far outer hole for tennis rackets, in the other hole for badminton and squash. Now place the racket in the middle of the stringing machine.
-
Page 5: Very Important
Very Important How to put the string into the tensionsystem First place the string over the small reel and then around the big one and place it into the slot and hold the string down. Then push the button to 1 and the machine starts pulling until it has the right tension. - Page 6 Adjust the Base of the Swivel Clamp to the correct holding pressure If the Clamp base is no longer working very well, put the clamp base vertical to the track. Insert the 3mm Allen wrench into the hole on the side of the base, before you have to remove the black cap.
-
Page 7: Maintenance
Maintenance 1. The Electronic TX-500N stringing machine is adjusted and calibrated before shipment. Working is easy and relatively maintenance-free. 2. Keep the stringing machine always at a dry and safe place. Keep it away from dust, grease, moisture and any type of heat. 3. -
Page 8: Troubleshooting
Troubleshooting The power light does not shine and the electronic part does not do anything. • Be sure the power switch is in “on” position. • Check that the power cord is properly installed. • Check the fuse. Turn off the power switch and unplug the power cord from the wall outlet before checking the fuse. - Page 9 Calibration The machine is calibrated with an electronic Tension calibrator, if you have only a mechanic one, please be sure that it is not too old otherwise the spring inside will give you wrong results. 1. Set the tension to 25 kg 2.
