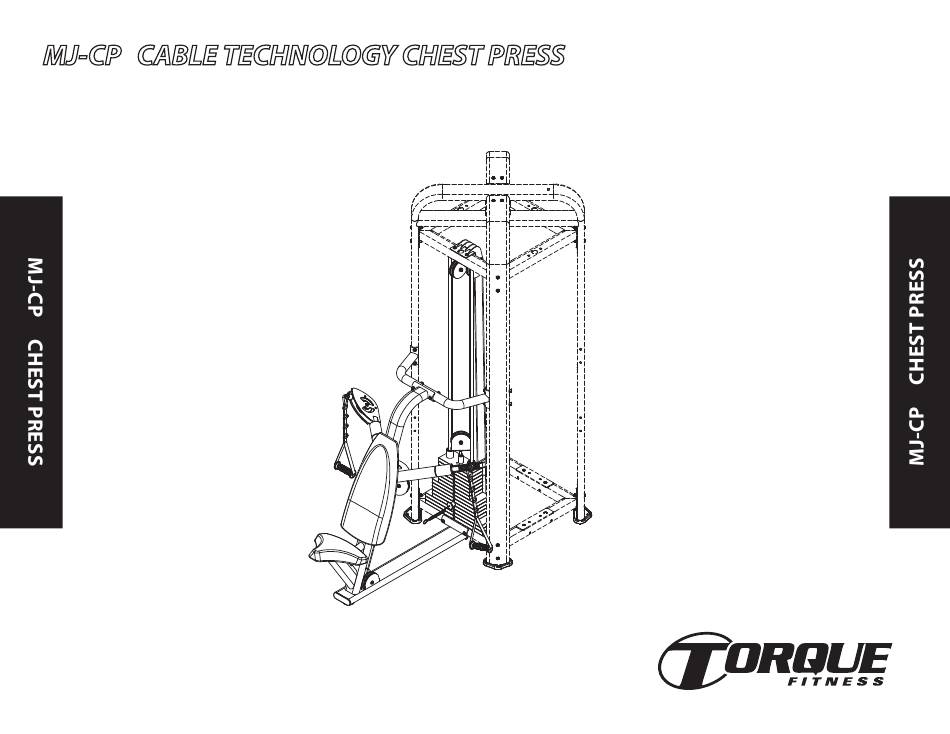

- Page 1 MJ-CP CABLE TECHNOLOGY CHEST PRESS...
-
Page 2: Exploded Diagram
EXPLODED DIAGRAM... -
Page 3: Item Part Number
PARTS LIST - STEP 1 ITEM PART NUMBER DESCRIPTION DABE03831416NU Cap Head Screw 3/8” x 3 1/4” L DABE03843416NU Cap Head Screw 3/8” x 4 3/4”” L DB2E03811000U Lock Nut 3/8” x 11t DC120010510U 3/8” Flat Washer DC322010015U 3/8” Curved Washer A05-0212 Alum. -
Page 4: Assembly - Step
ASSEMBLY - STEP 1 Note: If optional shrouds are to be assembled, replace item 9 with upper shroud bracket found in shroud box. - Page 5 PARTS LIST - STEP 2 ITEM PART NUMBER DESCRIPTION DABE03821416YU Cap Head Screw 3/8” x 2 1/4” L with blue patch DABE03823416ANU Cap Head Screw 3/8” x 2 3/4” L DABE03830016ANU Cap Head Screw 3/8” x 3” L DABE03861416NU Cap Head Screw 3/8” x 6 1/4” L DB2E03811000U Lock Nut 3/8”...
- Page 6 ASSEMBLY - STEP 2 Use C-Clip Pliers to open and secure C-Clip in the groove of Swivel Pulley Shafts. w/ NP...
- Page 7 PARTS LIST - STEP 3 ITEM PART NUMBER DESCRIPTION DB2E03811000U Lock Nut 3/8” x 11t DABC03804816NU Cap Head Screw 3/8” x 48mm L DC120010510U 3/8” Flat Washer DABM05008006YB Socket Cap Screw M5 x 6mmL with blue patch MJ-T MJ Tower P05-1377 Core, Cable Coupler P06-0035...
- Page 8 ASSEMBLY - STEP 3 w/ NP P13-0497 11600.0...
- Page 9 PARTS LIST - STEP 4 ITEM PART NUMBER DESCRIPTION DABE03811416YBU Cap Head Screw 3/8” x 1 1/4” L with blue patch DABE03830016YBU Cap Head Screw 3/8” x 3” L with blue patch DC120010510U 3/8” Flat Washer MJ-T MJ Tower P07-0434 Seat Pad P07-0688 Back Pad...
- Page 10 ASSEMBLY - STEP 4 w/ NP w/ NP...
