JOY I
JOY 2
RESET
•
OFF ON
POWER
t,„)

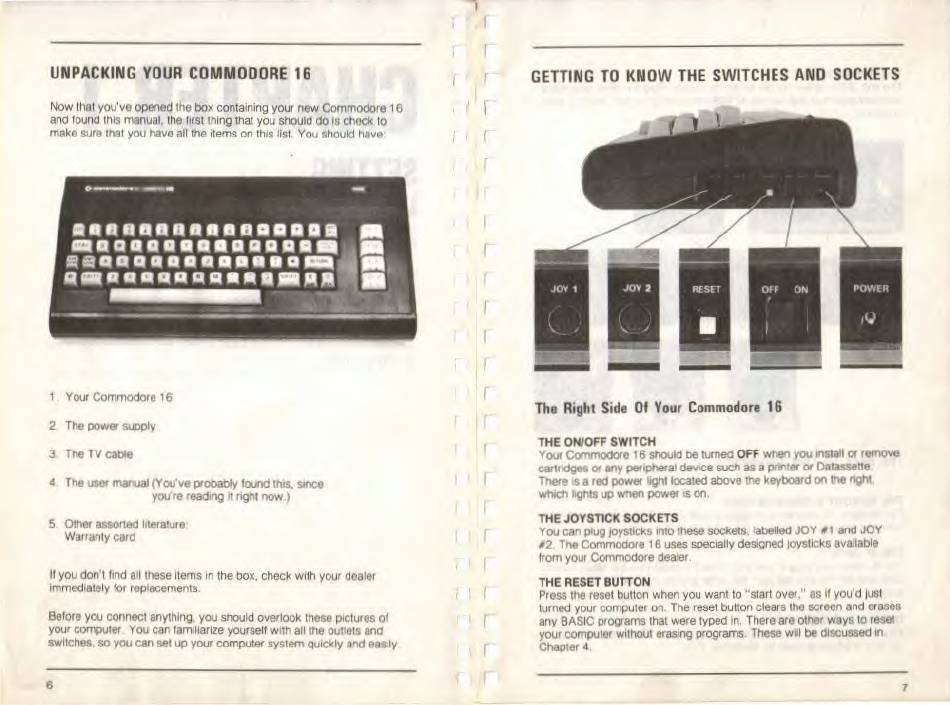

UNPACKING YOUR COMMODORE 16
GETTING TO KNOW THE SWITCHES AND SOCKETS
Now that you've opened the box containing your new Commodore 16
and found this manual, the first thing that you should do is check to
make sure mat you have all the items on this list. You should have
nainearlannettagalitil
aotaaaaaaaamaas
gieCIQ00111110111101•1111110111=1
RanagaaackamilliPPI
1 Your Commodore 16
The Right Side Of Your Commodore 16
THE ONIOFF SWITCH
Your Commodore 16 should be turner OFF when you install or remove
cartridges or any peripheral device such as a printer or Datassette.
Theresa red power light located above the keyboard on the right.
which lights up wnen power is on.
THE JOYSTICK SOCKETS
You can plug joysticks into these sockets, labelled JOY NI and JOY
#2. The Commodore 16 uses specially designed joysticks available
from your Commodore dealer.
THE RESET BUTTON
Press the reset button when you want to "start over." as if you'd just
turned your computer on. The reset button clears the screen and erases
any BASIC orograms that were typed in. There are other ways to reset
your computer without erasing programs. These will
be
discussed in
Chapter 4.
2 The power supply
3. The TV cable
4. The user manual (You've probably found this, since
you're reading it right now.)
5. Other assorted literature:
Warranty card
II
you don't find all these items in the box, check with your dealer
immediately for replacements.
Before you connect anything, you should overlook these pictures of
your computer. You can familiarize yourself with all the outlets and
switches, so you can set up your computer system quickly and easily
6
