SMD17E2 User Manual

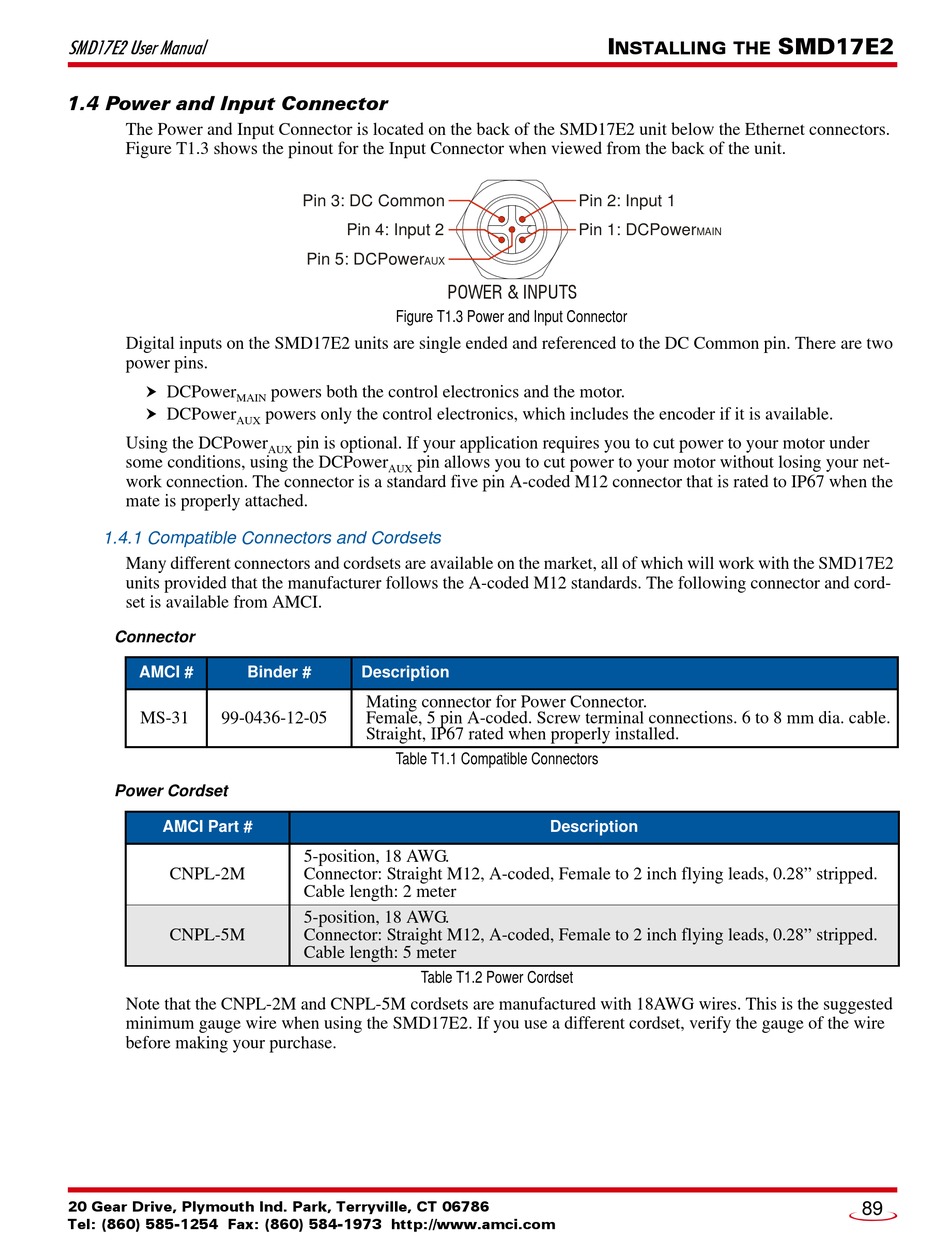

1.4 Power and Input Connector

The Power and Input Connector is located on the back of the SMD17E2 unit below the Ethernet connectors.
Figure T1.3 shows the pinout for the Input Connector when viewed from the back of the unit.
Digital inputs on the SMD17E2 units are single ended and referenced to the DC Common pin. There are two
power pins.

DCPower
MAIN

DCPower
AUX
Using the DCPower
some conditions, using the DCPower
work connection. The connector is a standard five pin A-coded M12 connector that is rated to IP67 when the
mate is properly attached.

1.4.1 Compatible Connectors and Cordsets

Many different connectors and cordsets are available on the market, all of which will work with the SMD17E2
units provided that the manufacturer follows the A-coded M12 standards. The following connector and cord-
set is available from AMCI.
Connector
AMCI #
MS-31 99-0436-12-05
Power Cordset
AMCI Part #
CNPL-2M
CNPL-5M
Note that the CNPL-2M and CNPL-5M cordsets are manufactured with 18AWG wires. This is the suggested
minimum gauge wire when using the SMD17E2. If you use a different cordset, verify the gauge of the wire
before making your purchase.
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
Pin 3: DC Common
Pin 4: Input 2
Pin 5: DCPower
AUX
Figure T1.3 Power and Input Connector
powers both the control electronics and the motor.
powers only the control electronics, which includes the encoder if it is available.
pin is optional. If your application requires you to cut power to your motor under
AUX
pin allows you to cut power to your motor without losing your net-
AUX
Binder # Description
Mating connector for Power Connector. 
Female, 5 pin A-coded. Screw terminal connections. 6 to 8 mm dia. cable.
Straight, IP67 rated when properly installed.
Table T1.1 Compatible Connectors
5-position, 18 AWG.
Connector: Straight M12, A-coded, Female to 2 inch flying leads, 0.28" stripped.
Cable length: 2 meter
5-position, 18 AWG.
Connector: Straight M12, A-coded, Female to 2 inch flying leads, 0.28" stripped.
Cable length: 5 meter
Table T1.2 Power Cordset
I
NSTALLING THE
Pin 2: Input 1
Pin 1: DCPower
POWER & INPUTS
Description
SMD17E2
MAIN
