Command Blocks (continued)

Jog CCW

PROFINET
Word
0
1
2
3
4
5
6
7
8
9
Unused words are ignored by the SMD17E2 and can be any value, including parameter values from the previ-
ous command.

Registration Move CCW

PROFINET
Word
0
1
2
3
4
5
6
7
8
9
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
Function
Command Word 0
Command Word 1
Unused
Unused
Programmed Speed: Upper Word
Programmed Speed: Lower Word
Acceleration
Deceleration
Motor Current
Acceleration Jerk

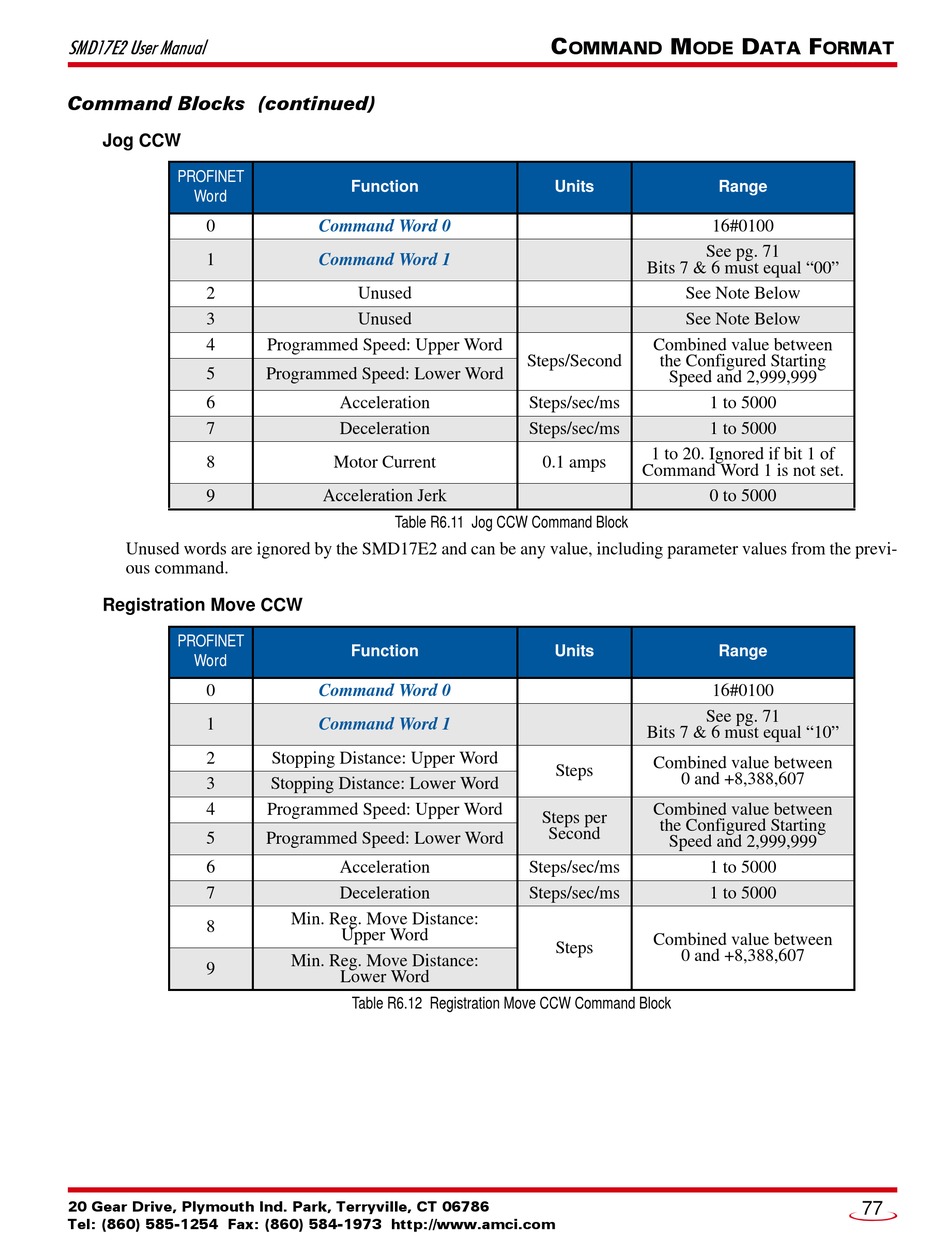

Table R6.11 Jog CCW Command Block
