7.6 Verify and Download the New Configuration

1) Continue by adding any remaining devices to your PROFINET network.
2) Compile and download the project to the CPU.

MRP Installations

At this point, the SMD17E2 is configured and ready to use. If you are using the unit in a redundant, ring
based, network that uses the Media Redundancy Protocol (MRP), continue with the following instructions.
Media Redundancy Protocol (MRP) installations require that the SMD17E2 be
installed in a ring topology. In these applications, both Ethernet ports are used
when wiring the ring, daisy chaining from one unit in the ring to the next. The
steps below covers typical software configuration that must also be completed.

7.7 Configure the SMD17E2 as an MRC

The SMD17E2 functions as a Media Redundancy Client (MRC) in an MRP network.
1) Switch to Topology view and drag the additional connections between the appropriate ports.
2) Click on the SMD17E2 icon to select it. In the Inspector window, select Advanced options +> Media
redundancy. Use the "MRP domain:" drop down menu to select the appropriate domain. Use the "Media
redundnacy role:" drop down menu to select "Client".
3) Continuing in the Inspector window, select Advanced options +> Port 1 +> Port interconnection. Under
"Partner port:", the partner port you assigned to the port when you drew the topology is shown. If you do
not know which port will be the partner port in the actual installation, you can use the drop down menu to
select "Any partner".
4) If need be, repeat step 3 for Port 2 of the SMD17E2.
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
PROFINET N

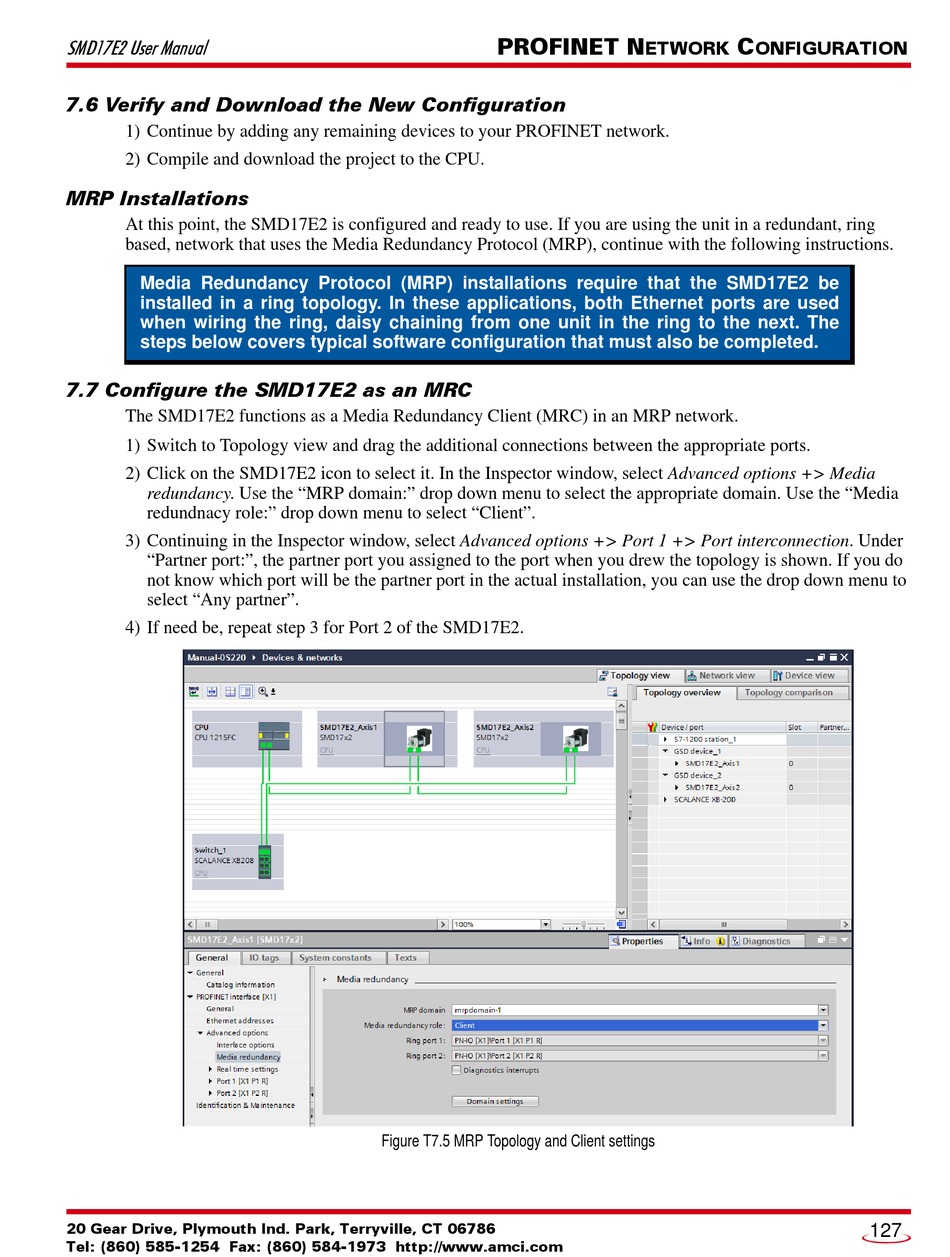

Figure T7.5 MRP Topology and Client settings
