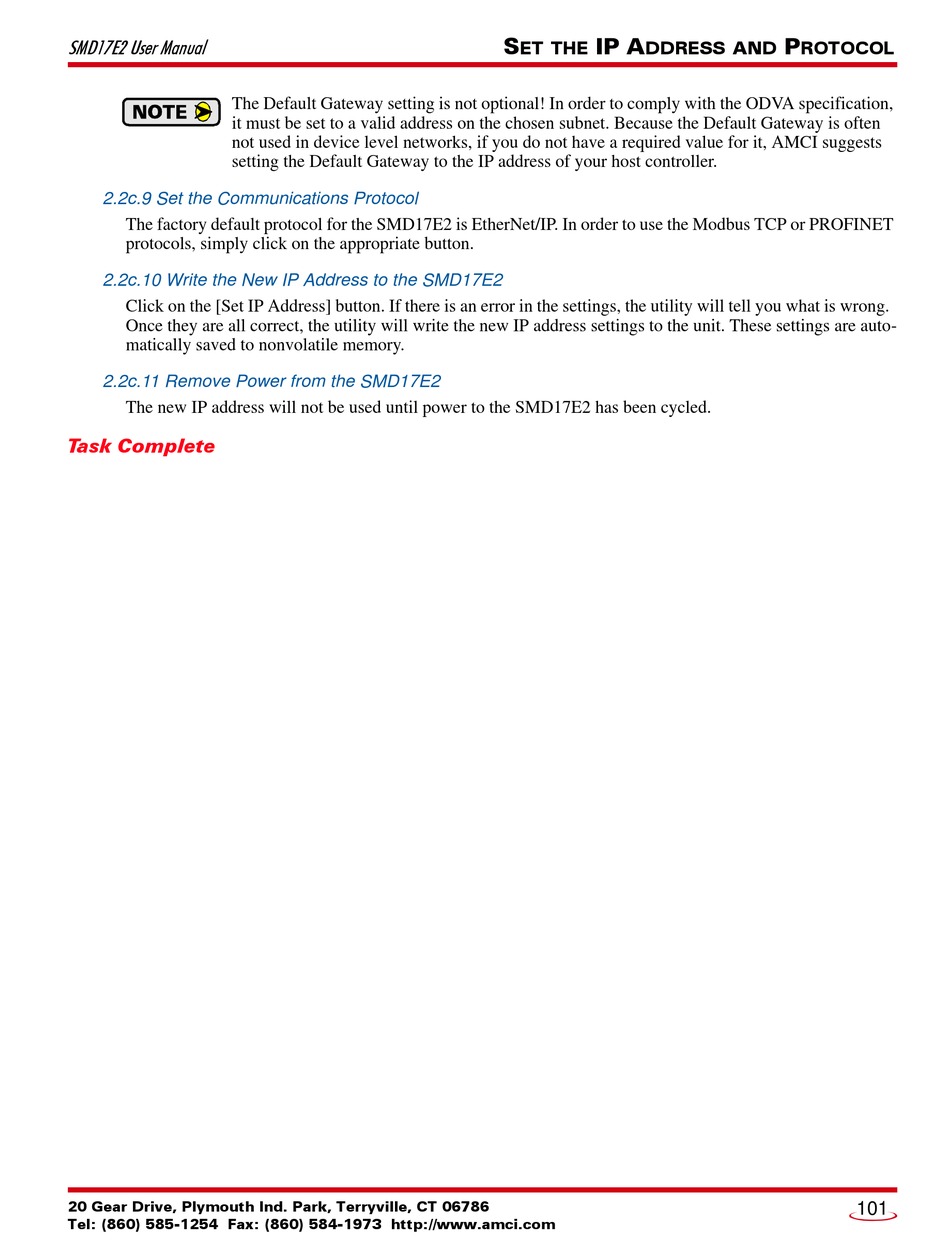

SMD17E2 User Manual
The Default Gateway setting is not optional! In order to comply with the ODVA specification,
it must be set to a valid address on the chosen subnet. Because the Default Gateway is often
not used in device level networks, if you do not have a required value for it, AMCI suggests
setting the Default Gateway to the IP address of your host controller.
2.2c.9 Set the Communications Protocol
The factory default protocol for the SMD17E2 is EtherNet/IP. In order to use the Modbus TCP or PROFINET
protocols, simply click on the appropriate button.
2.2c.10 Write the New IP Address to the SMD17E2
Click on the [Set IP Address] button. If there is an error in the settings, the utility will tell you what is wrong.
Once they are all correct, the utility will write the new IP address settings to the unit. These settings are auto-
matically saved to nonvolatile memory.
2.2c.11 Remove Power from the SMD17E2
The new IP address will not be used until power to the SMD17E2 has been cycled.
Task Complete
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973 http://www.amci.com
S
IP A
ET THE
DDRESS AND
P
ROTOCOL
101
