Proline DWM12P Instruction Manual

Proline DWM12P Instruction Manual

12 place settings dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

12 place settings dishwasher
DWM12P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWM12P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proline DWM12P

Summary of Contents for Proline DWM12P

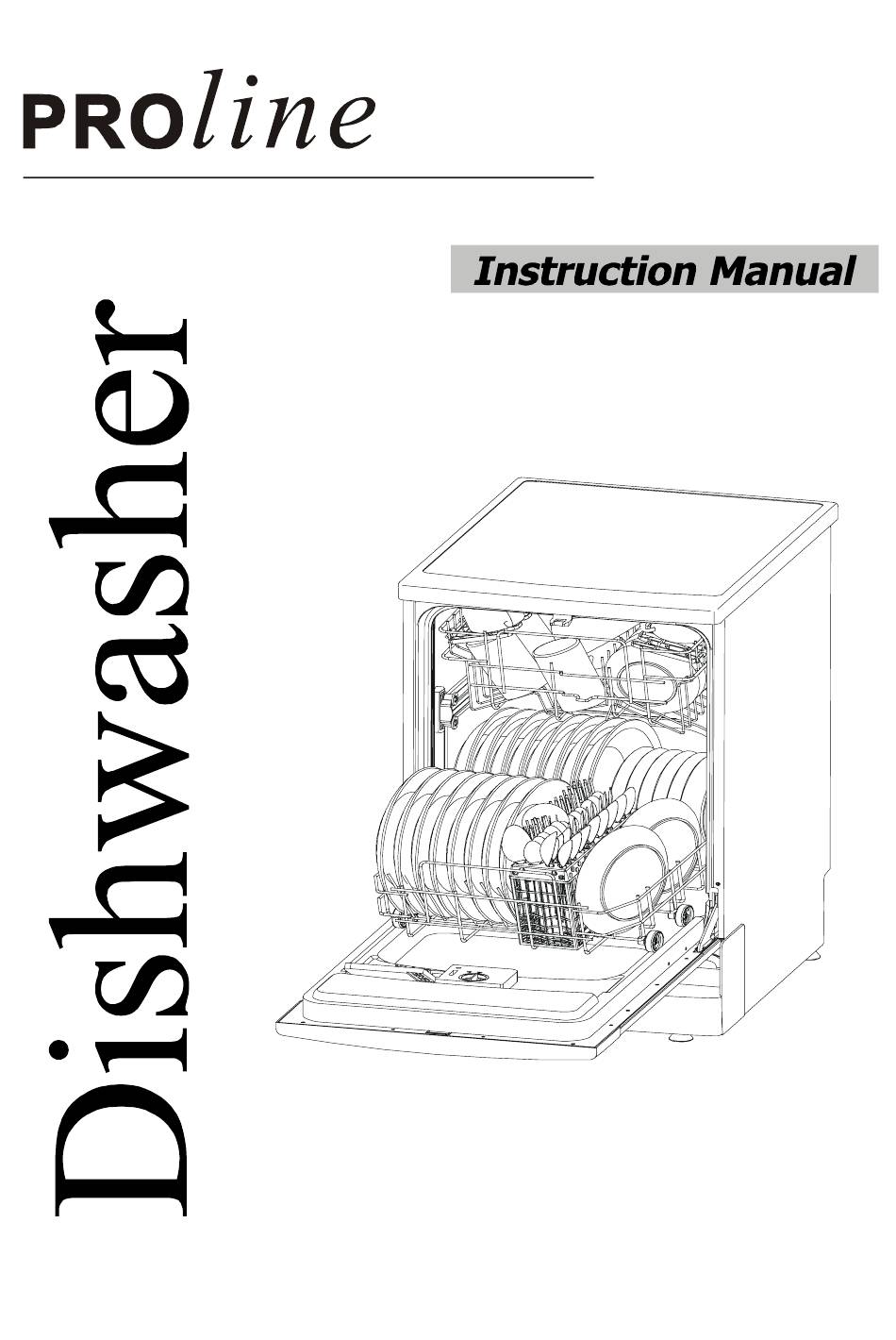

  • Page 1 12 place settings dishwasher DWM12P...
  • Page 2 ....3 This manual contains sections of Safety Instructions,Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
  • Page 3 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not touch the heating element during or immediately after use. Do not place any heavy objects of stand on the door Do not wash plastic items unless they are marked when it is open.
  • Page 4 To get the best performance from your dishwasher,read all operating instructions before using it for the first time. " " Rapid Button: Only used with cycle " " Plus Button: Only used with cycle Door Handle: Pull it to open the door. Washing Program Selector: Turn the knob clockwise to select wash cycles.

  • Page 5: Control Panel

    Pre-rinse For normally soiled loads, -rinse such as pots , plates,glasses Wash (52 ℃) 5/22 gr. and lightly soiled pans. Rinse (70 ℃) standard daily cycle. Normal Wash Drying (IEC-EN 50242) Pre-rinse For the heaviest soiled loads, -rinse( 2℃ such as pots,pans,casserole Wash (60 ℃) Intensive dishes and dishes that have...
  • Page 6 There are two ways to reduce the water hardness: one way is using water softener, the other is using detergent. The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

  • Page 7: Wash Cycle Table

    DO NOT ADD TOO MUCH DETERGENT TO PREVENT THE FORMATION OF DEPOSITS BECAUSE YOUR DISHWASHERS AS A SPECIALLY-DESIGNED WATER SOFTENER FOR THIS PURPOSE The dispenser must be refilled before the start of each wash cycle following the instructions provided in the" Wash Cycle Table".Your dishwashers use less detergent and rinse aid than conventional dishwashers.
  • Page 8 As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 full 1 / 2 full 1 / 4 full - Should refill to eliminate spotting Empty The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).

  • Page 9: Detergent

    Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the front of the upper rack.

  • Page 10: Spray Arms

    For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
  • Page 11 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish.
  • Page 12 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. Please note that the cold water connection method is the recommended connection for this appliance. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities.
  • Page 13 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.

  • Page 14: Water Softener

    Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
  • Page 15 Service If you have any questions regarding the installation or operation of your new appliance please contact our help line on 0113 2793520 during normal office hours. (Please note: you can not book a service call through this number). If you require a Service Engineer to callThe number is 0870 5425425 Environmental Notes: Do not dispose of your packaging materials with normal household waste.
