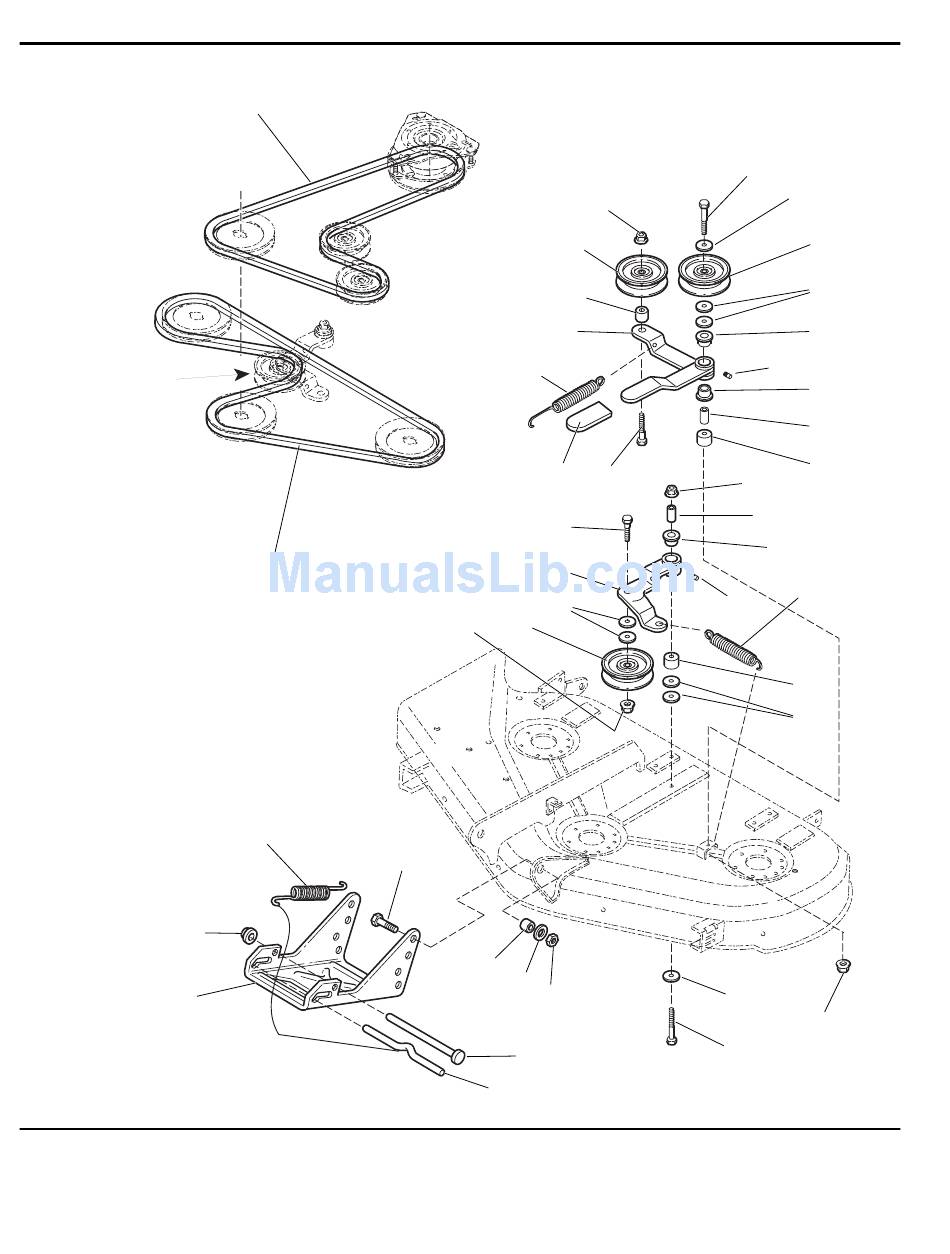

44" Mower Deck - Belt, Clutch & Support - Simplicity ZERO TURN TP 400-2169-01-ZT-SMA Parts Manual

44" Mower Deck - Belt, Clutch & Support
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
ARBOR
PULLEY
ARBOR DRIVE
PULLEY
MOVABLE IDLER
PULLEY
ARBOR DRIVE
PULLEY
29
28
Hook Spring here
when assembled.
The above parts group applies to the following Mfg. Nos.:
1692914 44" Mower Deck
1692915 44" Mower Deck
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.
1
MOVABLE IDLER
PULLEY
FIXED IDLER
PULLEY
ARBOR DRIVE
PULLEY
2
30
31
ENGINE
PULLEY
3
4
5
6
7
8 9
18
19
11 11
20
3
25
11
24
26
27
36
A-42516B
10
11
12
11 11
13
14
13
15
16
3
17
13
21
14
16
22 22
22
3
23
TP 400-2169-00-ZT-SMA
