January 15, 2019
Lit. No. 43828, Rev. 02
SP-1575, SP-1875

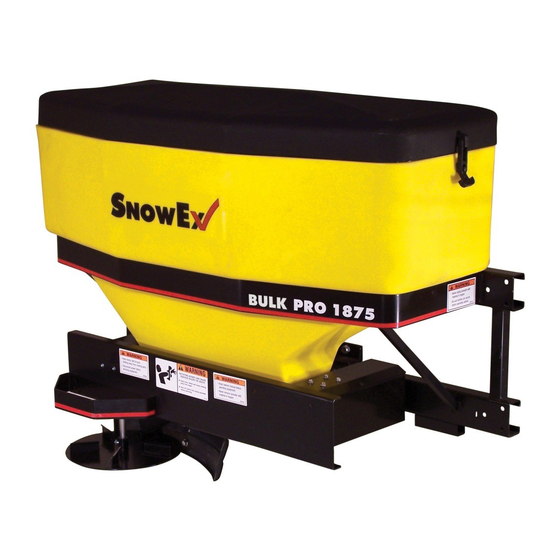

Bulk Pro™ Tailgate Spreader
Owner's Manual and Installation Instructions
Original Instructions
CAUTION
Read this manual before installing or operating
the spreader.
This manual is for SnowEx
SP-1575 spreaders with serial numbers beginning 141114 through 160429
®
and SP-1875 spreaders with serial numbers beginning 141112 through 160429
This document supersedes all editions with an earlier date.
Advertisement
Table of Contents
Related Manuals for SnowEx Bulk Pro SP-1575
Summary of Contents for SnowEx Bulk Pro SP-1575
- Page 1 Original Instructions CAUTION Read this manual before installing or operating the spreader. This manual is for SnowEx SP-1575 spreaders with serial numbers beginning 141114 through 160429 ® and SP-1875 spreaders with serial numbers beginning 141112 through 160429 This document supersedes all editions with an earlier date.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............5 OPERATING THE SPREADER ........ 18 Warranty Registration ........... 5 Cab Control ............18 OWNER'S INFORMATION FORM ......5 Starting and Stopping the Motor ....18 SAFETY ..............6 Adjusting Auger/Spinner Speed ....18 LOADING ..............10 Auto-Reverse (AR) Feature ...... -
Page 5: Introduction
Warranty Registration This manual has been prepared to acquaint you with the safety information, operation, and maintenance of your new tailgate spreader. Please read this manual Follow the directions on the SnowEx Warranty ® carefully and follow all recommendations. This will Registration and Customer Survey form included in help ensure profi... -
Page 6: Safety
SAFETY INFORMATION SAFETY DEFINITIONS WARNING/CAUTION LABELS Please become familiar with the Warning and Caution WARNING labels on the spreader. Indicates a potentially hazardous situation that, if not avoided, could result in death or NOTE: If labels are missing or cannot be read, see serious personal injury. - Page 7 SAFETY INFORMATION SERIAL NUMBER LABEL Madison Heights, MI 48071 U.S.A. 1-800-725-8377 trynexfactory.com Model No. SP0000 Serial No. 000000000000SP0000 Manuf. 2014 Madison Heights, MI 48071 U.S.A. 1-800-725-8377 trynexfactory.com Code Defi nition Model No. SP0000E 2-Digit Year 2-Digit Month 2-Digit Day Serial No. YYMMDDLLXXXXZZZZZZ 2-Digit Location Code XXXX 4-Digit Sequential Number...
- Page 8 SAFETY INFORMATION SAFETY PRECAUTIONS CAUTION • Do not operate a spreader in need of Improper installation and operation could cause maintenance. personal injury and/or equipment and property • Before operating the spreader, reassemble damage. Read and understand labels and this any parts or hardware removed for cleaning Owner's Manual before installing, operating, or or adjusting.
- Page 9 SAFETY INFORMATION FIRE AND EXPLOSION TORQUE CHART WARNING CAUTION Gasoline is highly fl ammable, and gasoline Read instructions before assembling. vapor is explosive. Never smoke while Fasteners should be fi nger tight until working on vehicle. Keep all open fl ames instructed to tighten according to the torque away from gasoline tank and lines.
-
Page 10: Loading
LOADING CERTIFICATION This manual covers vehicles that have been recommended for carrying the tailgate spreader. Please see your local dealer for proper vehicle WARNING applications. New untitled vehicle installation of a spreader requires National Highway Traffi c Safety WARNING Administration altered vehicle certifi cation Overloading could result in an accident or labeling. -
Page 11: Determining Vehicle Payload
LOADING MATERIAL WEIGHTS DETERMINING VEHICLE PAYLOAD WARNING WARNING Overloading could result in an accident or Do not overload vehicle. Use chart below damage. Do not exceed GVWR or GAWR to calculate weight of material. Weights of ratings as found on the driver-side door material are an average for dry materials. -
Page 12: Mounting The Spreader
MOUNTING THE SPREADER MODEL SP-1875 WARNING Spreader shall be bolted to vehicle frame. Mounts are sold separately for the SP-1875 model. Do not rely on the tie-down chains or straps Refer to the instructions packed with the selected alone to hold spreader in vehicle. mount. -
Page 13: License Plate Installation
MOUNTING THE SPREADER Always use the longer (1-1/2") cap screw and LICENSE PLATE INSTALLATION 1/2" washer to attach the corner of the hitch that fi ts (IF REQUIRED) behind the tab of the material chute. Install the license plate to the mounting holes in the frame using two 1/4"... -
Page 14: Electrical Harness Installation
ELECTRICAL HARNESS INSTALLATION 1. Route the vehicle harness along the vehicle CAUTION frame. Do not route it close to the exhaust system Do not alter, modify or install additional or engine, where extreme heat could melt the components in shaded areas shown below. wiring insulation and short out the spreader and Failure to comply may interfere with airbag vehicle electrical systems. - Page 15 ELECTRICAL HARNESS INSTALLATION 6. Connect the power cable leads to the battery: • Read lead labels before attaching to power source Red POSITIVE (+), Black NEGATIVE (–). If using or ground. a dual battery system, always connect to the primary battery. •...
-
Page 16: Harness & Control Diagrams
HARNESS & CONTROL DIAGRAMS VEHICLE HARNESS End View Mold Cap White 10 ga Red 10 ga Spinner (+) Auger (+) Green 10 ga Black 10 ga Auger (–) Spinner (–) Black 305" Orange 10 ga Blue 12 ga Vibrator (–) Vibrator (–) Spinner (+) 10 ga White Spinner (–) 10 ga Black... - Page 17 HARNESS & CONTROL DIAGRAMS SPREADER HARNESS Vibrator 2" 52" Male Auger Motor Female Male Spinner Female 2" 36" Spinner (+) Spinner (–) Auger (+) Auger (–) Vibrator (+) Vibrator (–) CONTROL Vibrator Vibrator Black POSITIVE (+) NEGATIVE (–) Auger Black NEGATIVE (–) Auger POSITIVE (+) Black...
-
Page 18: Operating The Spreader
OPERATING THE SPREADER CAB CONTROL WARNING Never operate equipment when under the Power ON/OFF Auger Speed Spinner Speed infl uence of alcohol, drugs, or medications that Switch Dial Dial might alter your judgment and/or reaction time. WARNING Never exceed 45 mph (72 km/h) when loaded spreader is attached to vehicle. -
Page 19: Auto-Reverse (Ar) Feature
OPERATING THE SPREADER Auto-Reverse (AR) Feature CONTROLLING FLOW OF MATERIAL If your control displays "OL," this could indicate a The factory installed material baffl e in the spreader jammed auger. Running the auto reverse (AR) function stops fi ne materials from free fl owing. When dense can often clear the jam. -
Page 20: Maintenance
MAINTENANCE AFTER EACH USE WARNING Never remove the spreader with material in CAUTION the hopper. DO NOT leave unused material in hopper. Material can freeze or solidify, CAUTION causing unit to not work properly. Disconnect electric power at spreader Empty and clean after each use. electrical wiring harness connection and tag out if required before servicing or performing •... -
Page 21: Troubleshooting
TROUBLESHOOTING Please see your SnowEx ® distributor for service. The troubleshooting reference table below and the diagrams on the following pages may also guide you in diagnosing the issue. Before servicing the spreader: • Review all safety information. • Confi rm that all electrical connections are tight and clean. - Page 22 TROUBLESHOOTING Spreader Does Not Run Control turns on, Defi nition: Switch OFF & ON beeps, shuts off, OL code Amperage draw Jammed material for auto-reverse Clear jam. displays error code. too high function. 4A to 20A draw, Bad motor; no load — good contact distributor.
- Page 23 TROUBLESHOOTING Material Flow Issues Material free Check baffl e 18" correct length Material issue. fl ows. length. Check baffl e Should touch Material issue. position. hopper on 3 sides. Material does not Turn on vibrator. fl ow. Material Remove Material issue. obstruction.
- Page 24 Do not exceed vehicle ratings with a spreader. TrynEx International offers a limited warranty for all spreaders and accessories. See separately printed page for this important information. The following are registered ( ) or unregistered (™) ® trademarks of Douglas Dynamics, LLC: Bulk Pro™, SnowEx , TrynEx ® ®...
