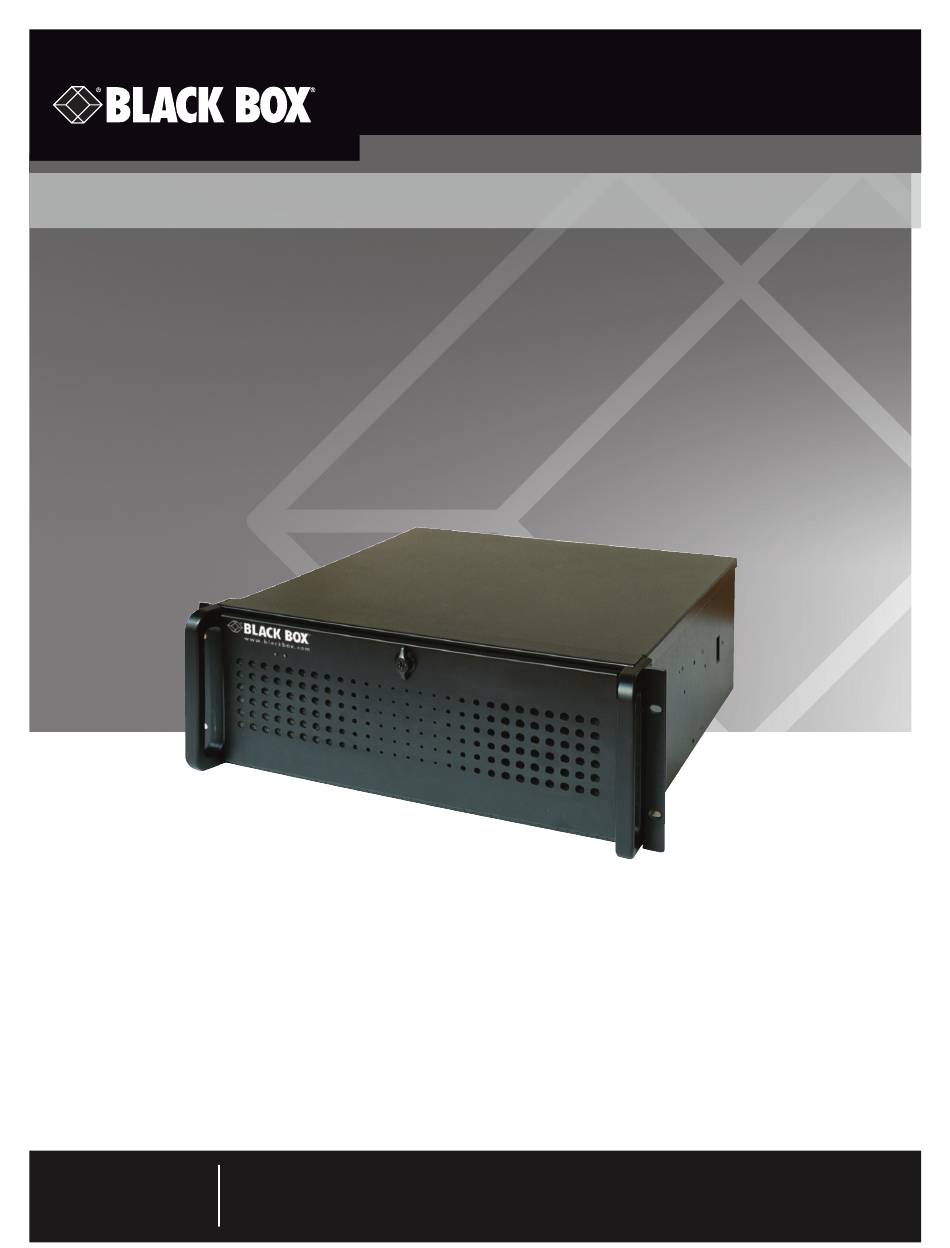

Radian
Video Wall Processor Quick Start Guide
™
Create large-scale video walls to visualize mission-
critical information.
Designed for use in command centers, control rooms,
and other 24/7 mission-critical operations centers.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Support
www.blackbox.com • info@blackbox.com
Information
VWP-2090
VWP-2110
BLACK BOX
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box Radian VWP-2090
Summary of Contents for Black Box Radian VWP-2090
- Page 1 VWP-2090 VWP-2110 Radian Video Wall Processor Quick Start Guide ™ BLACK BOX ® Create large-scale video walls to visualize mission- critical information. Designed for use in command centers, control rooms, and other 24/7 mission-critical operations centers. Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
-
Page 2: Table Of Contents
Quick Start Guide Table of Contents 1. Keyboard and Mouse................................2 2. Connect Expansion Chassis (Optional)...........................3 3. Connect to a Network (Optional) ............................3 4. Connect Input Source ................................3 5. Connect Control Screen (Optional) and Monitors .........................4 6. Powering Up the System ...............................5 7. -
Page 3: Connect Expansion Chassis (Optional)
Quick Start Guide 2. Connect Expansion Chassis (Optional) Connect the HLink-G3 card to the SLink-G3 card using the ExCable. (ExCable-G3, packaged and shipped with the expansion unit.) 3. Connect to a Network (Optional) Network cable not supplied. 4. Connect Input Source Each Radian Video Wall Processor Chassis is custom built. -
Page 4: Connect Control Screen (Optional) And Monitors
Quick Start Guide 5. Connect Control Screen (Optional) and Monitors Many of our wall controllers are configured to use a control screen prior to leaving the factory. If required, connect the control screen to the SBC as shown above. If a control screen is not required, the BIOS settings may require changing. See User Guide for detailed instructions. -
Page 5: Powering Up The System
Quick Start Guide 6. Powering Up the System 1. Connect power cables. Then plug into the wall outlet. 2. Switch on the power supply units. 3. Switch on the system. If you have a VSN Expansion Chassis connected to the main unit the power supply units on the expansion chassis should be switched on prior to the main unit. -
Page 6: Activate Windows 7
Quick Start Guide 8. Activate Windows ® Select the appropriate method available. To view the Product Key, open the front door panel. The Product Key label is displayed on the front panel of the system. 9. Display Setup All Radian Video Wall Processors have pre-configured settings for the wall layout and screen resolution. Change settings using the TWIN tab: 724-746-5500 | blackbox.com Page 6... -
Page 7: Wall Control (Optional)
Quick Start Guide 10. Wall Control (Optional) Select the appropriate method available. To view the Product Key, open the front door panel. The Product Key label is displayed on the front panel of the system. The icons displayed in the application tool bar identify what type of source is available to each input Icons highlighted green indicate an active capture for that particular input. - Page 8 About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available..
