- A RH rotation SPLENDIMO T disc mower element can
be identified as follows.
When the hub is turned to the right (R: fig. A-4) the drive
gear on the RH side will turn anti-clockwise (viewed
from the rear).
- A LH rotation SPLENDIMO T disc mower element can
be identified as follows.
When the hub is turned to the left (L: fig. A-4), the drive
gear on the RH side will also turn anti-clockwise .
Make sure that the mower discs are turned 90° in respect
!
of one another. If a unit can not be slid onto the drive shaft
in one go, its disc needs to be turned a semi-turn one or
several times until the unit can be placed.
- After disassembly of a disc:
• check the presence of the O-ring in the pressure piece
(11, fig. A-1).
• Tighten the castellated nut (12) with a torque of 150-250
Nm (15-25 kgm) and secure it with a split pin. Make sure
that the split pin does not protrude above the pressure
piece.
- The securing disc (13) and supporting ring have to be fitted
in the outer mowing element. If this element is replaced,
these parts need to be moved over to the new unit.
- Apply grease (Molykote BR 2 Plus) to the ring (8) as well
as to the threaded part of the connecting rod (3) and nut (7).
Fit the nut on the rod.
- Tighten the nut (7).
Torque : 950Nm (95 kgm).
This torque is realised by extending your wrench with a
150 cm long pipe (fig. A-4) and by then applying a force of
635 N (63,5 kg).
When fitting the securing plate the nut should be tightened
and is not allowed to be unscrewed.
Only for SPLENDIMO 360 T mower:
- Fit the additional coupling bar (diagram A-2) as follows:
• Mount the coupling bar complete with support arm (C)
and spacer (D).
• Fit the bolts (B) and spring washers (half-fastened).
• Tighten the nut (A) with a torque of 950 Nm.
• Tighten the bolts (B) with a torque of 300 Nm.
Supplement A
L
R
950 Nm
(95 kgm)

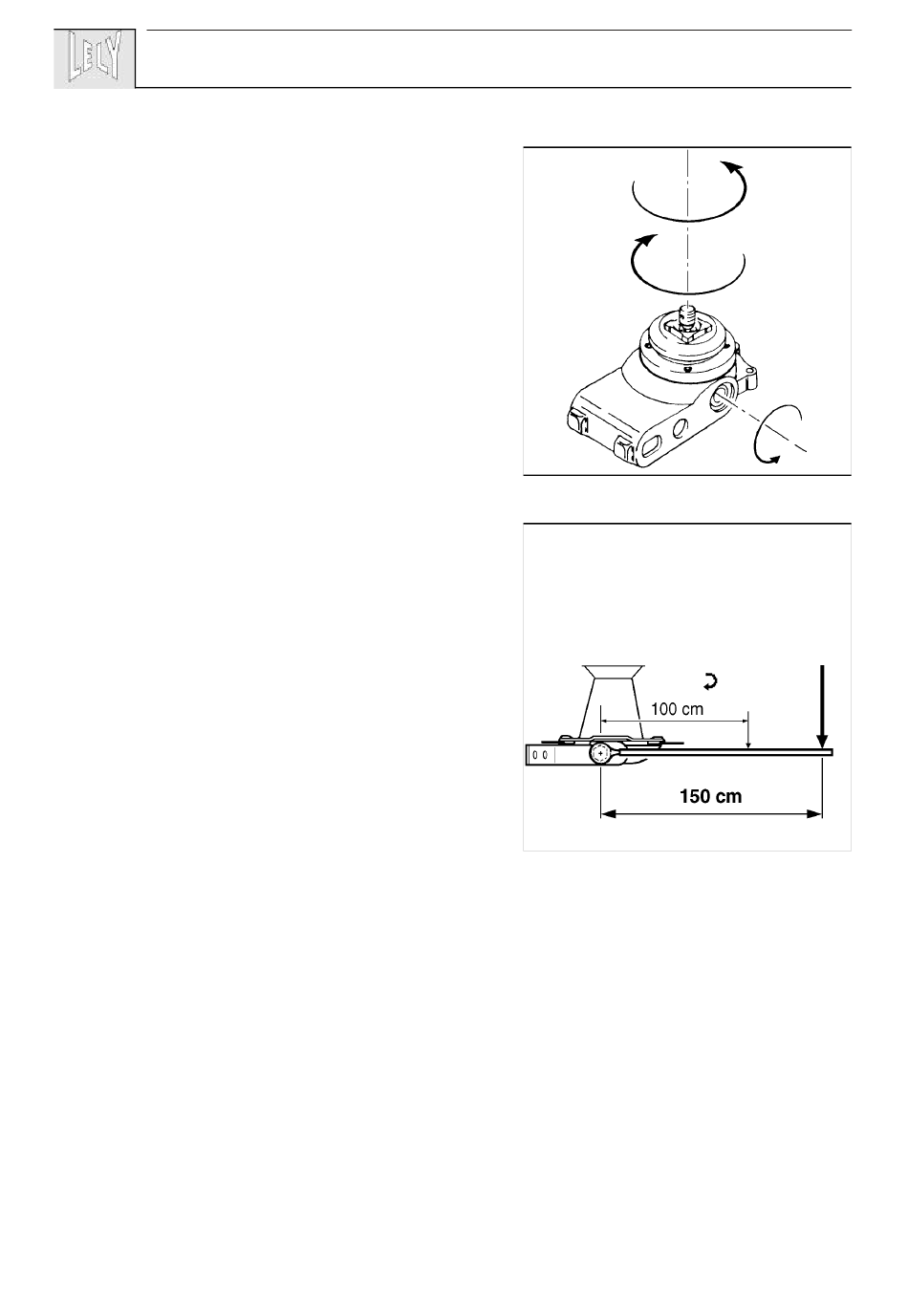

A-4
635 N
63.5 kg
A-5
