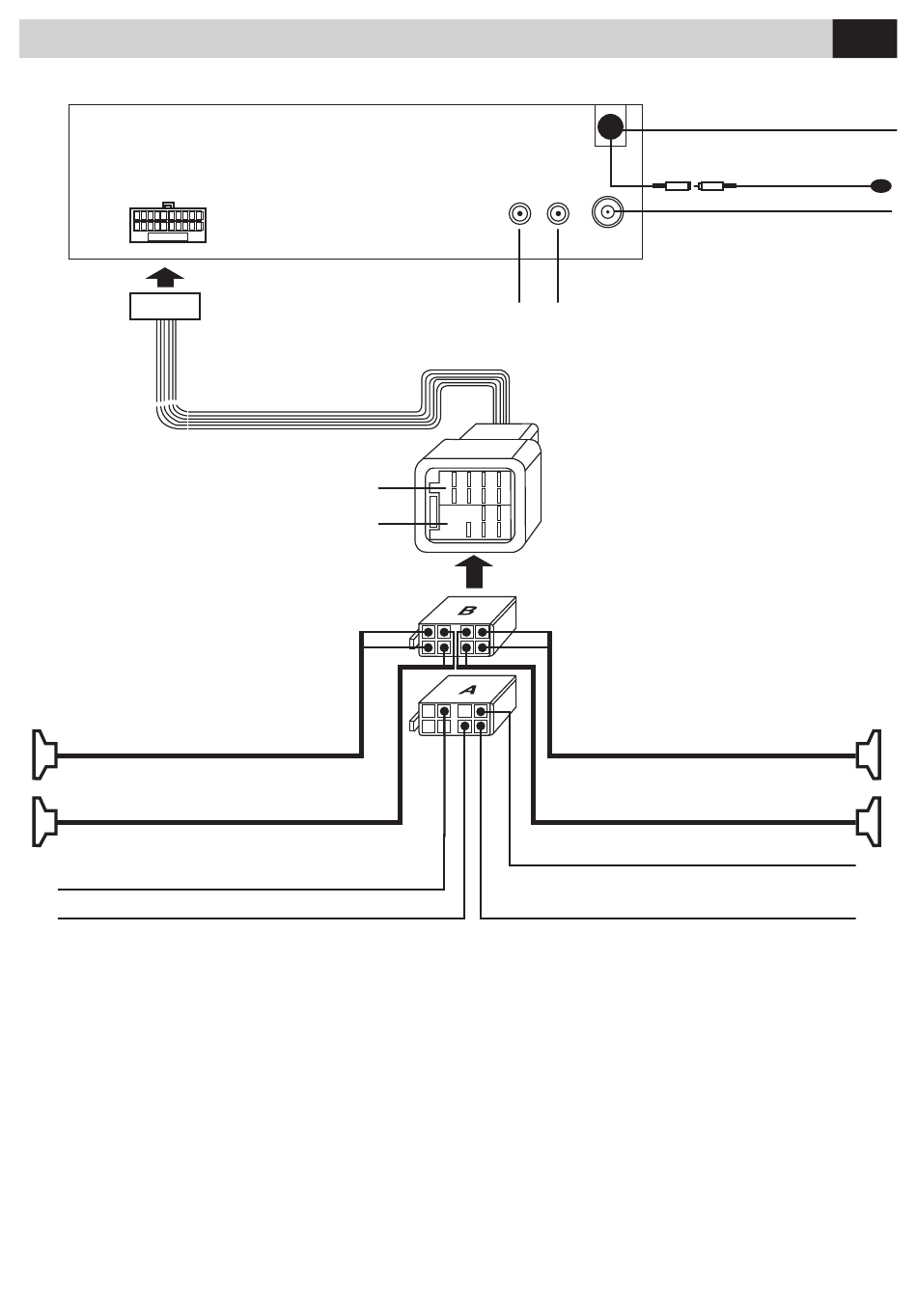

Connessioni • Connections
GRIGIO AP ANTERIORE DX
GREY SPEAKERS FRONT DX
VIOLA AP POSTERIORE DX
VIOLET SPEAKERS REAR DX
+12V GIALLO PERMANENTE
YELLOW MEMORY BACK-UP
+ BLU / BLUE REMOTE
BIANCO
WHITE SX
USCITA / OUTPUT
AUDIO
B
1 3 5 7
2 4 6 8
A 5 7
4 8
3
COMANDI AL VOLANTE
STEERING WHEEL COMMANDS
ROSSO
RED DX
BIANCO AP ANTERIORE SX
WHITE SPEAKERS FRONT SX
VERDE AP POSTERIORE SX
GREEN SPEAKERS REAR SX
- NERO MASSA / BLACK GROUND
+12V ROSSO SOTTOCHIAVE
RED IGNITION SWITCH
IT/EN
MICROFONO
MICROPHONE
ANTENNA
AERIAL
