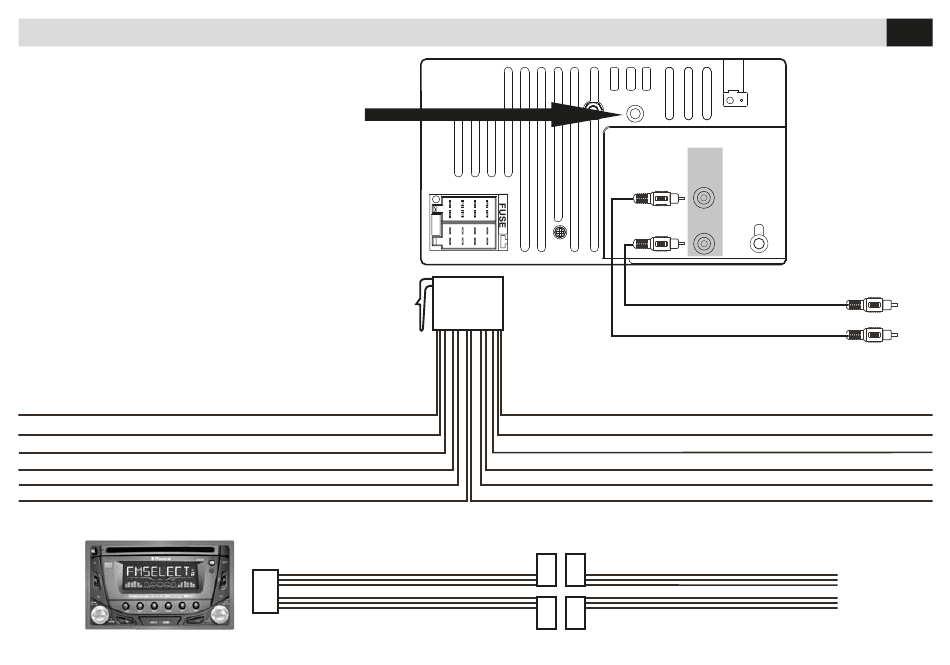

CONNESSIONI • CONNECTIONS
USCITA PER COMANDI AL VOLANTE
STEERING WHEEL COMANDS OUTPUT
+12V ROSSO SOTTOCHIAVE / RED IGNITION SWITCH
+ BLU / BLUE REMOTE
+ BIANCO AP ANTERIORE SX / WHITE SPEAKERS FRONT LEFT
- BIANCO-N AP ANTERIORE SX / WHITE-BLACK SPEAKERS FRONT LEFT
+ VERDE AP POSTERIORE SX / GREEN SPEAKERS REAR LEFT
- VERDE-N AP POSTERIORE SX / GREEN-BLACK SPEAKERS REAR LEFT
CAVO AUTORADIO / CAR RADIO CABLE
IR JACK
+12V GIALLO PERMANENTE / YELLOW MEMORY BACK-UP
- NERO MASSA / BLACK GROUND
+ GRIGIO AP ANTERIORE DX / GREY SPEAKERS FRONT RIGHT
- GRIGIO-N AP ANTERIORE DX / GREY-BLACK SPEAKERS FRONT RIGHT
+ VIOLA AP POSTERIORE DX / VIOLET SPEAKERS REAR RIGHT
- VIOLA-N AP POSTERIORE DX / VIOLET-BLACK SPEAKERS REAR RIGHT
CONNETTORI AUTO / CAR CONNECTORS
2
OUT
Rear
LEFT
ANTENNA
AERIAL
Rear
RIGHT
IT/GB
