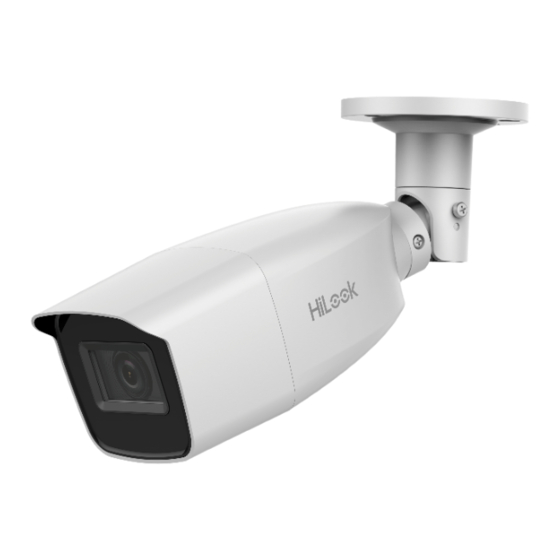

Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model THC-B310-VF Type I Camera Type II Camera THC-T310-VF Type III Camera THC-D310-VF...
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 3
Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
Page 4
Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
1.2.3 Overview of Type III Camera Switch Button Mounting Base Power Cord DC12V 12 VDC Video Cable Black Liner Bubble Figure 1-3 Overview of Type III Camera 2 Installation Before you start: Make sure that the device in the package is in good ...
Page 6
4. Fix the camera to the ceiling with supplied screws. Figure 2-2 Fix the Camera to the Ceiling Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement wall, expansion bolts are required to fix the camera.
Page 7
Mark Notch Figure 2-4 Disassemble the Camera 2. Remove the mounting base from the camera body with a flat object, e.g., a coin 3. Paste the drill template to the place where you want to install the camera. 4. Drill the screw holes according to the drill template and the cable hole (optional) in the ceiling.
Page 8
Figure 2-7 Secure the Camera with Mounting Base 8. Connect the corresponding cables, such as power cord, and video cable. 9. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera according to the figure below to get an optimum angle.
3. Loosen the screws on the bubble of the dome camera to remove the bubble and the black liner. 4. Attach the mounting base to the ceiling, and secure them with supplied screws. Figure 2-10 Secure the Mounting Base Note: In the supplied screw package, both self-tapping ...
Page 10
2. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor. 3. Click PTZ Control to enter the PTZ Control interface. 4. Call the camera menu by clicking button, or click Iris+. BRIGHTNESS EXPOSURE MODE DWDR RETURN...
Page 11
EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, or BLC. GLOBAL GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness. BLC (Backlight Compensation) BLC (Backlight Compensation) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong.
from 0 to 3. The higher the value, the more obvious effects are. 3.3.3 VIDEO SETTING Move the cursor to VIDEO SETTING and click Iris+ to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, and DNR are adjustable. Figure 3-5 VIDEO SETTING CONTRAST This feature enhances the difference in color and light among parts of an image.
