Bullet & Turret & Dome
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Type I Camera
Type II Camera
Type III Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
User Manual

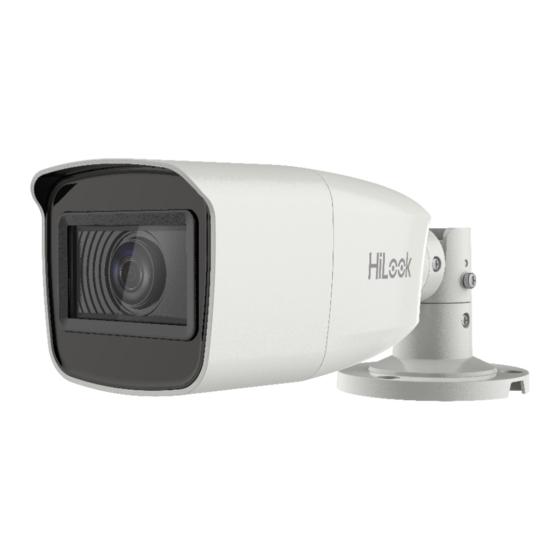

Model
THC-B323-Z
THC-T323-Z
THC-D323-Z
HD VF
Camera
0100001080820
Advertisement
Table of Contents
Related Manuals for HiLook THC-B323-Z
Summary of Contents for HiLook THC-B323-Z
- Page 1 This manual applies to the models below: Type Model Type I Camera THC-B323-Z Type II Camera THC-T323-Z Type III Camera THC-D323-Z This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
- Page 5 1.2.3 Overview of Type III Camera Switch Button Mounting Base Power Cord DC12V 12 VDC Video Cable Black Liner Bubble Figure 1-3 Overview of Type III Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.
-
Page 6: Menu Description
2 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call the preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 2-1. Figure 2-1 Connection 2. -
Page 7: Video Format
3). Click left/right direction button to adjust the value of the selected item. 2.1 VIDEO FORMAT You can select the video format as 2MP@25fps , or 2MP@30fps. Note: When switching the video output as CVBS, you can set the video format as PAL, or NTSC. 2.2 EXPOSURE You can set the EXPOSURE MODE as GLOBAL, BLC, or WDR. -
Page 8: Video Settings
Figure 2-3 DAY NIGHT IR LIGHT You can turn on/off the IR Light to meet the requirements of different circumstances. SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. -
Page 9: Image Mode
IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it as STD (Standard) or HIGH-SAT (High Saturation). BRIGHTNESS Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image.
