HD Vari-Focal Bullet &
Turret & Dome Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model

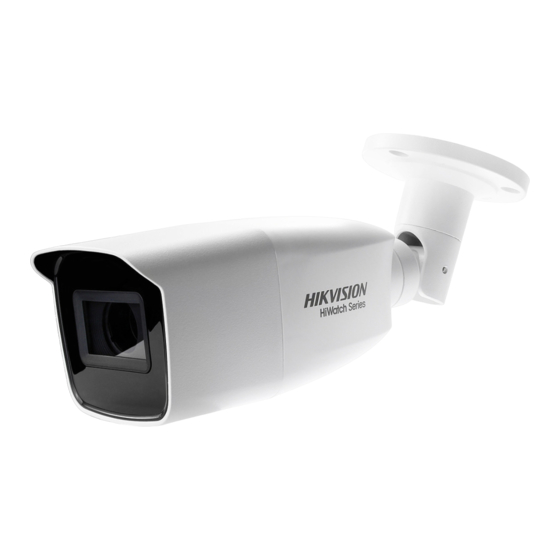

HWT-B320-VF/HWT-B340-VF
Type I Camera
Type II Camera
HWT-T320-VF/HWT-T340-VF
Type III Camera
HWT-D320-VF/HWT-D340-VF
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001071226
Advertisement
Table of Contents
Related Manuals for HiLook HWT-B320-VF
Summary of Contents for HiLook HWT-B320-VF
- Page 1 Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Type Model HWT-B320-VF/HWT-B340-VF Type I Camera Type II Camera HWT-T320-VF/HWT-T340-VF Type III Camera HWT-D320-VF/HWT-D340-VF...
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
- Page 5 1.2.3 Overview of Type III Camera Switch Button Mounting Base Power Cord DC12V 12 VDC Video Cable Black Liner Bubble Figure 1-3 Overview of Type III Camera ote: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.
-
Page 6: Installation
2 Installation Before you start: Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the ... - Page 7 Note: The supplied screw package contains self-tapping screws, and expansion bolts. For cement wall, expansion bolts are required to fix the camera. For wooden wall, self-tapping screws are required. 5. Connect the corresponding power cord, and video cable. 6.
- Page 8 Figure 2-5 Drill Template Note: Drill the cable hole, when adopting the ceiling outlet to route the cable. 5. Attach the mounting base to the ceiling, and secure them with supplied screws Method 1 Method 2 Figure 2-6 Attach the Mounting Base to the Ceiling Note: The supplied screw package contains self-tapping ...
- Page 9 Figure 2-8 3-axis Adjustment 1). Rotate the enclosure to adjust the pan position [0° to 360°]. 2). Move the camera body up and down to adjust the tilt position [0° to 75°]. 3). Rotate the camera body to adjust the rotation position [0°...
- Page 10 For cement ceiling, expansion bolts are required to fix the camera. For wooden ceiling, self-tapping screws are required. 5. Route the cables through the cable hole, or the side opening. 6. Connect the corresponding cables, such as power cable and video cable. 7.
-
Page 11: Menu Description
3 Menu Description Purpose: Call the menu by clicking the button on the PTZ Control interface, or click Iris+. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection 2. - Page 12 3.1 FORMAT You can set the format as 4MP@30fps, 4MP@25fps, 2MP@30fps, or 2MP@25ps. 3.2 EXPOSURE Exposure describes the brightness-related parameters, which you can set the EXPOSURE MODE as GLOBAL, BLC, or DWDR. GLOBAL GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness.
-
Page 13: Video Settings
AUTO Automatically switch Color, or BW (Black and White) according to actual scene brightness. You can turn on/off the IR LIGHT, and set the value of SMART IR in this menu. Figure 3-4 AUTO IR LIGHT You can turn on/off the IR LIGHT to meet the requirements of different circumstances. -
Page 14: Factory Default
CONTRAST This feature enhances the difference in color and light between parts of an image. You can set the CONTRAST value from 1 to 9. SHARPNESS Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9.
