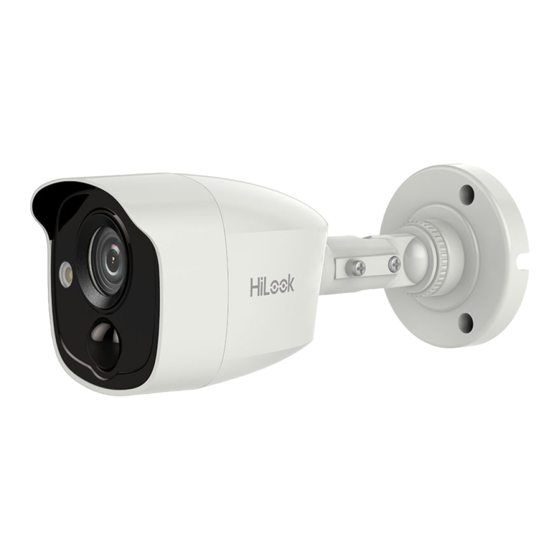

HiLook THC-B120-MPIRL User Manual

Turbo hd bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TURBO HD
Bullet Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Model
THC-B120-MPIRL
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
0200001080625

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THC-B120-MPIRL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HiLook THC-B120-MPIRL

Summary of Contents for HiLook THC-B120-MPIRL

  • Page 1 This manual applies to the models below: Model THC-B120-MPIRL This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual.

  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 4 Keep the camera away from liquid while in use for  non-water-proof device. While in delivery, the camera shall be packed in its  original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage...
  • Page 5 1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor  IR cut filter with auto switch  OSD menu with configurable parameters  Auto white balance  Internal synchronization  SMART IR mode  Visible alarm ...

  • Page 6: Menu Description

    2 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call the preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. Figure 2-1 Connection 2.

  • Page 7: Video Format

    1). Click up/down direction button to select the item. 2). Click Iris + to confirm the selection. 3). Click left/right direction button to adjust the value of the selected item. 2.1 VIDEO FORMAT You can select the video format as 2MP@25fps , or 2MP@30fps.

  • Page 8: Video Settings

    The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3. The greater the value is, the more obvious effects are.

  • Page 9: Alarm Mode

    MIRROR OFF, H, V, and HV are selectable for mirror. OFF: The mirror function is disabled. H: The image flips 180° horizontally. V: The image flips 180° vertically. HV: The image flips 180° both horizontally and vertically. 2.5 FUNCTIONS 2.5.1 WHITE LIGHT The embedded white light source can be worked as the visible alarm.

  • Page 10: Factory Default

    2.5.2 PIR LEVEL PIR LEVEL adjusts the sensitivity of the PIR module, and the greater the value is, the more sensitive the PIR module is. 2.6 FACTORY DEFAULT Reset all the settings to the factory default. 2.7 EXIT Move the cursor to EXIT and click Iris+ to exit the menu. 2.8 SAVE &...
