highwood Lehigh AD-CHGL1 Assembly Manual

Lehigh Collection

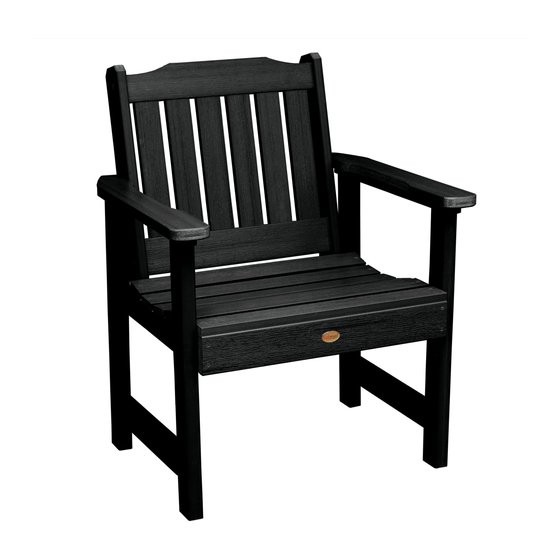

Garden Chair
Assembly Guide
IMPORTANT!
DO NOT fully tighten the bolts until all bolts are started.
Once all bolts are inserted, go back & tighten all the bolts.
HARDWARE INCLUDED
A
1/4-20 x 1.5"
B
1/4-20 x 2"
C
1/4-20 x 3"
SEAT
B
LEG/ARM
Qty: 2
Qty: 4
BACK
A
C
BACK ALIGNMENT
For information on Care and Cleaning or to Register your
highwood product, please visit www.highwood-usa.com.
Qty: 4
STEPS 1-2-3 ASSEMBLY
Attach Seat to Leg/Arm using
(2) B bolts and (2) C bolts.
(Align Back as shown for C bolts)
Attach Back to Leg/Arm
using (1) A bolt
Repeat on other Side.
TOOLS INCLUDED
5/32" HEX KEY
AD-CHGL1|AD-CHGW1
03.17.21
PAGE 1 OF 2
