- Page 1 Product Technical Specification AirPrime HL8518, HL8528 and HL8529 4117047 December 18, 2015...
- Page 2 Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property.
- Page 3 This product may contain technology developed by or for Sierra Wireless Inc. This product includes technology licensed from QUALCOMM ® This product is manufactured or sold by Sierra Wireless Inc. or its affiliates under one or more patents licensed from InterDigital Group and MMP Portfolio Licensing. Copyright ©...
- Page 4 Product Technical Specification Document History Version Date Updates May 20, 2015 Creation Updated: 1 Introduction Error! Reference source not found. Error! Reference source not found. May 29, 2015 Error! Reference source not found. Error! Reference source not found. ...
-
Page 5: Table Of Contents
Contents INTRODUCTION ....................9 1.1. Common Flexible Form Factor (CF ) ................9 1.2. Physical Dimensions ..................... 10 1.3. General Features ......................10 1.4. Encryption Support ......................13 1.5. Architecture ........................13 ... - Page 6 Product Technical Specification 2.10. General Purpose Input/Output (GPIO) ................27 2.11. Main Serial Link (UART1) ....................28 2.11.1. Pin Description ....................... 28 2.11.2. 8-wire Application ....................29 2.11.3. 4-wire Application ....................29 ...
- Page 7 List of Figures Figure 1. Architecture Overview ....................13 Figure 2. Mechanical Overview ....................14 Figure 3. Power Supply During Burst Transmission ..............18 Figure 4. Power Supply Requirements ..................19 Figure 5. Power Supply Voltage Drops Shapes During Burst Transmission .........
- Page 8 List of Tables Table 1. Supported Bands/Connectivity ..................9 Table 2. General Features ......................10 Table 3. ESD Specifications ......................15 Table 4. Environmental Specifications ..................15 Table 5. Power Supply ........................ 17 ...
-
Page 9: Introduction

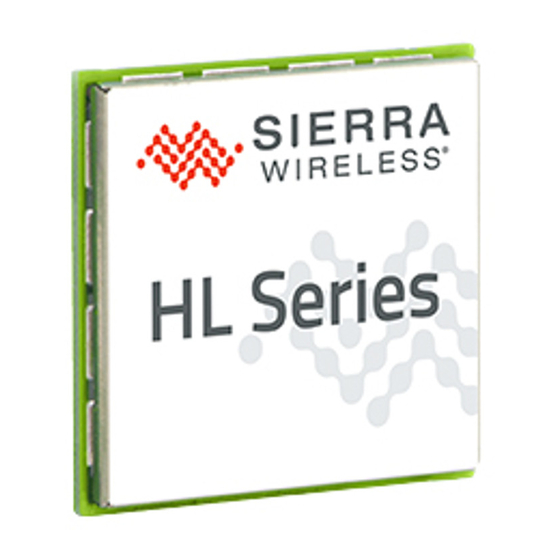

AirPrime HL8518, HL8528 and HL8529. The AirPrime HL8518, HL8528 and HL8529 modules belong to the AirPrime HL Series from the Essential Connectivity Module family. These are industrial grade Embedded Wireless Modules that provide voice and data connectivity on GPRS, EDGE RX, WCDMA, HSDPA and HSUPA networks (as listed in Table 1 Supported Bands/Connectivity). -
Page 10: Physical Dimensions
Product Technical Specification Introduction 1.2. Physical Dimensions The AirPrime HL8518, HL8528 and HL8529 modules are compact, robust, fully shielded modules with the following dimensions: Length: 23 mm Width: 22 mm Thickness: 2.5 mm Weight: 2.65 g Note: Dimensions specified above are typical values. - Page 11 Product Technical Specification Introduction Feature Description Dual SIM Single Standby (DSSS) with fast network switching capability 1.8V/3V support SIM extraction / hot plug detection SIM interface SIM/USIM support Conforms with ETSI UICC Specifications. Supports SIM application tool kit with proactive SIM commands ...
- Page 12 Product Technical Specification Introduction Feature Description HSPA+ (Evolved High Speed Packet Access) Compliant with 3GPP Release 7 Higher-Order Modulation (HOM) MAC-ehs support Protocol Stack Continuous Packet Connectivity (CPC) Enhanced F-DPCH Enhanced Cell FACH ...
-
Page 13: Encryption Support
UMTS integrity algorithm f9 for message authentication (Kasumi based UIA1 and SNOW 3G based UIA2) 1.5. Architecture The figure below presents an overview of the AirPrime HL8518, HL8528 and HL8529 modules internal architecture and external interfaces. AirPrime HL8518, HL8528 and HL8529 RX_DCS... -
Page 14: Interfaces
1x – GSM Antenna 1.7. Connection Interface The AirPrime HL8518, HL8528 and HL8529 modules are an LGA form factor device. All electrical and mechanical connections are made through the 146 Land Grid Array (LGA) pads on the bottom side of the PCB. -
Page 15: Esd
Product Technical Specification Introduction 1.8. Refer to the following table for ESD Specifications. Note: Information specified in the following table is preliminary and subject to change. Table 3. ESD Specifications Category Connection Specification Operational RF ports IEC-61000-4-2 — Level (Electrostatic Discharge Immunity Test) Unless otherwise specified: ... -
Page 16: Regulatory
The AirPrime HL8518, HL8528 and HL8529 modules are compliant with the following regulations: R&TTE directive 1999/5/EC These compliances will be reflected on the AirPrime HL8518, HL8528 and HL8529 modules labels when applicable. 1.9.3. RoHS Directive Compliant The AirPrime HL8518, HL8528 and HL8529 modules are compliant with RoHS Directive 2011/65/EU which sets limits for the use of certain restricted hazardous substances. -
Page 17: Detailed Interface Specifications
VBATT and VBATT_PA connection if requirements below are fulfilled. 2.1. Power Supply The AirPrime HL8518, HL8528 and HL8529 modules are supplied through the VBATT signal. 2.1.1. Electrical Characteristics The following table describes the electrical characteristics of the Power Supply interface. -
Page 18: Burst Transmission Current Requirements
Product Technical Specification Detailed Interface Specifications 2.1.3. Burst Transmission Current Requirements The power supply must be able to deliver high current peaks in a short time due to the burst transmission nature of GSM. For supply filtering recommendations, please refer to section 2.3 Decoupling of Power Supply Signals. -
Page 19: Power Input (Vbatt)
Provide reference voltage VGPIO (through internal regulators) for the baseband signals. When the AirPrime HL8518, HL8528 and HL8529 modules are supplied with a battery, the total impedance (battery + protections + PCB) should be such that the supply will be >= 3.2 V during GSM burst mode operation drawing a maximum peak current of 2.2 A for 577 µs (one slot) or 1154 µs (two... -
Page 20: Current Dc Power Consumption
Power Supply Voltage Drops Shapes During Burst Transmission 2.4. Current DC Power Consumption The following table lists the current consumption of the AirPrime HL8518, HL8528 and HL8529 modules at different conditions. Note: The following data is under the setup recommended in section 3.5 Power Supply Design. -
Page 21: Table 9. Current Consumption Per Power Supply (Vbatt_Pa And Vbatt)
Product Technical Specification Detailed Interface Specifications Parameters Typical Maximum Band 1 1.1 mA 2.7 mA Band 2 1.3 mA 2.9 mA Sleep mode - WCDMA DRX9 (registered to the network) Band 5 1.3 mA 3.2 mA Band 8 1.1 mA 2.7 mA Band 1 620 mA... -
Page 22: Vgpio
Supply the digital transistors driving LEDs Act as a voltage reference for the ADC interfaces, ADC0 and ADC1 The VGPIO output is available when the AirPrime HL8518, HL8528 and HL8529 module is switched 2.5.1. Electrical Characteristics The following table describes the electrical characteristics of the VGPIO interface. -
Page 23: Electrical Characteristics
2.7. SIM Interface The AirPrime HL8518, HL8528 and HL8529 modules have one physical SIM interface, UIM1, which has optional support for dual SIM application with an external SIM switch. Refer to Section 3.8 Dual SIM Application for more information regarding dual SIM. -
Page 24: Electrical Characteristics
Product Technical Specification Detailed Interface Specifications 2.7.1. Electrical Characteristics The following table describes the electrical characteristics of the UIM1 interface. Table 14. Electrical Characteristics of UIM1 Parameter Remarks 3.15 The appropriate output UIM1 Interface Voltage : (V) voltage is auto detected ( VCC, CLK, IO, RST ) 1.65 1.80... -
Page 25: Uim1_Det
Product Technical Specification Detailed Interface Specifications 2.7.3. UIM1_DET UIM1_DET is used to detect and notify the application about the insertion and removal of a SIM device in the SIM socket connected to the main SIM interface (UIM1). When a SIM is inserted, the state of UIM1_DET transitions from logic 0 to logic 1. -
Page 26: Usb
2.9. Electrical Information I/O The AirPrime HL8518, HL8528 and HL8529 modules support different groups of digital interfaces with varying current drain limits. The following table enumerates these interface groupings and enumerates the electrical characteristics of each digital interface. The DC characteristics of the pads are compatible with CMOS JEDEC standard EIA/JESD8-5. -
Page 27: General Purpose Input/Output (Gpio)
= - 1.0mA : Output Voltage-High (V) VDD-0.2 = - 0.1mA 2.10. General Purpose Input/Output (GPIO) The AirPrime HL8518, HL8528 and HL8529 modules provide 12 GPIOs, 2 of which have multiplexes. Table 20. GPIO Pin Description Pin Number Signal Name... -
Page 28: Main Serial Link (Uart1)
This pin can be used to trigger the module to wake up from Sleep Mode. 2.11. Main Serial Link (UART1) The main serial link (UART1) is used for communication between the AirPrime HL8518, HL8528 and HL8529 modules and a PC or host processor. It consists of a flexible 8-wire serial interface that complies with RS-232 interface. -
Page 29: 2.11.2. 8-Wire Application
Product Technical Specification Detailed Interface Specifications 2.11.2. 8-wire Application Figure 7. 8-wire UART Application Example 2.11.3. 4-wire Application Figure 8. 4-wire UART Application Example 2.11.4. 2-wire Application Figure 9. 2-wire UART Application Example 4117047 Rev 2.2 December 18, 2015... -
Page 30: Power On Signal (Pwr_On_N)
Detailed Interface Specifications 2.12. POWER ON Signal (PWR_ON_N) A low level signal has to be provided to switch the AirPrime HL8518, HL8528 and HL8529 modules It is internally connected to the permanent 1.8V supply regulator inside the HL8518, HL8528 and HL8529 via a pull-up resistor. -
Page 31: Table 23. Reset_In_N Electrical Characteristics
Product Technical Specification Detailed Interface Specifications Note: As RESET_IN_N is referenced to the VGPIO domain (internally to the module), it is impossible to reset before the module starts or to try to use RESET_IN_N as a way to start the module. Another more costly solution would be to use MOS transistor to switch the power supply off and restart the power up procedure using the PWR_ON_N input line. -
Page 32: Design Guidelines
If required, the module can be switched off by controlling the power supply. This can be used, for example, when the system freezes and no reset line is connected to the AirPrime HL8518, HL8528 and HL8529 modules. In this case, the only way to get control over the module back is to switch off the power line. -
Page 33: Emergency Power Off
Product Technical Specification Design Guidelines Figure 13. Power OFF Sequence for PWR_ON_N, VGPIO Note: PWR_ON_N is internally pulled up by 200kΩ to 1.8V. Caution: Ensure that no external pull-ups are applied on IO pins while the module is OFF. 3.3. Emergency Power OFF If required, the module can be switched off by controlling the RESET_IN_N pin (pin 11). -
Page 34: Power Supply Design
3.5. Power Supply Design The AirPrime HL8518, HL8528 and HL8529 modules should not be supplied with voltage over 4.5V even temporarily or however briefly. If the system’s main board power supply unit is unstable or if the system’s main board is supplied with over 4.5V, even in the case of transient voltage presence on the circuit, the module’s power amplifier... -
Page 35: Esd Guidelines For Usb
3.8. Dual SIM Application Using an external switch and GPIOs, the AirPrime HL8518, HL8528 and HL8529 modules can support Dual SIM Single Standby with fast network switching. Refer to document [2] AirPrime HL6 and HL8 Series AT Commands Interface Guide for related AT commands. -
Page 36: Radio Frequency Integration
3.9. Radio Frequency Integration The AirPrime HL8518, HL8528 and HL8529 modules are equipped with an external antenna. A 50Ω line matching circuit between the module, the customer’s board and the RF antenna is required, for GSM feed path, as shown in the example below. -
Page 37: Regulatory Legal Information
4. Regulatory Legal Information 4.1. Label The AirPrime HL852x module is labeled with its own FCC ID on the shield side. Each HL852x variant has its own FCC ID as listed in the table below. Table 24. AirPrime HL852x FCC IDs Model Name FCC ID HL8528... -
Page 38: Rf Exposure Information
Product Technical Specification Regulatory Legal Information 4.3. RF Exposure Information This Modular Approval is limited to OEM installation for mobile and fixed applications only. The antenna installation and operating configurations of this transmitter, including any applicable source- based time-averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of §2.1091. -
Page 39: Ce Warning
Product Technical Specification Regulatory Legal Information Table 25. AirPrime HL852x IC Model Name HL8528 2417C-HL8528 HL8529 2417C-HL8529 This device complies with IC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the IC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. -
Page 40: Terms And Abbreviations
5. Terms and Abbreviations Abbreviation Definition Analog to Digital Converter Automatic Gain Control Attention (prefix for modem commands) CDMA Code Division Multiple Access Common Flexible Form Factor Clock CODEC Coder Decoder Central Processing Unit Digital to Analog Converter Data Terminal Ready EGNOS European Geostationary Navigation Overlay Service Electromagnetic Compatibility... - Page 41 Product Technical Specification Terms and Abbreviations Abbreviation Definition QZSS Quasi-Zenith Satellite System Radio Frequency Radio Frequency Interference Root Mean Square Reset Real Time Clock Receive Serial Clock Serial Data Subscriber Identification Module Surface Mounted Device/Design Serial Peripheral Interface Software PSRAM Pseudo Static RAM To Be Confirmed To Be Defined...
