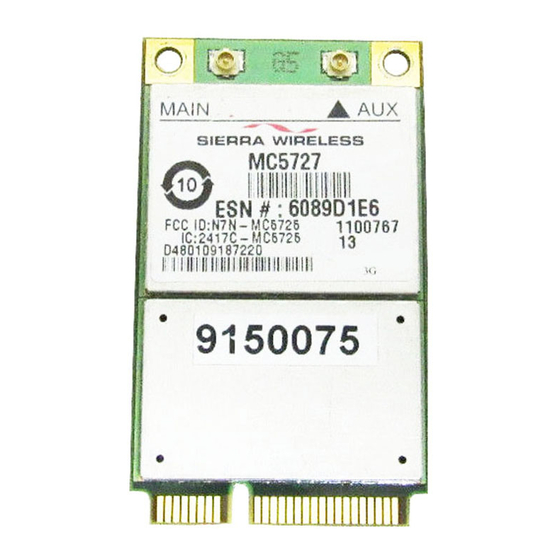

Sierra Wireless AirPrime series Hardware Integration Manual

Intelligent embedded modules
Hide thumbs
Table of Contents

Advertisement

Quick Links

AirPrime Intelligent Embedded
Modules
Hardware Integration Guide
2130114
Rev 2.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirPrime series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sierra Wireless AirPrime series

Summary of Contents for Sierra Wireless AirPrime series

  • Page 1 AirPrime Intelligent Embedded Modules Hardware Integration Guide 2130114 Rev 2.02...
  • Page 3 Notice totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed network, the Sierra Wireless modem should not be used in...
  • Page 4 AirPrime Embedded Module Hardware Integration Guide Patents ® This product includes technology licensed from QUALCOMM Manufactured or sold by Sierra Wireless Inc. or its licensees under one or more patents licensed from InterDigital Group. Copyright ©2010 Sierra Wireless. All rights reserved.

  • Page 5: Table Of Contents

    Contents Introduction ........... . .7 The Universal Development Kit .
  • Page 6 AirPrime Embedded Module Hardware Integration Guide Important compliance information for North American users... . 22 EU regulatory conformity ........23 Brazil ANATEL homologation .

  • Page 7: Introduction

    1: Introduction Sierra Wireless’ AirPrime Intelligent Embedded Modules form the radio component for the products in which they are embedded. Table 1-1 identifies embedded modules that are available for use on CDMA and GSM networks. Table 1-1: CDMA and UMTS AirPrime Intelligent Embedded Modules...

  • Page 8: The Universal Development Kit

    The Universal Development Kit Sierra Wireless manufactures a Universal Development Kit (UDK) that facilitates all phases of the integration process. This kit is a hardware development platform that is designed to support the AirPrime embedded modules listed in Table 1-1 on page 7.

  • Page 9: Related Documents

    Introduction Host/Module Interfaces on page 21 Describes the USB interface for host/module communication, and the USIM interface for host/module integration. Regulatory Information on page 21 Describes regulatory approvals and regulatory information requirements. Acronyms and Definitions on page 25 Lists acronyms and definitions used throughout this guide. Index on page 27 Note: The term "host"...
  • Page 10 AirPrime Embedded Module Hardware Integration Guide Table 1-2: Related documentation (Continued) Document title Description MC5728V Mini Card Product Specification Features, mechanical and electrical specifications, and standards (Document 2111350) compliance of the MC5728V. MC8201 PCI Express Mini Card Product Features, mechanical and electrical specifications, and standards Specification (Document 2131362) compliance of the MC8201.
  • Page 11 Introduction Table 1-2: Related documentation (Continued) Document title Description Mobile Station (MS) Conformance SIM testing methods. Specification; Part 4: Subscriber Interface Module (3GPP TS 11.10-4) PCI Express Mini Card Dev Kit Quick Start Setup and configuration of modules. Guide (Document 2130705) PCI Express Mini Card Electromechanical Specification Revision 1.1 Universal Serial Bus Specification, Rev 2.0...
  • Page 12 AirPrime Embedded Module Hardware Integration Guide Proprietary and Confidential 2130114...

  • Page 13: Power Interface

    2: Power Interface Overview of operation Note: This chapter contains information for both CDMA (MC57xx) and GSM (MC8xxx) AirPrime embedded modules. Information that is unique to specific module types is clearly identified. AirPrime embedded modules are designed to use a 3.3V (nominal) power supply (3.8V for the MC8201) provided by the host.

  • Page 14: Module Power States

    AirPrime Embedded Module Hardware Integration Guide This guide provides specific recommendations where needed, however, the level of protection required depends on your application. Note: ESD protection is highly recommended for the USIM connector at the point where the contacts are exposed, and for any other signals from the host interface that would be subjected to ESD by the user of the product.

  • Page 15: Normal State

    Power Interface Normal state Note: This is the default state when VCC is first This is the active state of the module. In this state: applied in the absence of control. W_Disable# • The module is fully powered. • The module is capable of placing/receiving calls or establishing data connec- tions on the wireless network.
  • Page 16 AirPrime Embedded Module Hardware Integration Guide Proprietary and Confidential 2130114...

  • Page 17: Rf Integration

    3: RF Integration AirPrime embedded modules operate on the following frequencies:. Table 3-1: RF Parameters (AirPrime UMTS embedded modules) AirPrime UMTS embedded module (MC8xxx) Frequencies (MHz) 8201 8355 8700 8704 8705 8775 8775V 8777V 8780 8781 8790 9890V 8791V 8792V 8795V 8801 GSM 850...

  • Page 18: Rf Connection

    AirPrime Embedded Module Hardware Integration Guide RF connection When attaching an antenna to the module: • Use a Hirose U.FL connector (model U.FL #CL331-0471-0-10) to attach an Note: To disconnect the antenna to a connection point on the module. antenna, make sure you Match coaxial connections between the module and the antenna to 50 ...

  • Page 19: Interference And Sensitivity

    RF Integration Developing custom antennas Consider the following points when developing custom-designed antennas: • A skilled RF engineer should do the development to ensure that the RF performance is maintained. • Identify the bands that need to be supported. Determining the antenna’s location Consider the following points when deciding where to put the antenna: •...

  • Page 20: Device-Generated Rf

    AirPrime Embedded Module Hardware Integration Guide • The Tx power and corresponding broadband noise of other wireless devices may overload or increase the noise floor of the module’s receiver, resulting in Rx desense. The severity of this interference depends on the closeness of the other antennas to the module’s antenna.

  • Page 21: Regulatory Information

    (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well- constructed network, the Sierra Wireless modem should not be used...

  • Page 22: Important Compliance Information For North American Users

    AirPrime Embedded Module Hardware Integration Guide Important compliance information for North American users The MC57xx/MC8xxx modem has been granted modular approval for mobile applications. Integrators may use the MC57xx/MC8xxx modem in their final products without additional FCC/IC (Industry Canada) certification if they meet the following conditions.

  • Page 23: Eu Regulatory Conformity

    SAR requirements of FCC Part 2.1093 and IC RSS-102. EU regulatory conformity Sierra Wireless hereby declares that the MC8700, MC8704, MC8705, MC8775, MC8775V, MC8780, MC8790, MC8790V, MC8791V, MC8792V, MC8795V, and MC8801 modems conform with all essential requirements of Directive 1999/5/...

  • Page 24: Brazil Anatel Homologation

    AirPrime Embedded Module Hardware Integration Guide Uxbridge, Middlesex UB11 1BD England Brazil ANATEL homologation (MC8790 somente) Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução 242/2000, e atende aos requisitos técnicos aplicados. Para maiores informações, consulte o site da ANATEL www.anatel.gov.br. Proprietary and Confidential 2130114...

  • Page 25: Acronyms And Definitions

    3G radio standards for voice and data (CDMA only) IS-95 2G radio standards targeted for voice (cdmaONE) Low Drop Out - refers to linear regulator MC5727/MC5727V/ Sierra Wireless AirPrime embedded modules used on CDMA networks MC5728V MC57xx Any of the following CDMA AirPrime embedded modules: MC5727/ MC5727V/MC5728V Rev 2.02 Sep.10...
  • Page 26 AirPrime Embedded Module Hardware Integration Guide Table B-1: Acronyms and definitions Acronym or term Definition MC8201/MC8700/ Sierra Wireless AirPrime embedded modules used on GSM/UMTS MC8704/MC8705/ networks MC8775/MC8775V / MC8780/MC8781/ MC8790/MC8790V/ MC8791V/MC8792V/ MC8795V/MC8801 MC8xxx Any of the following GSM/UMTS AirPrime embedded modules: MC8201/...

  • Page 27: Index

    Index Numerics electrostatic discharge. See ESD protection requirements, 13– 14 testing techniques document (IEC-61000-4-2), 9 CDMA Standard, 9 acronyms and definitions, 25– 26 regulations, relevant section, 9 antenna connection considerations, 18 custom, considerations, 19 limit, matching coaxial connections, 18 location, considerations, 19 grounding matching,...
  • Page 28 Document SubTitle MC8700 MC8792V AT reference (extended), 10 AT reference (extended), 10 AT reference (standard), 10 AT reference (standard), 10 CnS reference, and MC87xx, 10 CnS reference, and MC87xx, 10 networks supported, 7 CnS voice reference, and MC87xxV, 10 product specification, 10 networks supported, 7...
  • Page 29 Index regulatory information, 21– 24 testing Brazil, 24 ESD immunity, techniques document (IEC-61000-4-2), EU, 23 FCC, 22 limitation of liability, 21 safety and hazards, 21 UDK (Universal Development Kit) antenna cable loss, maximum, 18 components, included, 8 antenna connection, considerations, 18 Universal Development Kit (UDK) cable type, required, 8...
  • Page 30 Document SubTitle Proprietary and Confidential 2130114...
