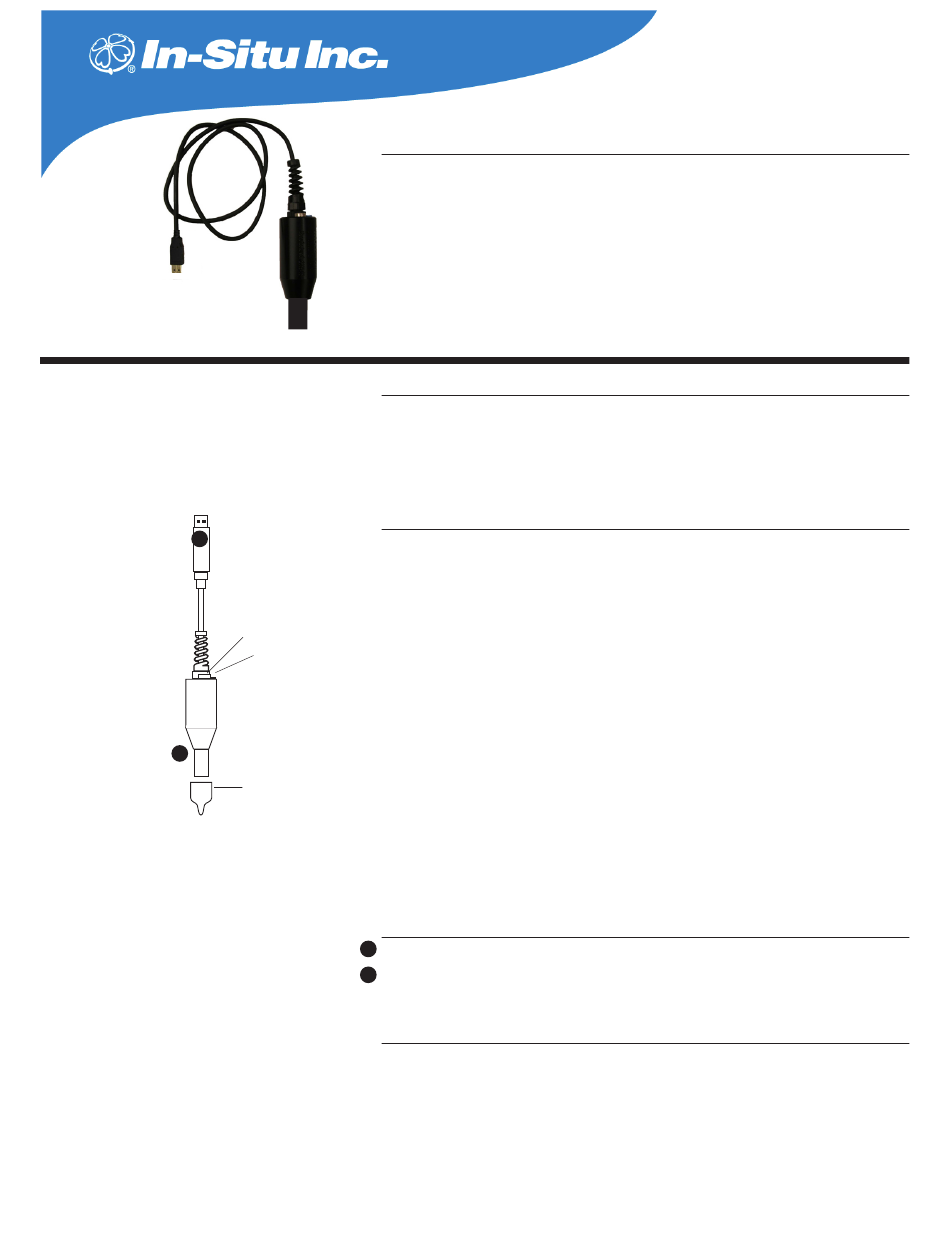

In-situ USB TROLL COM Information Sheet

A
External
power input
Vent
Plastic
B
Female
Connector
Dust cap
AppLiCATiOn
Communication interface between a Level TROLL, Aqua TROLL, or MP TROLL
9500 and a desktop/laptop computer running Microsoft
Includes external power jack and vent with replaceable membrane. Connects
directly to the instrument for indoor use while programming/downloading the device.
phySiCAL DeSCRipTiOn
Materials
Environmental rating
Dimensions
Input
Level TROLL, Aqua TROLL:
MP TROLL 9500:
Output
DC power jack
Compatible DC power plug
External power input
Level TROLL, Aqua TROLL:
MP TROLL 9500:
Cable
Operating temperature
Storage temperature
A
COnneCTiOnS
Connects to a USB port
B
Female connector mates directly with the instrument back end
inSTALLATiOn—hARDwARe
Attach via snap-on connection to the TROLL back end
Level TROLL
Aqua TROLL
MP TROLL
Information Sheet
Catalog No. 0052510
USB TROLL
DiReCT COnneCT
Windows
®
Delrin , nylon, Viton , polyurethane
® ®
Not designed for submersion
3.2 cm (1.25 in) O.D.,16.3 cm (6.4 in) long ,
including strain relief
RS485 Modbus
RS485
USB Type A
2.5 mm
5.5 mm O.D., 2.1 mm I.D., center positive
8 to 36 VDC
16 VDC Maximum
Black polyurethane, 91 cm (3 ft) long
-20°C to 50°C (-4°F to 122°F)
-20°C to 80°C (-4°F to 176°F)
®
®
9500
®
COm
®
2000 or higher.
®
(over)
