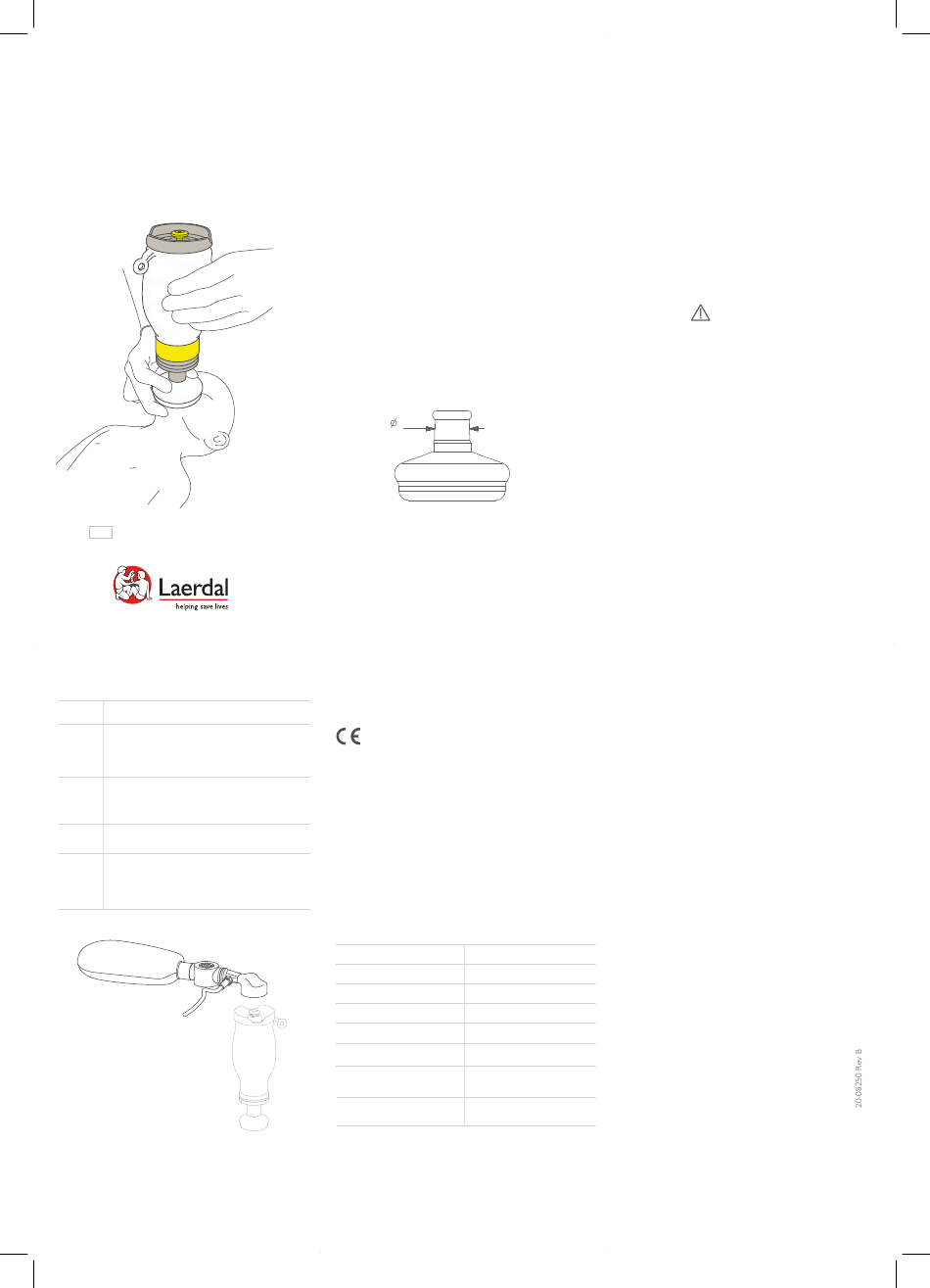

User Guide
Laerdal
Upright Resuscitator
REUSABLE - AUTOCLAVABLE
Includes
Newborn Mask
(Snap design)
Size 0 and Size 1
REF Cat. no. 8560533 QTY 1 each
Accessories and Spare parts Important Product Information
Cat. no Description
856156 Newborn Mask - Snap design – Size 0*
Newborn Mask - Snap design – Size 1*
856157
* 10 pcs
Oxygen kit (Complete) includes Oxygen
8561733
Adaptor, Valve, Reservoir Bag and Tubing
Oxygen Reservoir Bag and Tubing
846131
Upright Valves and Membranes kit*
(Lip Valve, Inlet Valve Disc Membrane)
856155
* 10 pcs
Upright Oxygen kit
(Complete)
User Guide
Intended Use
Laerdal Upright Resuscitator ("Upright") is a self-inflating,
manual, reusable resuscitator intended for newborns and
infants up to 10 kg body mass who require respiratory
support.
Upright can provide supplemental oxygen only when
used with the accessory Oxygen Kit.
Upright may be reused provided reprocessing
procedures (page 2) are followed between each patient
use. It must be cleaned and disinfected before first use.
Using Upright
Orientation: Upright is operated as a normal resuscitator,
with the bag having a vertical stance over the mask.
Newborn Mask - Snap design: The mask fits with
standard 15 mm inner-diameter conical connectors, as
defined by ISO 5356-1. Check fit before use with other
devices. When used with Upright, the mask attaches
with a snap fit when pressed completely into place.
15 mm
Regulatory
0434
This product is in compliance with the essential
requirements of Council Directive 93/42/EEC as
ammended by Council Directive 2007/47/EC.
Technical Information
Meets ISO 10651-4:2002/EN ISO 10651-4:2009,
Lung ventilators – Particular requirements for
operator–powered resuscitators.
Patient port on Newborn Mask Snap design fit
standard 15/22 mm connector.
Operating temperature -18 °C to 50 °C
Storage temperature -40 °C to 60 °C
Expiratory resistance <2.5 cm H
Inspiratory resistance <0.5 cm H
Tidal volume >150 ml
Dead space 4 ml (water volume)
Approximately o
External dimensions
72 mm x 85 mm x 217 mm
(with Newborn Mask size 1)
Mass
Approximately
(with Newborn Mask size 1)
190 grams
Materials
Hard plastic components: Polysulfone (PSU)
Soft plastic components: Silicone rubber
Spring: Stainless stee
Not made with natural rubber latex.
Pressure release valve: Upright has a pressure release
valve ("pop-off") which limits the airway pressure to
30-45 cmH O. A hissing sound can be heard when the
2
valve opens. If higher airway pressure is needed, press
downwards on the valve with the index finger while
squeezing the bag.
Vomitus: If the patient valve becomes contaminated
with vomitus, clear the valve by shaking Upright and
forcefully squeezing the bag to expel the vomitus. If it
does not clear, disassemble the patient valve (see page
2), rinse it in water and then reassemble it.
If any components are loose, tighten or reassemble
the device and test in accordance with page 2.
Warnings
Upright should only be used by persons who have
received sufficient training in its use. Incorrect
operation of the Upright can be hazardous.
Do not use the Upright if you have any reason to be
concerned about its functionality.
For proper function, ensure that Upright components
are not mixed and confused with similar-looking
non-Laerdal components. All Upright components are
marked LAERDAL, as shown on page 2.
Manufacturer Information
Global Warranty: See www.laerdal.com
Manufactured in China for:
Laerdal Medical AS, Tanke Svilandsgate 30
P.O. Box 377, 4002 Stavanger, Norway
Tel : +47 51 51 17 00
Fax: +47 51 52 35 57
Email: laerdal.norway@laerdal.no
O at 5 LPM
2
O at 5 LPM
2
Pending US and international design registration.
Laerdal® is a trademark or registered trademark
of Laerdal Medical AS.
© 2015 Laerdal Medical AS, All rights reserved.
