PASCO Pasport PS-2110 Instruction Sheet

Carbon Dioxide Gas Sensor
.
Included Items
Carbon Dioxide Gas Sensor
Sampling Bottle, Clear, 250 mL
Sensor Extension Cable (PS-2500)
Rubber Stopper
Required Items*
PASCO Interface
PASCO Data Collection Software
*See the PASCO catalog or the PASCO web site at www.pasco.com
for more information.
PS-2110
Sampling
Bottle
Calibration
Button
Rubber
Stopper
Probe
Threaded
Hole
Introduction

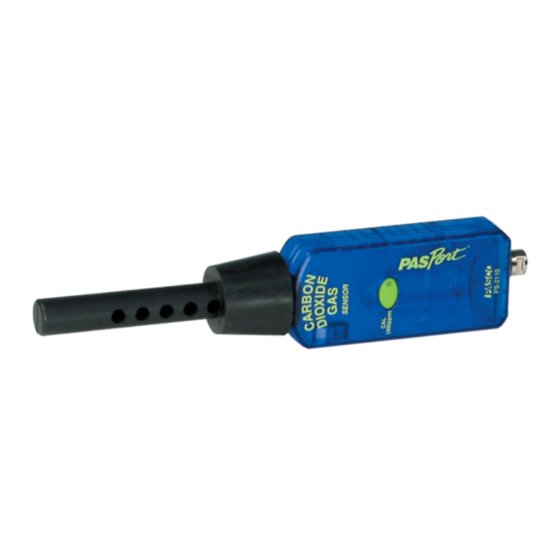

The PS-2110 Carbon Dioxide Gas Sensor measures carbon
dioxide gas concentration in parts per million in gases such
as air. The sensor is designed only for educational purposes
and is not intended for environmental compliance studies.
The sensor is designed to work with a PASPORT-compatible
interface (such as the PS-2100 USB Link) and PASCO data
collection software (such as PASCO Capstone or
SPARKvue) to measure carbon dioxide gas concentration.
The sensor includes a sensor extension cable, a 250 mL clear
plastic sampling bottle, and a stopper that fits over the sen-
sor's probe.
Setup the Carbon Dioxide Gas Sensor
• Plug the Carbon Dioxide Gas Sensor into a PASPORT
input port of a PASCO interface.
Instruction Sh eet
0 1 2 - 1 4 3 3 0 C
Sensor
Extension
Cable
