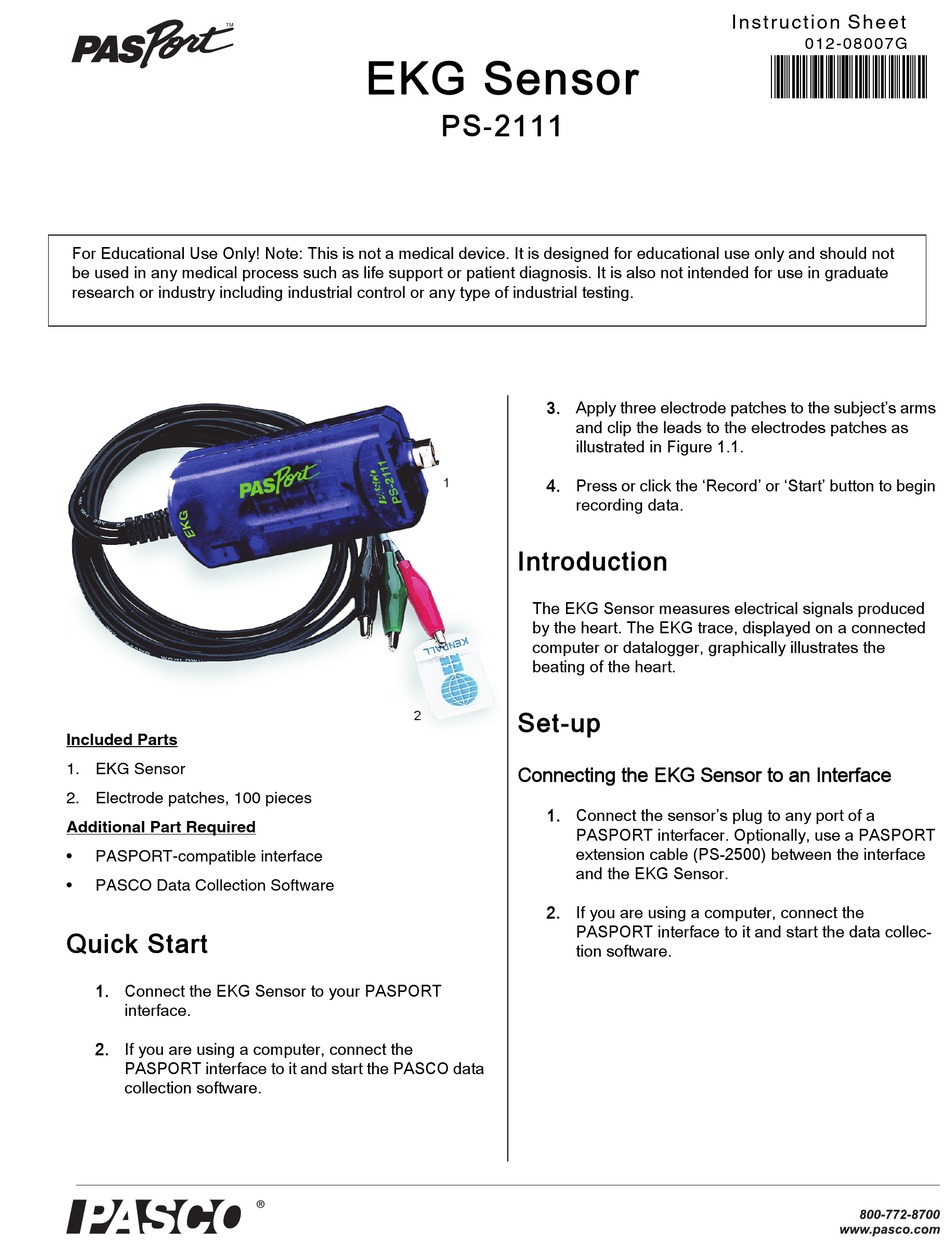

PASCO Pasport PS-2111 Instruction Sheet

For Educational Use Only! Note: This is not a medical device. It is designed for educational use only and should not
be used in any medical process such as life support or patient diagnosis. It is also not intended for use in graduate
research or industry including industrial control or any type of industrial testing.

Included Parts

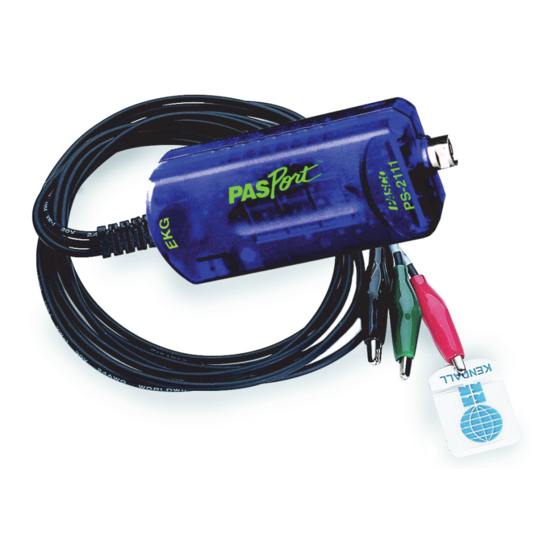

1. EKG Sensor
2. Electrode patches, 100 pieces

Additional Part Required

• PASPORT-compatible interface
• PASCO Data Collection Software

Quick Start

1. Connect the EKG Sensor to your PASPORT
interface.
2. If you are using a computer, connect the
PASPORT interface to it and start the PASCO data
collection software.
EKG Sensor
2
®
PS-2111
3. Apply three electrode patches to the subject's arms
and clip the leads to the electrodes patches as
illustrated in Figure 1.1.
1
4. Press or click the 'Record' or 'Start' button to begin
recording data.

Introduction

The EKG Sensor measures electrical signals produced
by the heart. The EKG trace, displayed on a connected
computer or datalogger, graphically illustrates the
beating of the heart.

Set-up

Connecting the EKG Sensor to an Interface

1. Connect the sensor's plug to any port of a
PASPORT interfacer. Optionally, use a PASPORT
extension cable (PS-2500) between the interface
and the EKG Sensor.
2. If you are using a computer, connect the
PASPORT interface to it and start the data collec-
tion software.
Instruction Sheet
012-08007G
*012-08800
