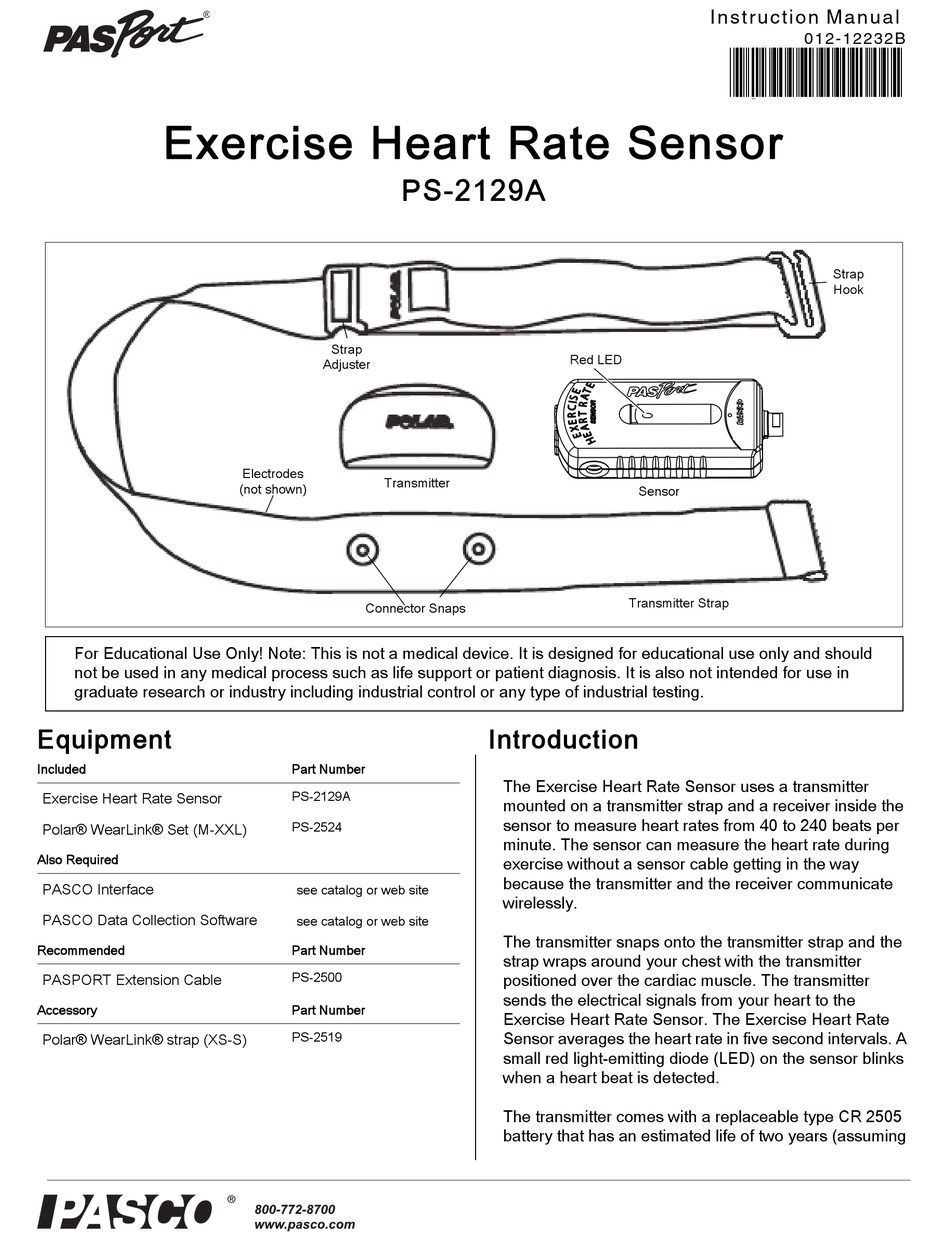

Exercise Heart Rate Sensor
For Educational Use Only! Note: This is not a medical device. It is designed for educational use only and should
not be used in any medical process such as life support or patient diagnosis. It is also not intended for use in
graduate research or industry including industrial control or any type of industrial testing.
Equipment
Included
Exercise Heart Rate Sensor
Polar® WearLink® Set (M-XXL)
Also Required
PASCO Interface
PASCO Data Collection Software
Recommended
PASPORT Extension Cable
Accessory
Polar® WearLink® strap (XS-S)
PS-2129A
Strap
Adjuster
Electrodes
Transmitter
(not shown)
Connector Snaps
Part Number
PS-2129A
PS-2524
see catalog or web site
see catalog or web site
Part Number
PS-2500
Part Number
PS-2519
®
Red LED
Sensor
Transmitter Strap
Introduction

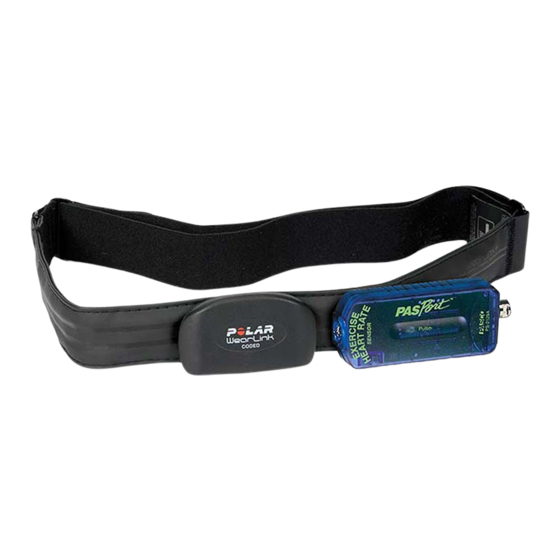

The Exercise Heart Rate Sensor uses a transmitter
mounted on a transmitter strap and a receiver inside the
sensor to measure heart rates from 40 to 240 beats per
minute. The sensor can measure the heart rate during
exercise without a sensor cable getting in the way
because the transmitter and the receiver communicate
wirelessly.
The transmitter snaps onto the transmitter strap and the
strap wraps around your chest with the transmitter
positioned over the cardiac muscle. The transmitter
sends the electrical signals from your heart to the
Exercise Heart Rate Sensor. The Exercise Heart Rate
Sensor averages the heart rate in five second intervals. A
small red light-emitting diode (LED) on the sensor blinks
when a heart beat is detected.
The transmitter comes with a replaceable type CR 2505
battery that has an estimated life of two years (assuming
Instruction Manual
012-12232B
*012-12232*
Strap
Hook
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO PASPort PS-2129A
Summary of Contents for PASCO PASPort PS-2129A
- Page 1 PASCO Interface see catalog or web site wirelessly. PASCO Data Collection Software see catalog or web site The transmitter snaps onto the transmitter strap and the Recommended Part Number strap wraps around your chest with the transmitter positioned over the cardiac muscle.
-
Page 2: Operation
See the Online Help for the PASCO Data Collection Software for information about collecting and analyzing data. • Connect the Exercise Heart Rate Sensor to your PASCO interface. (NOTE: You may want to connect the sensor to a PASPORT Extension Cable (PS-2500) before connecting it to the interface.) ®... -
Page 3: Care And Maintenance
T i p s f o r U s i n g t h e E x e r c i s e H e a r t R a t e Se n s o r P S - 2 1 2 9 A •... - Page 4 T i p s f o r U s i n g t h e E x e r c i s e H e a r t R a t e S e n s o r E x e r c i s e H e a r t R a t e S e n s o r Battery To change the battery, follow these steps.
-
Page 5: Sensor Specifications
T i p s f o r U s i n g t h e E x e r c i s e H e a r t R a t e Se n s o r P S - 2 1 2 9 A Experiment Suggestions •... -
Page 6: Technical Support
PASCO scientific warrants the product to be free from defects in materials and workmanship for a period of one year from the date of shipment to the customer. PASCO will repair or replace, at its option, any part of the Before you call PASCO technical support, have the product, which is deemed to be defective in material or workmanship.
